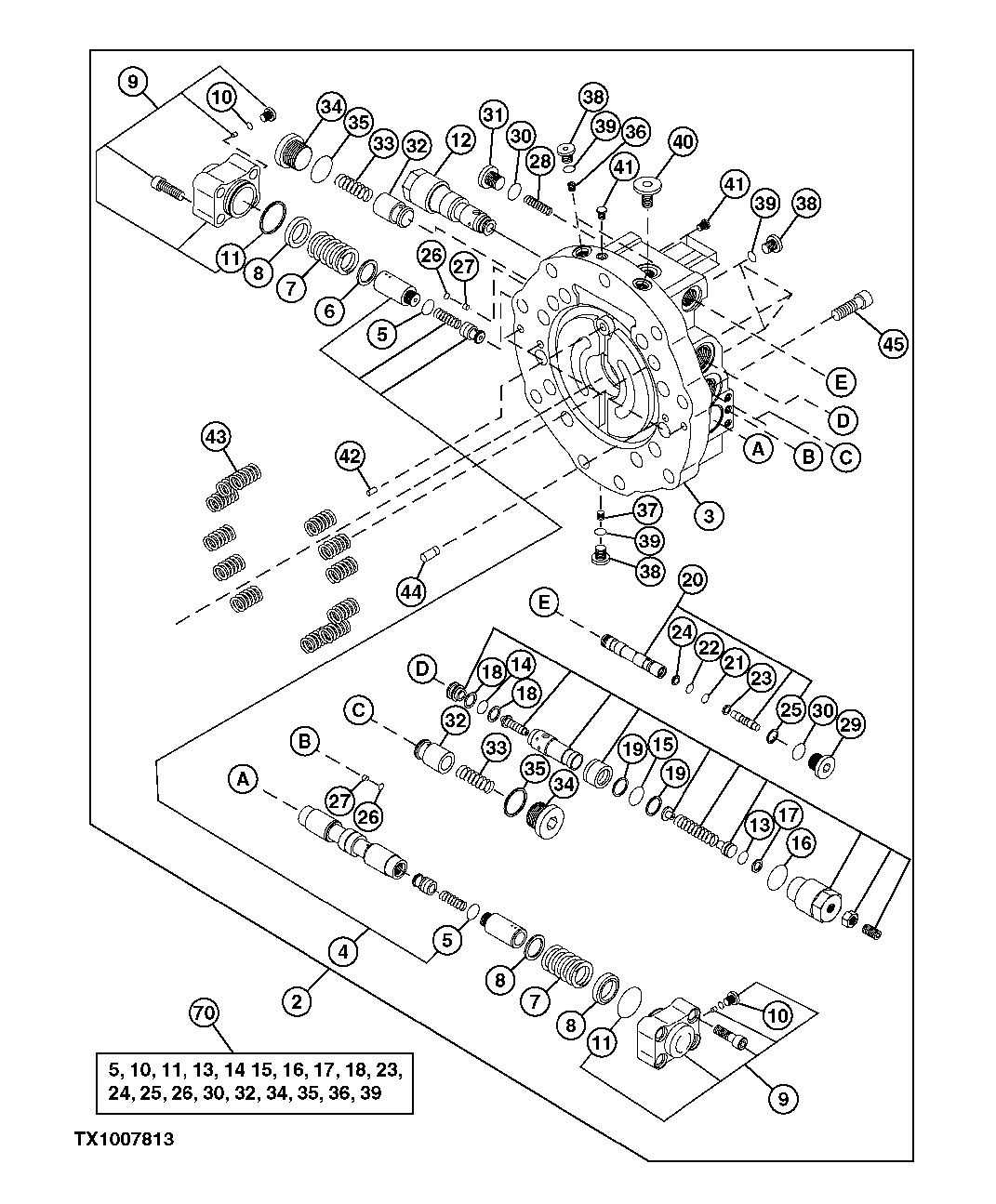

Запчасти John Deere 00C LC 16 - PROPEL MOTOR COMPONENTS 0260 AXLES, DIFF. AND SUSP. SYS. HYD. (INCL. FWD)

2

4481829EX

Hydraulic Motor Reman

(REMAN) INCLUDES ALL PARTS ON THIS PAGE AND PRECEDING PAGES

1шт.

3

Plate

1шт.

4

Spool Valve

1шт.

5

O-Ring

2шт.

6

0163601

Plate

(SUB FOR AT132163)

2шт.

7

0420002

Spring

(SUB FOR AT201568)

2шт.

8

0809601

Spring

(SUB FOR TH0809601)

2шт.

9

0809602

Cap

2шт.

10

O-Ring

1шт.

11

O-Ring

1шт.

12

0806602

Pressure Relief Valve

2шт.

13

O-Ring

1шт.

14

O-Ring

1шт.

15

O-Ring

1шт.

16

O-Ring

1шт.

17

Piston Ring

1шт.

18

Piston Ring

2шт.

19

Piston Ring

2шт.

20

Valve

1шт.

21

O-Ring

1шт.

22

O-Ring

1шт.

23

Back-Up Ring

1шт.

24

Back-Up Ring

1шт.

25

Snap Ring

1шт.

26

CH11568

Packing

2шт.

27

Orifice

2шт.

28

0820203

Spring

(SUB FOR TH0820203)

1шт.

29

0671002

Fitting Plug

(SUB FOR AT218063)

1шт.

30

4506418

O-Ring

(SUB FOR U46489)

2шт.

31

0820204

Pipe Plug

(SUB FOR TH0820204)

1шт.

32

0352304

Check Valve

(SUB FOR AT132269)

2шт.

33

0352305

Spring

(SUB FOR AT132270)

2шт.

34

0352306

Plug

(SUB FOR AT132271)

2шт.

35

TH101926

O-Ring

2шт.

36

Orifice

2шт.

37

Orifice

1шт.

38

0436608

Fitting Plug

(SUB FOR AT218054)

6шт.

39

M800650

Packing

6шт.

40

Plug

1шт.

41

Plug

7шт.

42

0682803

Pin

(SUB FOR TH0682803)

1шт.

43

0809604

Spring

(SUB FOR TH0809604)

10шт.

44

0251319

Pin

(SUB FOR AT127988)

4шт.

45

0168008

Bolt

9шт.

70

0809515

Seal Kit

(ADDITIONAL PARTS ON PREVIOUS PAGE)

1шт.

71

0806801

Plate

(PLATE ASSEMBLY) (INCLUDES KEYS 3, 5, 20, 27, 36, 37, 41) (NOT ILLUSTRATED)

1шт.
