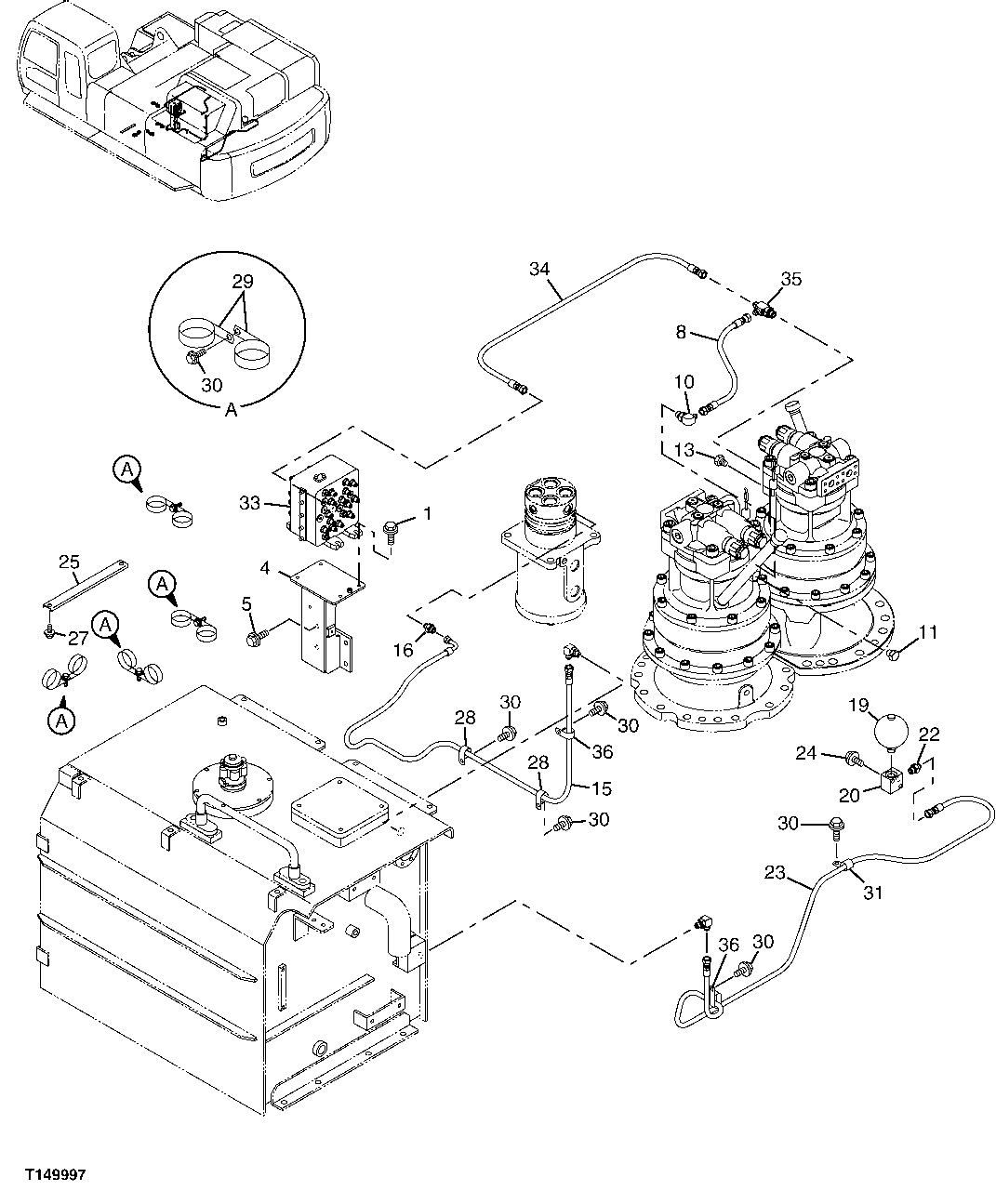

Запчасти John Deere 00C LC 227 - PILOT HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

1

19M7358

Cap Screw

M10 X 40

4шт.

12M7066

Lock Washer

10 mm

4шт.

4

7040508

Bracket

1шт.

5

19M8011

Cap Screw

M12 X 30

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

8

4451816

Hydraulic Hose

1шт.

10

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

1шт.

M800650

Packing

1шт.

11

A852122

Adapter Fitting

SUB FOR P67968

1шт.

M800650

Packing

1шт.

13

A885002

Plug

1шт.

M800650

Packing

1шт.

15

4455444

Hydraulic Hose

1шт.

16

A852133

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

19

FYA00025723

Hydraulic Accumulator

SUB FOR AT162984 OR 4195978

1шт.

CH14634

O-Ring

1шт.

20

3036998

Manifold

SUB FOR AT126122

1шт.

22

A852123

Adapter Fitting

1шт.

M800650

Packing

1шт.

23

4453229

Hydraulic Hose

1шт.

24

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

25

4425177

Channel

SUB FOR TH4425177

1шт.

27

19M7402

Cap Screw

M10 X 25

2шт.

12M7028

Lock Washer

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

28

AT121321

Hose Clamp

2шт.

29

N198631

Clamp

SUB FOR TH109598 OR 4190265

8шт.

30

19M7402

Cap Screw

M10 X 25

9шт.

12M7066

Lock Washer

10 mm

9шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

9шт.

31

R73384

Clamp

SUB FOR TH108597 OR 4190253

1шт.

33

4470661

Flow Control Hyd. Valve

1шт.

34

4469375

Hydraulic Hose

1шт.

35

4219346

Tee Fitting

SUB FOR AT132516

1шт.

M800650

Packing

1шт.

36

T32854

Clamp

2шт.
