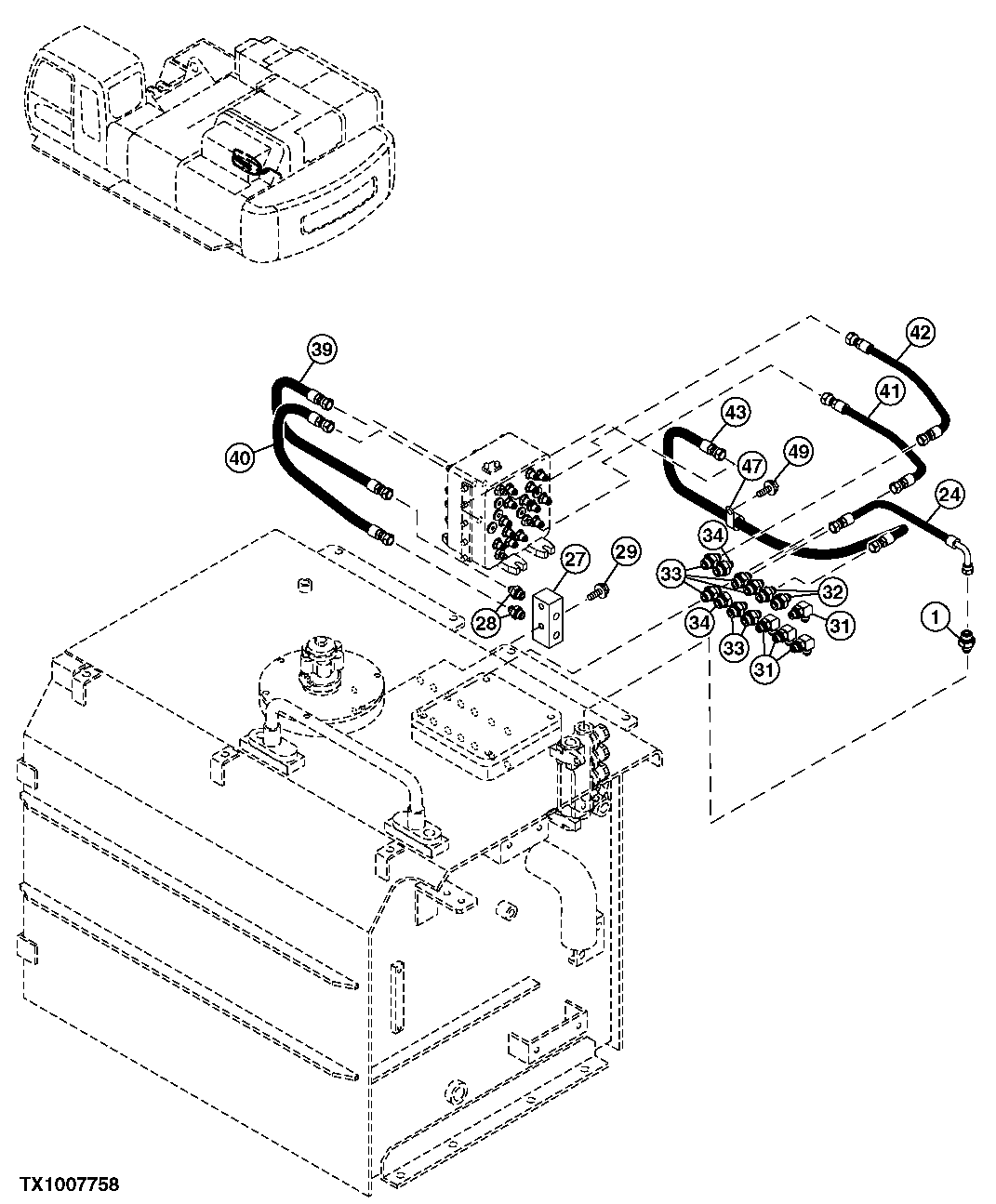

Запчасти John Deere 00C LC 225 - PILOT HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

1

A852122

Adapter Fitting

(SUB FOR P67968)

1шт.

M800650

Packing

1шт.

24

4452041

Hydraulic Hose

1шт.

27

3090109

Manifold

(SUB FOR TH3090109)

1шт.

28

A852123

Adapter Fitting

2шт.

M800650

Packing

1шт.

29

19M8499

Cap Screw

M10 X 60

2шт.

12M7066

Lock Washer

10 mm

2шт.

31

A852333

Elbow Fitting

(SUB FOR P67989)

4шт.

CH11570

O-Ring

1шт.

32

A852133

Adapter Fitting

2шт.

CH11570

O-Ring

1шт.

33

A852122

Adapter Fitting

(SUB FOR P67968)

6шт.

M800650

Packing

1шт.

34

A885002

Plug

2шт.

M800650

Packing

1шт.

39

4454901

Hydraulic Hose

1шт.

40

4455439

Hydraulic Hose

1шт.

41

4455440

Hydraulic Hose

1шт.

42

4455441

Hydraulic Hose

1шт.

43

4455442

Hydraulic Hose

1шт.

47

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

1шт.

49

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.
