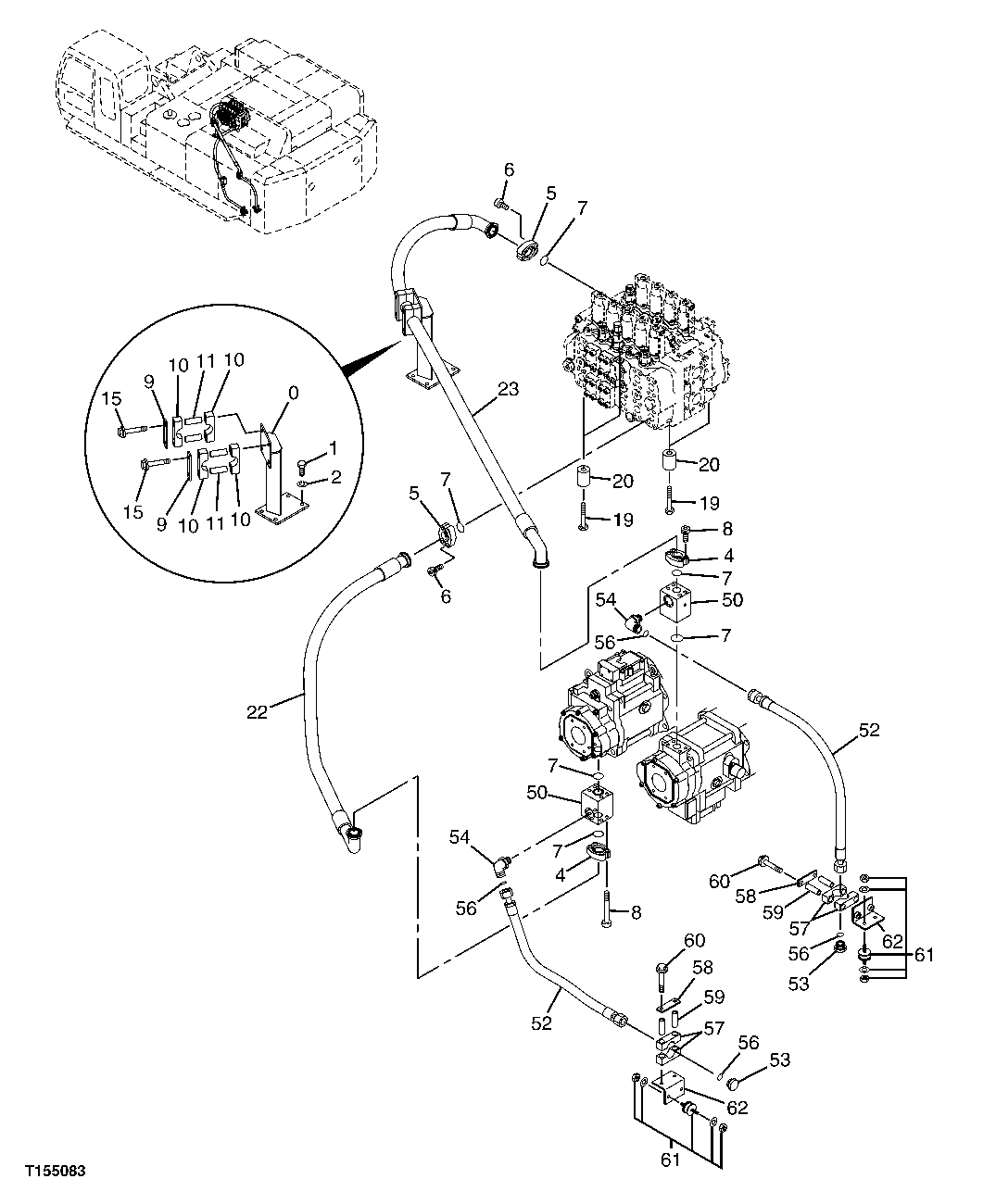

Запчасти John Deere 00C LC 216 - DELIVERY HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

0

8083130

Bracket

1шт.

1

19M7493

Cap Screw

M12 X 40

4шт.

2

12H301

Lock Washer

1/2"

4шт.

4

4075853

Flange Fitting

SUB FOR TH4075853

4шт.

5

AT131685

Flange Fitting

4шт.

6

19M8734

Screw

M14 X 45

8шт.

7

T72216

O-Ring

4шт.

8

M341204

Bolt

SUB FOR AT132272

8шт.

9

4207038

Strap

SUB FOR AT131811

2шт.

10

4207036

Clamp

SUB FOR AT131809

4шт.

11

4215879

Spacer

SUB FOR 4207037 OR AT131810

4шт.

15

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

19

19M7883

Screw

M20 X 120

4шт.

20

4404273

Spacer

SUB FOR TH4404273

4шт.

22

4460094

Hydraulic Hose

1шт.

23

4450082

Hydraulic Hose

1шт.

50

2046563

Junction Block

2шт.

52

4715621

Hose

SUB FOR 4286814 OR 4648033

2шт.

53

4210056

Plug

SUB FOR AT202300

2шт.

54

A853388

Elbow Fitting

SUB FOR TH108325 OR 4198799

2шт.

TH101926

O-Ring

1шт.

56

T76938

O-Ring

4шт.

57

4349621

Hose Clamp

SUB FOR AT170625

4шт.

58

4341803

Plate

SUB FOR AT201827

2шт.

59

4215879

Spacer

SUB FOR AT170626 AND 4349648

4шт.

60

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

61

4354592

Isolator

SUB FOR AT216977

4шт.

62

9747606

Bracket

SUB FOR AT217041

2шт.
