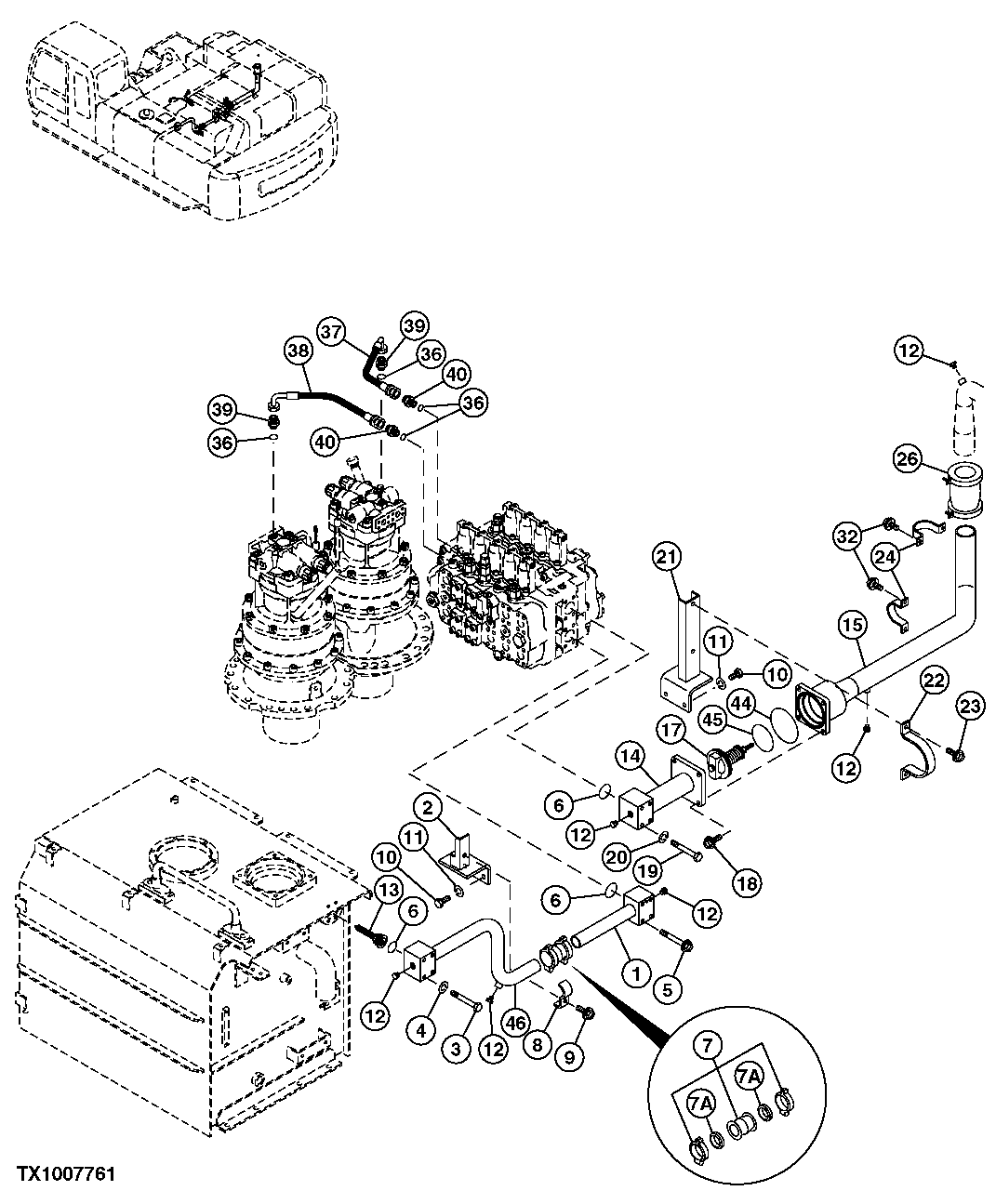

Запчасти John Deere 00C LC 215 - RETURN HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

1

8083947

Oil Line

1шт.

2

9756553

Bracket

1шт.

3

19M7908

Cap Screw

M12 X 110 SUB FOR J921202

4шт.

4

12H301

Lock Washer

1/2"

4шт.

5

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

6

TH105683

O-Ring

3шт.

7

4067834

Coupling

SUB FOR TH102945

1шт.

7A

4196260

Seal

NLA, ORDER 4067834

2шт.

8

4053697

Clamp

SUB FOR TH101030

1шт.

9

19M7753

Cap Screw

M12 X 70

1шт.

12H301

Lock Washer

1/2"

1шт.

10

19M7404

Cap Screw

M14 X 40

4шт.

11

12H317

Lock Washer

9/16"

4шт.

12

4093624

Drain Plug

SUB FOR AT318013 OR TH102536

6шт.

M800650

Packing

1шт.

13

4453609

Flow Control Hyd. Valve

1шт.

14

8083975

Oil Line

1шт.

15

7040504

Oil Line

1шт.

17

4433092

Flow Control Hyd. Valve

1шт.

18

19M7493

Cap Screw

M12 X 40

4шт.

12H301

Lock Washer

1/2"

4шт.

19

19M7914

Cap Screw

M12 X 120 SUB FOR J901204

4шт.

20

12H301

Lock Washer

1/2"

4шт.

21

9756223

Bracket

1шт.

22

4246954

Clamp

SUB FOR AT202105

1шт.

23

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.

24

4000909

Clamp

SUB FOR TH101935

2шт.

26

4071215

Coupling

SUB FOR FXV00000007 AND TH101898

1шт.

26A

Seal

SUB TO FXV00000007, 4196267 NLA

2шт.

32

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

36

T77858

O-Ring

4шт.

37

AT200722

Hydraulic Hose

1шт.

38

4300369

Hose

SUB FOR AT173776

1шт.

39

A853166

Adapter Fitting

SUB FOR AT107392 OR 4189619

2шт.

AT318035

O-Ring

SUB FOR 4506424

1шт.

40

AT318016

Adapter Fitting

SUB FOR 4189537 OR TH110496

2шт.

TH101926

O-Ring

1шт.

44

TH104589

O-Ring

1шт.

45

4154331

O-Ring

SUB FOR TH4154331

1шт.

46

8083946

Oil Line

1шт.
