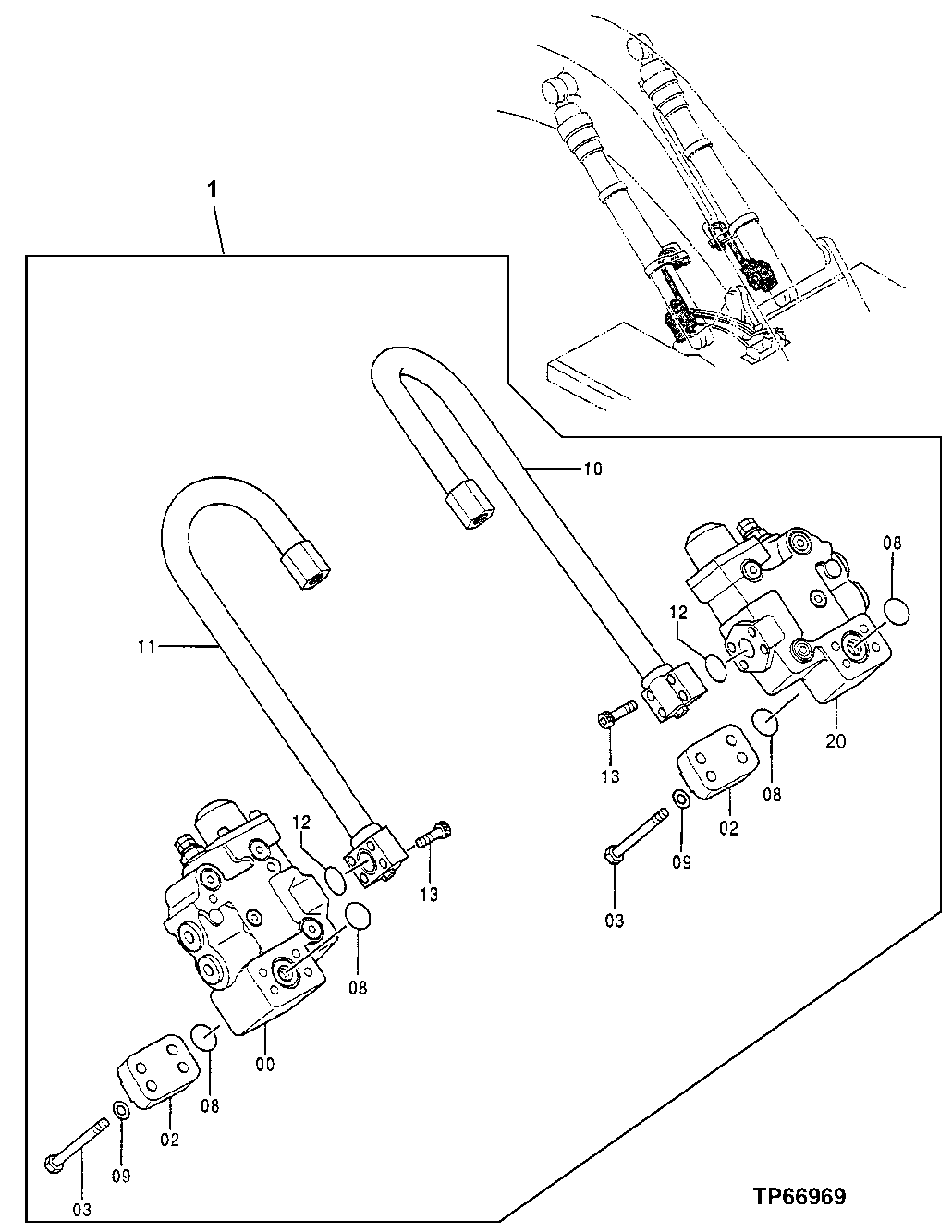

Запчасти John Deere 00C LC 210 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3362 CONTROL AND LOAD HOLDING VALVES

1

Kit

( AT188669 NLA) Whole Goods (BOOM CYLIN DER LOAD LOWERING VALVE) (CONTAINS ALL I TEMS ON THIS PAGE - ADDITIONAL COMPONENT S LISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

2

3048563

Cover

(SUB FOR AT175127)

2шт.

3

M341202

Bolt

(SUB FOR AT175128)

8шт.

8

AT264324

O-Ring

(SUB FOR TH100044)

4шт.

9

4086891

Washer

13 X 26 X 3.200 mm (0.512" X 1.0 24" X 0.126") (SUB FOR TH104166)

8шт.

10

Oil Line

(4359511 NLA) (SUB FOR TH435951 1 ) (ORDER 4645275 AND 19M8395)

1шт.

4645275

Line

1шт.

11

Oil Line

(4359512 NLA) (SUB FOR TH435951 2 ) (ORDER 4645276 AND 19M8395)

1шт.

4645276

Pipe Bushing

1шт.

12

AT264348

O-Ring

(SUB FOR TH102788)

2шт.

13

19M8444

Screw

M12 X 60 (USE WITH 4359511 AND 4359512)

8шт.

19M8395

Screw

M12 X 40 (USE WITH 4645275 AND 4645276)

8шт.

20

4473857

Flow Control Hyd. Valve

(SUB FOR 4358534)

2шт.
