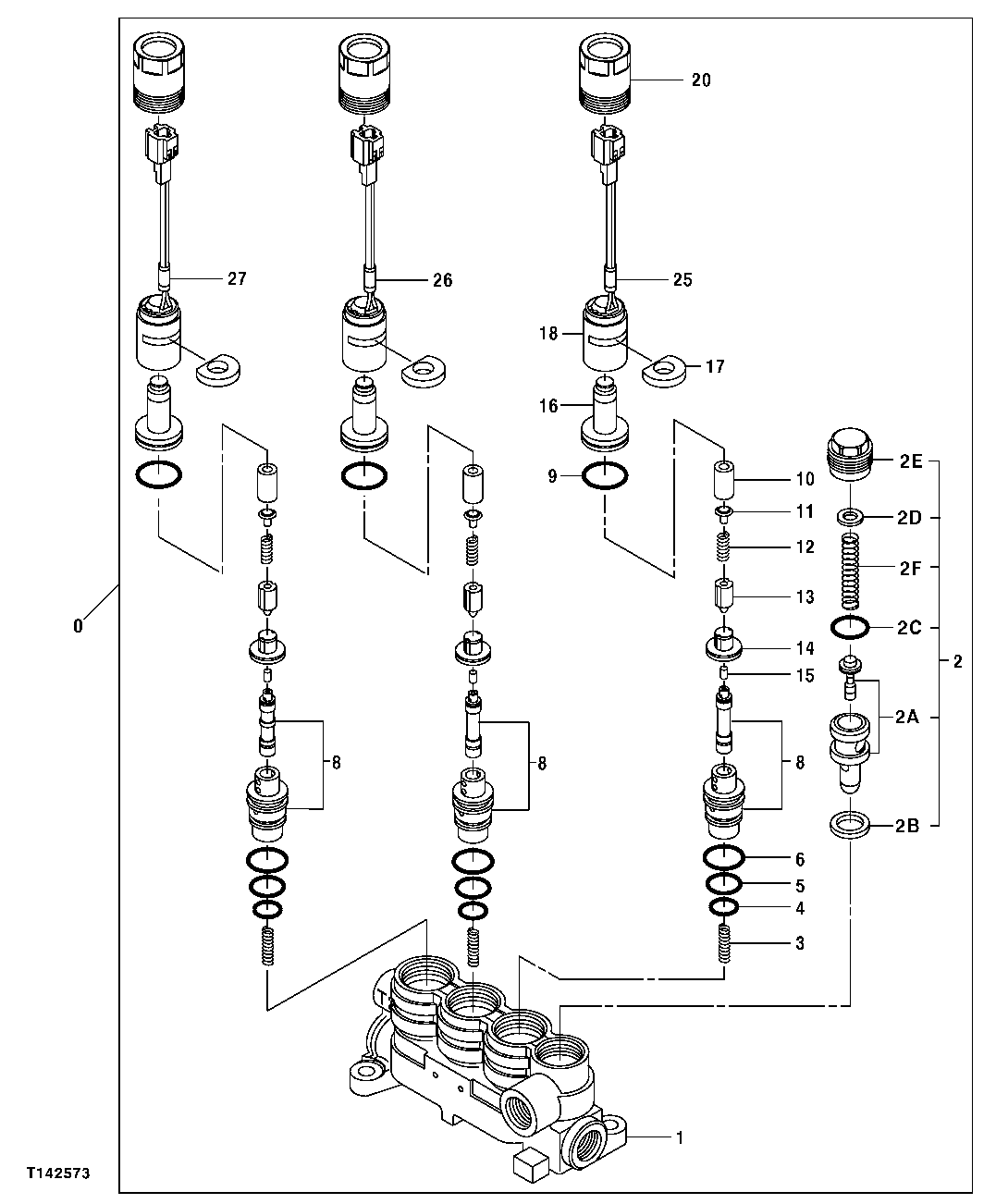

Запчасти John Deere 00C LC 199 - SOLENOID VALVE COMPONENTS 3362 CONTROL AND LOAD HOLDING VALVES

0

4436197

Solenoid Valve

(SUB FOR TH4436197)

1шт.

1

Housing

(TH109249 NLA)

1шт.

2

Relief Valve

(TH109250 NLA)

1шт.

2A

Relief Valve

(TH1092451 NLA)

1шт.

2B

4487648

Gasket

(SUB FOR TH109252 OR 0308704)

1шт.

2C

4487138

O-Ring

(SUB FOR TH109253 OR 0308705)

1шт.

2D

Shim

(TH109254 NLA)

1шт.

Shim

(TH109255 NLA)

1шт.

Washer

(TH109256 NLA)

1шт.

2E

Fitting

(TH109257 NLA)

1шт.

2F

0308710

Spring

(SUB FOR TH109258)

1шт.

3

0308711

Spring

(SUB FOR TH109259)

3шт.

4

CH11570

O-Ring

3шт.

5

985099

O-Ring

(SUB FOR TH101479)

3шт.

6

AT264333

O-Ring

(SUB FOR TH100096)

3шт.

8

Valve Spool

(TH109260 NLA)

3шт.

9

0308713

O-Ring

(SUB FOR TH109261)

3шт.

10

Pipe

(0397601 NLA) (SUB FOR AT201974)

3шт.

4488303

Line

3шт.

11

Valve Seat

(SUB FOR AT201981)( 0433302 NLA)

1шт.

4488306

Valve Seat

1шт.

12

4488310

Spring

(SUB FOR TH109264 OR 0308716)

3шт.

13

3096332

Plunger

(SUB FOR TH109265 OR 0308717)

3шт.

14

0397602

Stop

(SUB FOR AT201975)

3шт.

15

4488302

Rod

(SUB FOR 0308719 ) (SUB FOR TH109267)

3шт.

16

0397603

Housing

(SUB FOR AT217058)

3шт.

17

4488304

Spacer

(SUB FOR TH109269 OR 0308721)

3шт.

18

0451501

Solenoid

(SUB FOR AT201642)

3шт.

20

0308724

Screw

(SUB FOR TH109272)

3шт.

25

Tape

(TH109273 NLA)

1шт.

26

Tape

(TH109274 NLA)

1шт.

27

Tape

(TH109275 NLA)

1шт.
