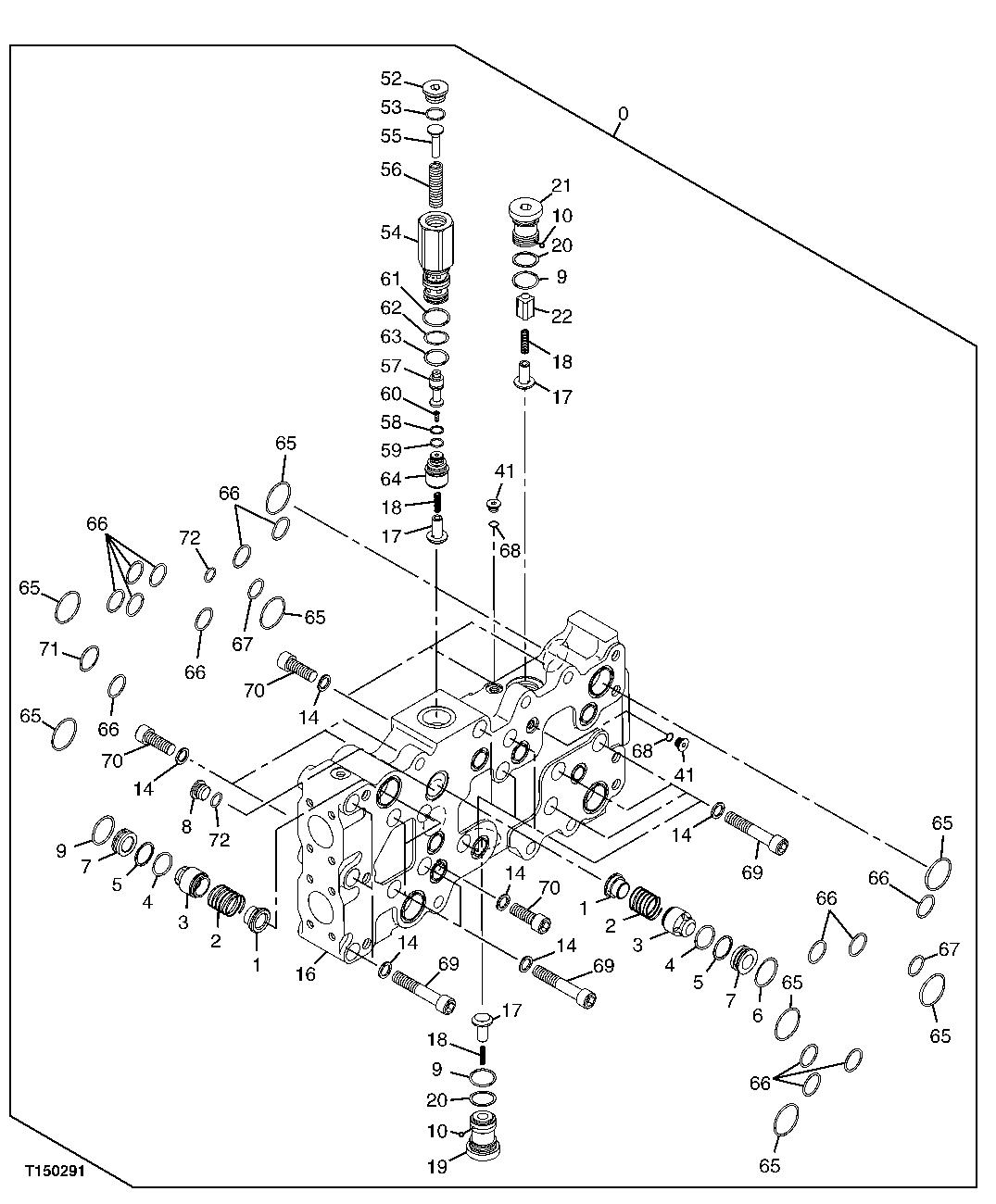

Запчасти John Deere 00C LC 193 - CONTROL VALVE (MANIFOLD) 3362 CONTROL AND LOAD HOLDING VALVES

0

4444992

Hyd Actuated Control Valve

Additional Components Listed O n Previous and Following Pages

1шт.

1

0622851

Plate

(SUB FOR AT202035)

2шт.

2

0622852

Spring

(SUB FOR AT202036)

2шт.

3

0622853

Check Valve

2шт.

4

0818204

O-Ring

(SUB FOR AT202088 ) (SUB FOR 415 3110, OR 0818009THIS APPLICATION)

2шт.

5

4019414

Back-Up Ring

(SUB FOR AT202076)

2шт.

6

4292942

O-Ring

(SUB FOR AT202089 ) (SUB FOR 4153534, THIS APPLIC OR 0818205ATION, 0818010)

2шт.

7

0622854

Seat

(SUB FOR AT202038)

2шт.

8

0622822

Cap

(SUB FOR AT202006)

1шт.

9

4088425

O-Ring

(SUB FOR AT202080)

2шт.

10

0189803

Ball

(SUB FOR AT203704)

2шт.

14

0189908

Washer

(SUB FOR AT217052)

21шт.

16

Manifold

1шт.

17

0622829

Check Valve

3шт.

18

0622827

Spring

(SUB FOR AT202011)

3шт.

19

0622825

Cap

(SUB FOR AT202009)

1шт.

20

0223104

Back-Up Ring

(SUB FOR AT217055)

2шт.

21

0818201

Cap

1шт.

22

0622848

Check Valve

1шт.

41

0622810

Cap

(SUB FOR AT201994)

2шт.

52

0453932

Fitting Plug

(SUB FOR AT203777)

1шт.

53

4138931

O-Ring

1шт.

54

0818202

Sleeve

1шт.

55

0622831

Guide

(SUB FOR AT202015)

1шт.

56

0622830

Spring

(SUB FOR AT202014)

1шт.

57

0810602

Spool Valve

1шт.

58

4040814

Back-Up Ring

(SUB FOR TH105938)

1шт.

59

T111819

O-Ring

1шт.

60

0622835

Piston

(SUB FOR AT202019)

1шт.

61

0810603

O-Ring

1шт.

62

4044839

Back-Up Ring

(SUB FOR TH103457)

1шт.

63

AT264347

O-Ring

(SUB FOR 4506428)

1шт.

64

0810604

Sleeve

1шт.

65

4292386

O-Ring

(SUB FOR AT202090 ) (SUB FOR 4153535, THIS APPLIC OR 0818203ATION, 0818006)

8шт.

66

4366528

O-Ring

(SUB FOR 4153108 ) (SUB FOR 0818007, THIS APPLICATION)

14шт.

67

T59014

O-Ring

2шт.

68

0212416

O-Ring

(SUB FOR TH100198)

2шт.

69

19M8342

Screw

M16 X 90

14шт.

70

0212405

Bolt

7шт.

71

0223109

O-Ring

(SUB FOR AT217056)

1шт.

72

4366521

O-Ring

(SUB FOR TH109041 ) (SUB FOR 415 3098, OR 0818008THIS APPLICATION)

2шт.
