Запчасти John Deere 00C LC 192 - CONTROL VALVE (4 SPOOL SIDE SECTION) 3362 CONTROL AND LOAD HOLDING VALVES

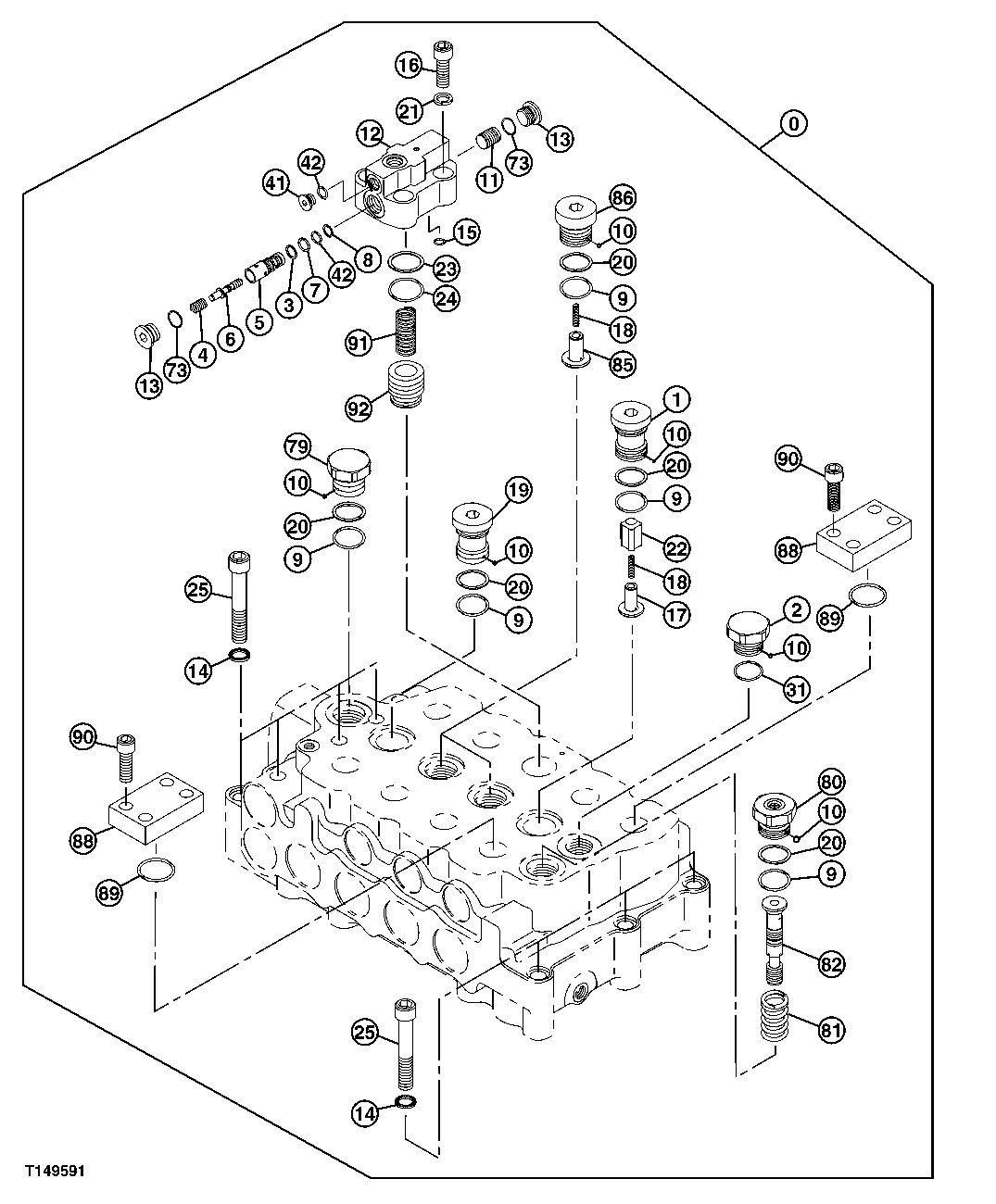

Схема запчастей John Deere 00C LC - 192 - CONTROL VALVE (4 SPOOL SIDE SECTION) 3362 CONTROL AND LOAD HOLDING VALVES

Артикул

Название

Примечание

Количество

0

4444992

Hyd Actuated Control Valve

Additional Components Listed O n Previous and Following Pages

1шт.

1

0622850

Cap

(SUB FOR AT202034)

1шт.

2

0818102

Cap

(SUB FOR TH0818102)

1шт.

3

4040813

Back-Up Ring

(SUB FOR TH110449)

1шт.

4

0622863

Spring

(SUB FOR AT202047)

1шт.

5

0622866

Sleeve

(SUB FOR AT202050)

1шт.

6

0622864

Poppet

(SUB FOR AT202048)

1шт.

7

4140470

O-Ring

(SUB FOR TH109089)

1шт.

8

4092265

Back-Up Ring

(SUB FOR TH102598)

1шт.

9

4088425

O-Ring

(SUB FOR AT202080)

6шт.

10

0189803

Ball

(SUB FOR AT203704)

7шт.

11

0622867

Piston

(SUB FOR AT202051)

1шт.

12

0809802

Cover

(SUB FOR TH0809802)

1шт.

13

0622822

Cap

(SUB FOR AT202006)

2шт.

14

0189908

Washer

(SUB FOR AT217052)

7шт.

15

CH17167

O-Ring

1шт.

16

M341440

Screw

(SUB FOR AT201961)

4шт.

17

0622829

Check Valve

1шт.

18

0622827

Spring

(SUB FOR AT202011)

3шт.

19

0622825

Cap

(SUB FOR AT202009)

1шт.

20

0223104

Back-Up Ring

(SUB FOR AT217055)

6шт.

21

0622865

Washer

(SUB FOR AT202049)

4шт.

22

0622848

Check Valve

1шт.

23

4138942

Back-Up Ring

(SUB FOR AT217083)

1шт.

24

AT264324

O-Ring

(SUB FOR TH100044)

1шт.

25

19M8564

Screw

M16 X 110

7шт.

31

0624703

O-Ring

(SUB FOR TH0624703)

1шт.

41

0622810

Cap

(SUB FOR AT201994)

1шт.

42

M800650

Packing

2шт.

73

4506418

O-Ring

(SUB FOR U46489)

2шт.

79

0622870

Cap

(SUB FOR AT202054)

1шт.

80

0622846

Cap

(SUB FOR AT202030)

1шт.

81

0622845

Spring

(SUB FOR AT202029)

1шт.

82

0818101

Spool Valve

(SUB FOR TH0818101)

1шт.

85

0705401

Check Valve

2шт.

86

0703701

Fitting Plug

(SUB FOR AT217064)

2шт.

88

0622858

Flange

(SUB FOR AT202042)

2шт.

89

0197011

O-Ring

(SUB FOR AT217054)

2шт.

90

19M8734

Screw

M14 X 45

8шт.

91

0622856

Spring

(SUB FOR AT202040)

1шт.

92

0622855

Poppet

(SUB FOR AT202039)

1шт.

Выбрано товаров: 41
