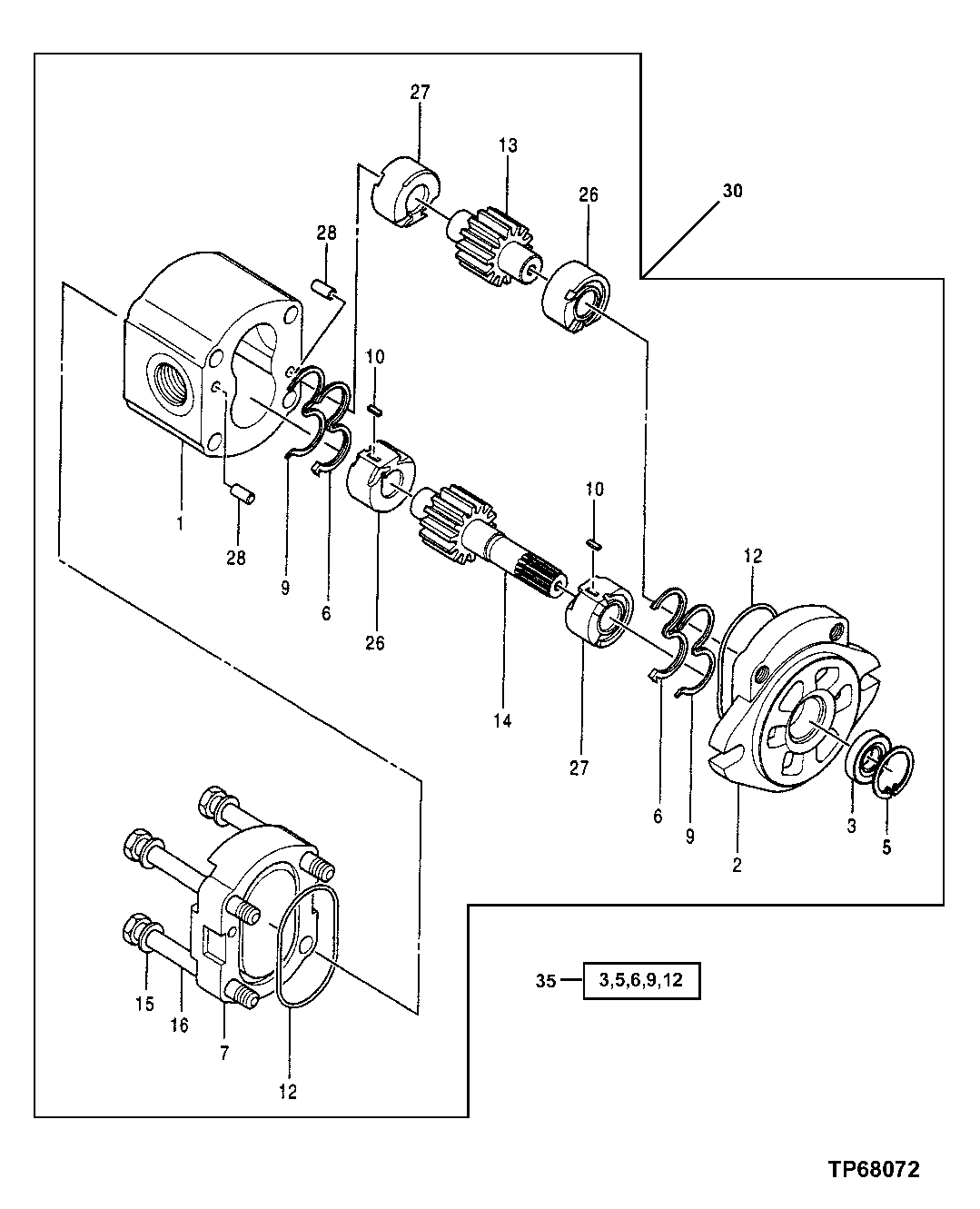

Запчасти John Deere 00C LC 189 - PUMP, GEAR 3361 HYDRAULIC PUMP

1

Housing

1шт.

2

Flange

(TH109916 NLA)

1шт.

3

0408202

Seal

1шт.

5

40M1855

Snap Ring

1шт.

6

Seal

(TH109918 NLA) (ORDER 4487340)

2шт.

7

Cover

(TH109919 NLA)

1шт.

9

Back-Up Ring

(TH109920 NLA) (ORDER 4487340)

2шт.

10

4206162

Key

(SUB FOR TH109921)

2шт.

12

4488720

O-Ring

(SUB FOR 4206163, TH109922, A T153835, 0354608 OR TH0354608)

2шт.

13

Gear

1шт.

14

Gear

1шт.

15

0266736

Washer

(SUB FOR TH105196)

4шт.

16

19M8093

Cap Screw

M10 X 100

4шт.

26

Bushing

2шт.

27

Bushing

2шт.

28

4206166

Dowel Pin

(SUB FOR TH109925)

2шт.

30

9217993

Pump

(SUB FOR 4181700)

1шт.

35

4487340

Seal Kit

(SUB FOR AT153885 OR 0408207)

1шт.
