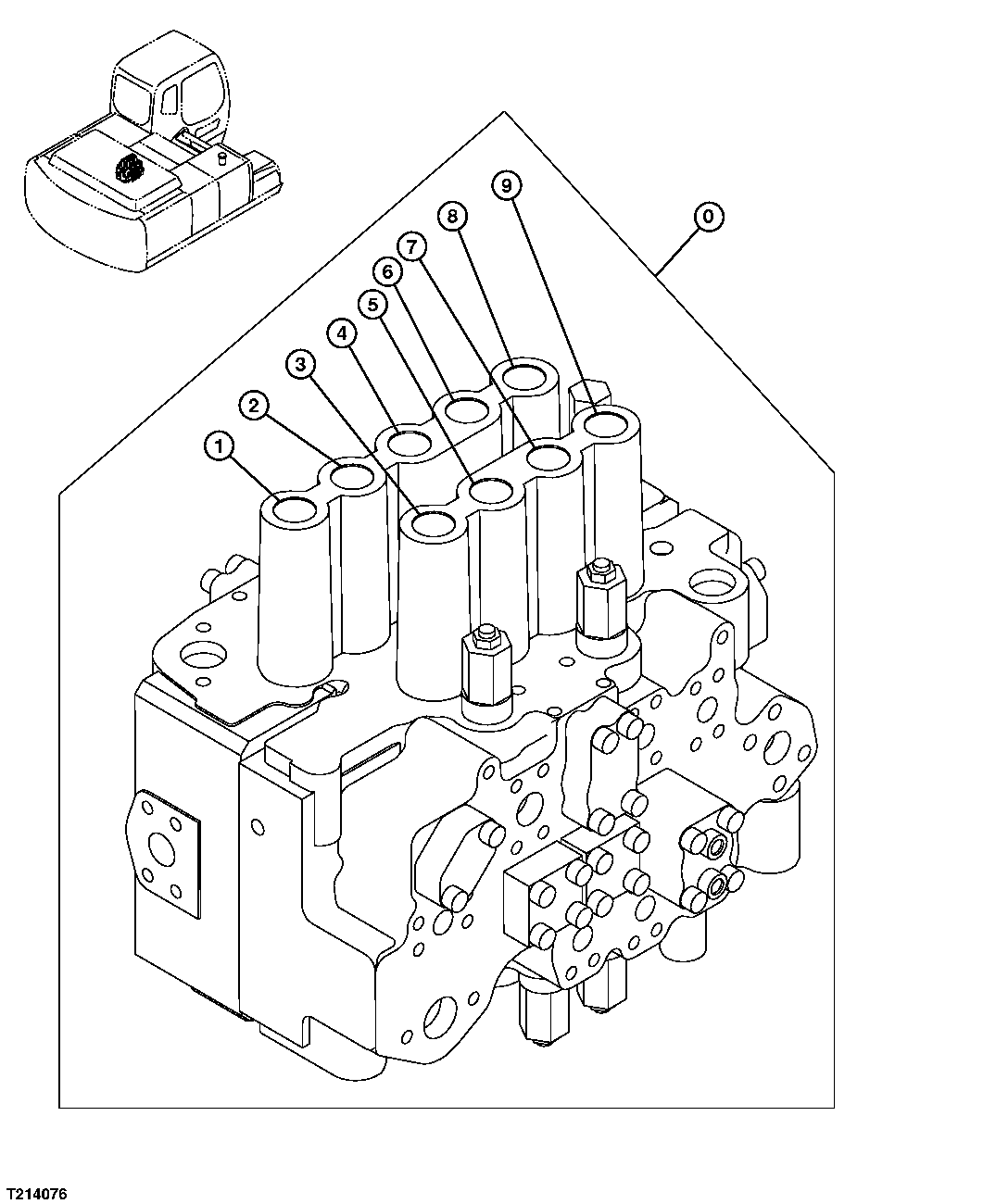

Запчасти John Deere 00C LC 174 - CONTROL VALVE (4 SPOOL) 3360 HYDRAULIC SYSTEM

0

4444992

Hyd Actuated Control Valve

Contains All Parts On Thi s Page and Following Pages

1шт.

1

Valve

Swing Section

1шт.

2

Valve

Arm I Section

1шт.

3

Valve

Arm II Section

1шт.

4

Valve

Boom II Section

1шт.

5

Valve

Boom I Section

1шт.

6

Valve

Auxiliary Section

1шт.

7

Valve

Bucket Section

1шт.

8

Valve

Left Propel Section

1шт.

9

Valve

Right Propel Section

1шт.
