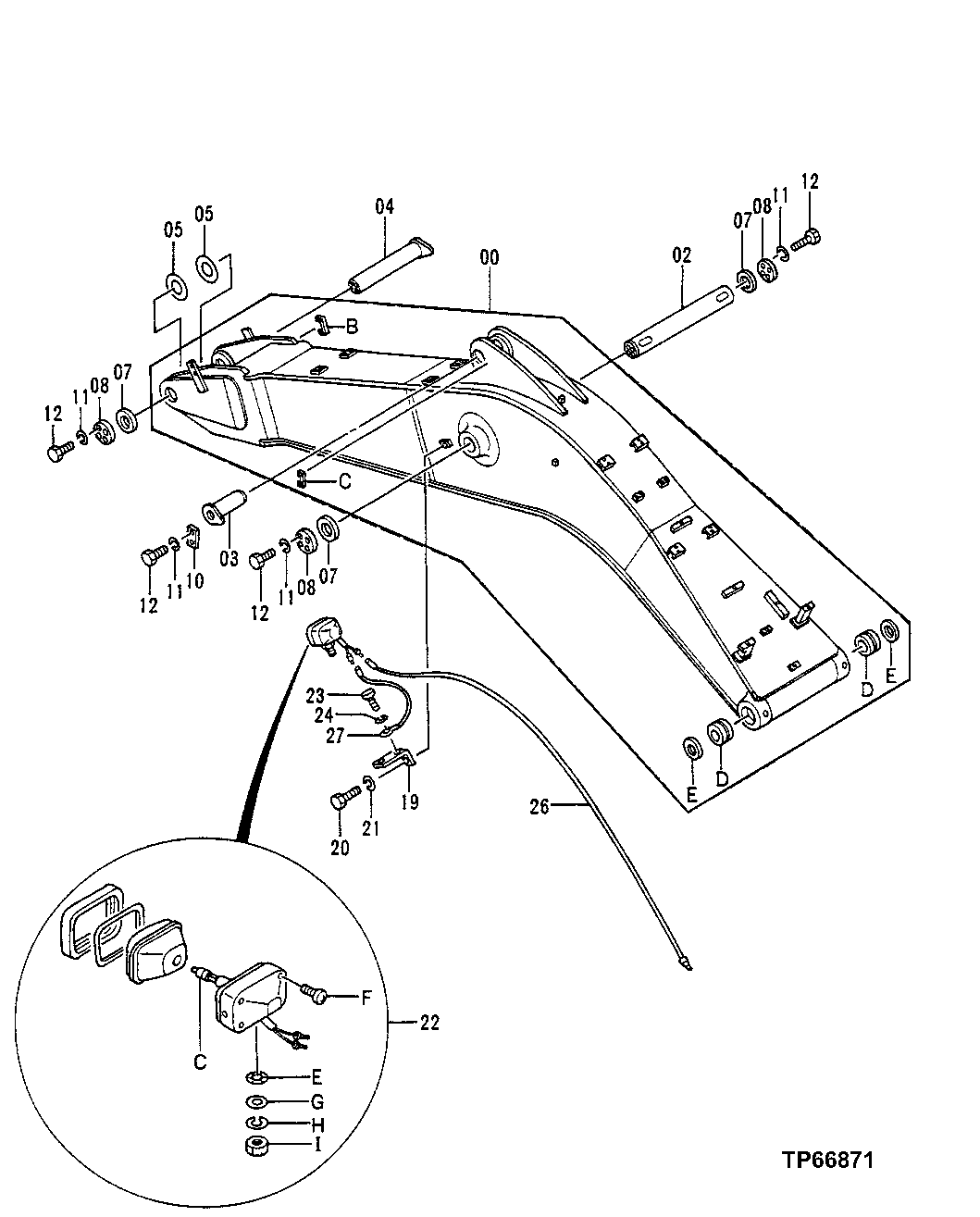

Запчасти John Deere 00C LC 173 - MASS EXCAVATING BOOM (6.6 M) 3344 BOOM

0

9131211

Excavator Boom

(SUB FOR TH9131211)

1шт.

0B

4297642

Stop

(SUB FOR TH4297642)

1шт.

0C

4297643

Stop

(SUB FOR TH4297643)

1шт.

0D

3060579

Bushing

(SUB FOR TH3060579)

2шт.

0E

4251753

Seal

(SUB FOR TH4251753)

2шт.

2

3060601

Pin Fastener

(SUB FOR TH3060601)

1шт.

3

8053519

Pin Fastener

(SUB FOR TH8053519)

1шт.

4

AT318069

Pin Fastener

(SUB FOR 8053520, TH8053520)

1шт.

5

4296540

Shim

(SUB FOR TH4296540)(1.0)

2шт.

7

4040932

Washer

(SUB FOR TH4040932)

3шт.

8

4117700

Spacer

(SUB FOR AT131693)

3шт.

10

4122729

Strap

(SUB FOR AT131696)

1шт.

11

12M7070

Lock Washer

20 mm

14шт.

12

19M7950

Cap Screw

M20 X 45

14шт.

19

4224631

Angle

(SUB FOR TH111685)

1шт.

20

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

21

12H317

Lock Washer

9/16"

1шт.

22

AT165110

Lamp

(SUB FOR 4336570 OR 4326800)

1шт.

22C

AT135758

Bulb

1шт.

22E

4307026

Washer

(SUB FOR T144361)

1шт.

22F

37H19

Screw

(SUB FOR T144362 OR 4307027)

1шт.

22G

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

22H

12H317

Lock Washer

9/16"

1шт.

22I

14M7345

Nut

M14 (SUB FOR J952014 ) (SUB FOR TH103791)

1шт.

23

21M7288

Screw

M6 X 10

1шт.

24

12M7006

Lock Washer

6 mm

1шт.

26

4299948

Wiring Harness

(SUB FOR TH4299948)

1шт.

27

4271788

Wiring Harness

(SUB FOR AT202117)

1шт.
