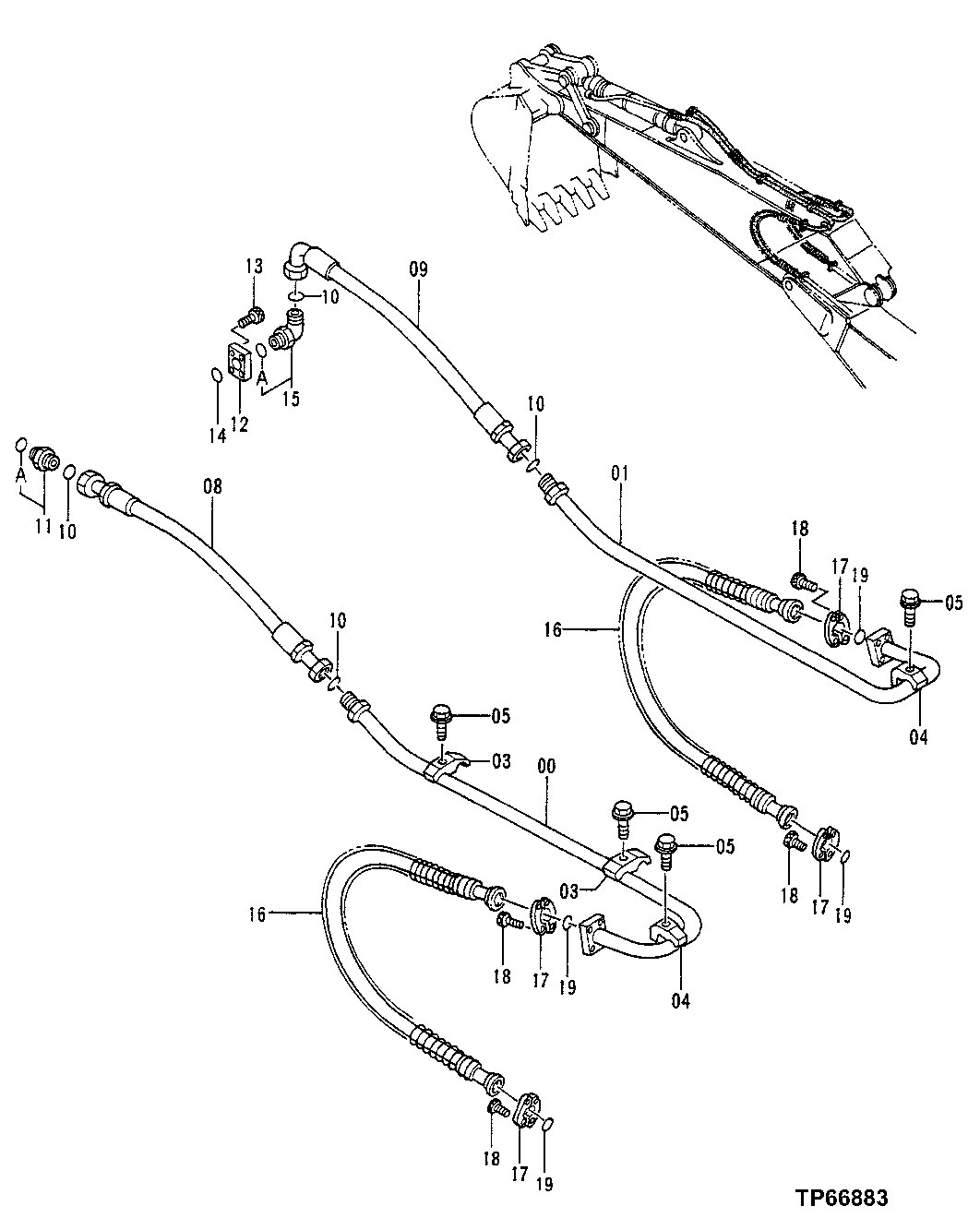

Запчасти John Deere 00C LC 170 - Front Lines, Long Arm (5.2 M) 3340 EXCAVATOR FRAMES

0

8062921

Oil Line

(SUB FOR TH8062921)

1шт.

1

8062922

Oil Line

(SUB FOR TH8062922)

1шт.

3

4189860

Clamp

(SUB FOR TH108314)

2шт.

4

4190127

Clamp

(SUB FOR TH108313)

2шт.

5

19M7331

Cap Screw

M12 X 65

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

8

4345675

Hydraulic Hose

(SUB FOR AT172092)

1шт.

9

4334631

Hydraulic Hose

(SUB FOR AT172093) Fabricate

1шт.

10

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

11

4189535

Adapter Fitting

(SUB FOR AT114853)

1шт.

11A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

12

3046126

Flange

(SUB FOR AT128499)

1шт.

13

19M8341

Screw

M12 X 45

4шт.

14

AT264324

O-Ring

(SUB FOR TH100044)

1шт.

15

A853388

Elbow Fitting

(SUB FOR TH108325 OR 4198799)

1шт.

15A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

16

AT172097

Hydraulic Hose

Fabricate

2шт.

17

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

18

19M8395

Screw

M12 X 40

16шт.

19

966993

O-Ring

4шт.
