Запчасти John Deere 00C LC 169 - LONG ARM ASSEMBLY (5.2 M) 3340 EXCAVATOR FRAMES

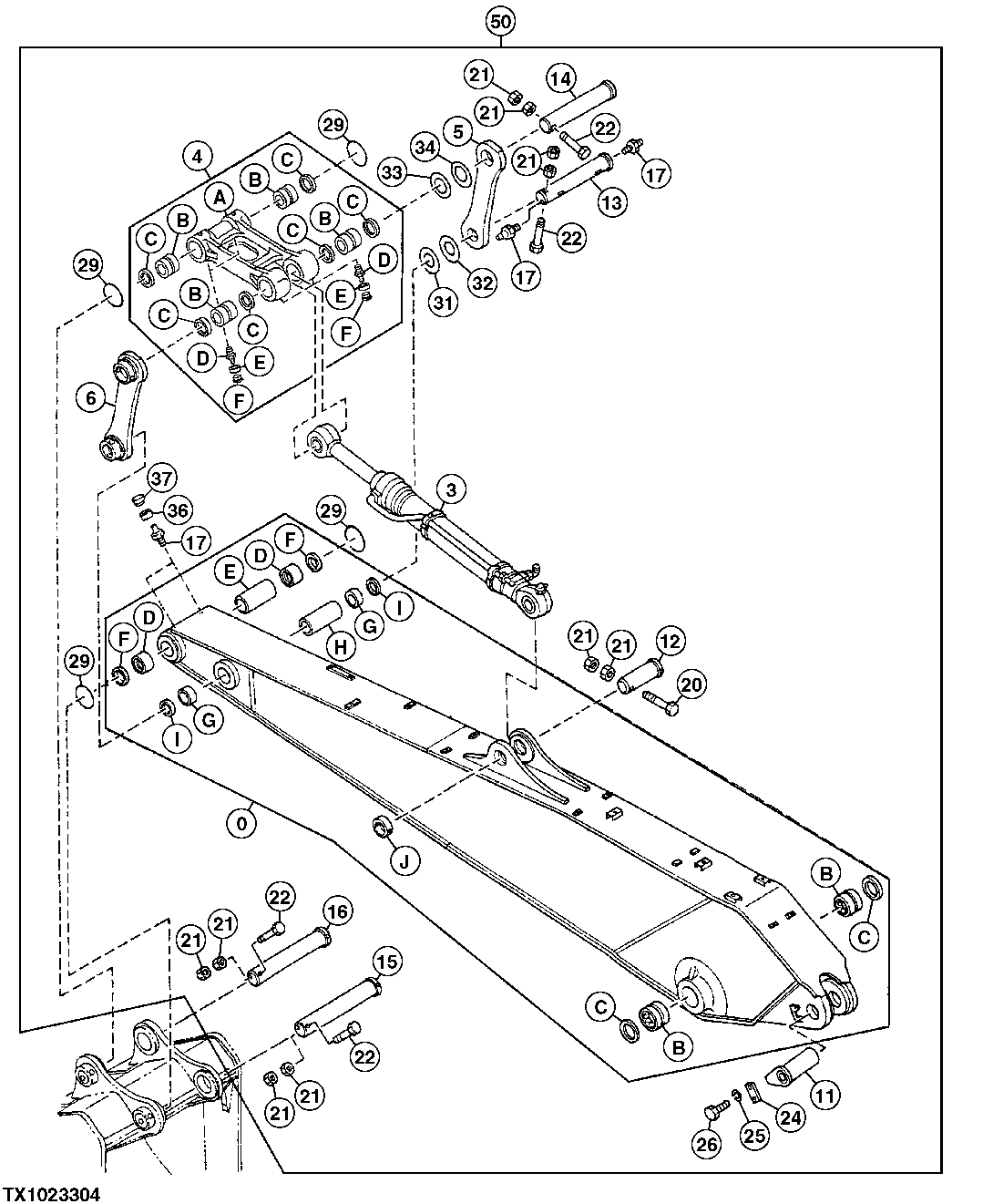

Схема запчастей John Deere 00C LC - 169 - LONG ARM ASSEMBLY (5.2 M) 3340 EXCAVATOR FRAMES

Артикул

Название

Примечание

Количество

0

9142088

Lift Arm

(SUB FOR TH9142088)

1шт.

0B

3060580

Bushing

(SUB FOR TH3060580)

2шт.

0C

4251767

Seal

(SUB FOR TH4251767)

2шт.

0D

AT217078

Bushing

2шт.

0E

4334123

Spacer

(SUB FOR AT202333)

1шт.

0F

4251212

Seal

(SUB FOR AT202303)

2шт.

0G

TH103214

Bushing

100 X 115 X 60 mm (3-15 /16" X 4.528" X 2.362")

2шт.

0H

4334124

Spacer

(SUB FOR AT202334)

1шт.

0I

TH102411

Seal

2шт.

0J

TH103198

Bushing

101.600 X 127 X 49.276 mm (4" X 5" X 1.940")

1шт.

3

Hydraulic Cylinder

Bucket See Separate Page For Detail

1шт.

4

9221317

Link

1шт.

4A

Link

(7043311 NLA)

1шт.

4B

AT201695

Bushing

4шт.

4C

4251212

Seal

6шт.

4D

TH100074

Lubrication Fitting

4шт.

4E

4130686

Bushing

4шт.

4F

4105912

Cap

4шт.

5

8050176J

Link

(SUB FOR AT201887 OR 8050176)

1шт.

6

8050178J

Link

(SUB FOR AT201888 OR 8050178)

1шт.

11

8053519

Pin Fastener

(SUB FOR TH8053519)

1шт.

12

AT131627

Pin Fastener

105 X 324 mm (4.134" X 12.756")

1шт.

13

3055219

Pin Fastener

(SUB FOR AT201687)

1шт.

14

DH300061

Pin Fastener

(SUB FOR AT201694)

1шт.

15

3104742R

Pin

(SUB FOR AT217077, 3079232 OR 3104742)

1шт.

16

AT201693

Pin Fastener

1шт.

17

TH100074

Lubrication Fitting

4шт.

20

19M8100

Cap Screw

M20 X 180

1шт.

21

14M7277

Nut

M20

10шт.

22

4276312R

Bolt

(SUB FOR AT202121)

4шт.

24

4122729

Strap

(SUB FOR AT131696)

1шт.

25

12M7070

Lock Washer

20 mm

2шт.

26

19M7950

Cap Screw

M20 X 45

2шт.

29

4487682

O-Ring

(SUB FOR AT201748 ) (SUB FO R 4288572, THIS APPLICATION)

4шт.

31

4134370R

Shim

(SUB FOR AT202083 OR 4134370)

1шт.

32

4134371R

Shim

(SUB FOR AT131702 OR 4134371)

1шт.

33

4134372

Washer

111 X 190 X 1 mm (4.370" X 7.48 0" X 0.039") (SUB FOR AT202084)

1шт.

34

4134373R

Shim

(SUB FOR AT131703 OR 4134373)

1шт.

36

4130686

Bushing

(SUB FOR AT217082)

2шт.

37

4105912

Cap

(SUB FOR AT217081)

2шт.

50

AT188460

Arm

Assembly Includes Arm, Bucket Cylin der, Hoses and Linkages Whole Goods

1шт.

Выбрано товаров: 41
