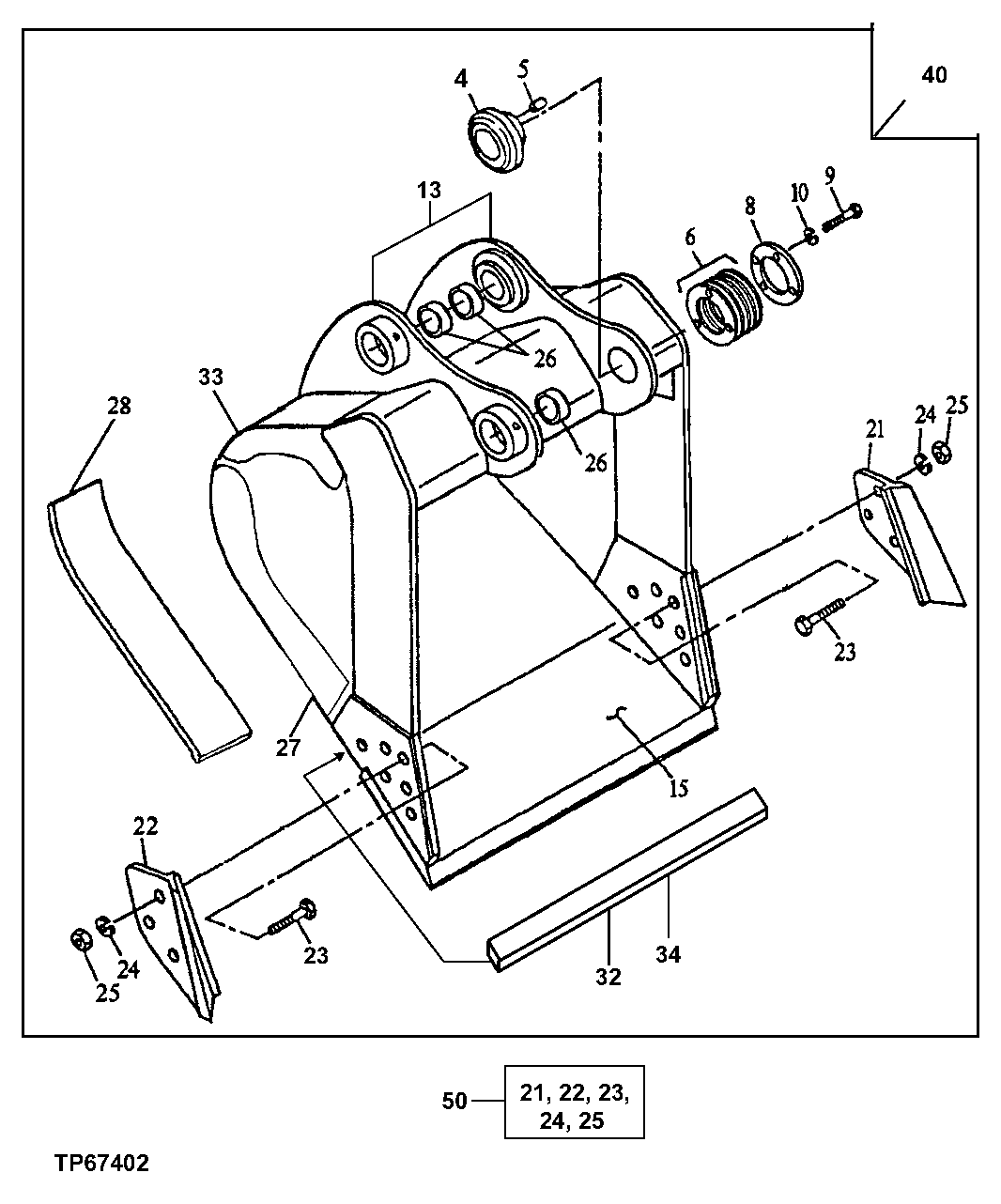

Запчасти John Deere 00C LC 146 - SEVERE DUTY PLATE LIP BUCKET (ARMS 9 FT. 6 IN., 11 FT. 6 IN. AND 13 FT. 5 IN.) 3302 BUCKET WITH TEETH

4

AT189904

Bushing

1шт.

5

C31732

Dowel Pin

(F)

2шт.

6

AT189905

Shim

14шт.

8

AT189906

Retainer

1шт.

9

19M7968

Cap Screw

M20 X 130

4шт.

10

12M7070

Lock Washer

20 mm

4шт.

13

10004

Pivot

(F) (USE WITH AT189739)

1шт.

07303

Pivot

(F) (USE WITH AT189741)

1шт.

07304

Pivot

(F) (USE WITH AT189742)

1шт.

07305

Pivot

(F) (USE WITH AT189743)

1шт.

07306

Pivot

(F) (USE WITH AT189744)

1шт.

15

C30651

Cutting Edge

(F) (USE WITH AT189739)

1шт.

C30652

Cutting Edge

(F) (USE WITH AT189741)

1шт.

C30653

Cutting Edge

(F) (USE WITH AT189742)

1шт.

C30654

Cutting Edge

(F) (USE WITH AT189743)

1шт.

C30655

Cutting Edge

(F) (USE WITH AT189744)

1шт.

21

1010517

Cutting Edge

(SUB AT189734)

1шт.

22

2010518

Cutting Edge

(SUB AT189734)

1шт.

23

J932785

Bolt

(SUB AT189734)

ARшт.

24

4085857

Washer

(SUB AT189734)

ARшт.

25

14M7476

Nut

M27 (SUB AT189734)

ARшт.

26

4295980

Bushing

3шт.

27

C619040

Plate

(F) Lower RH

1шт.

C619041

Plate

(F) Lower LH

1шт.

28

C624486

Bar

(F) (USE WITH AT189739)

1шт.

C619059

Bar

(F) (USE WITH AT189741)

1шт.

C619060

Bar

(F) (USE WITH AT189742)

1шт.

C619061

Bar

(F) (USE WITH AT189743)

1шт.

C619062

Bar

(F) (USE WITH AT189744)

1шт.

32

C33125

Bar

(F) (USE WITH AT189739)

6шт.

C33066

Bar

(F) (USE WITH AT189741)

6шт.

C33067

Bar

(F) (USE WITH AT189742)

6шт.

C33068

Bar

(F) (USE WITH AT189743)

6шт.

C33069

Bar

(F) (USE WITH AT189744)

6шт.
