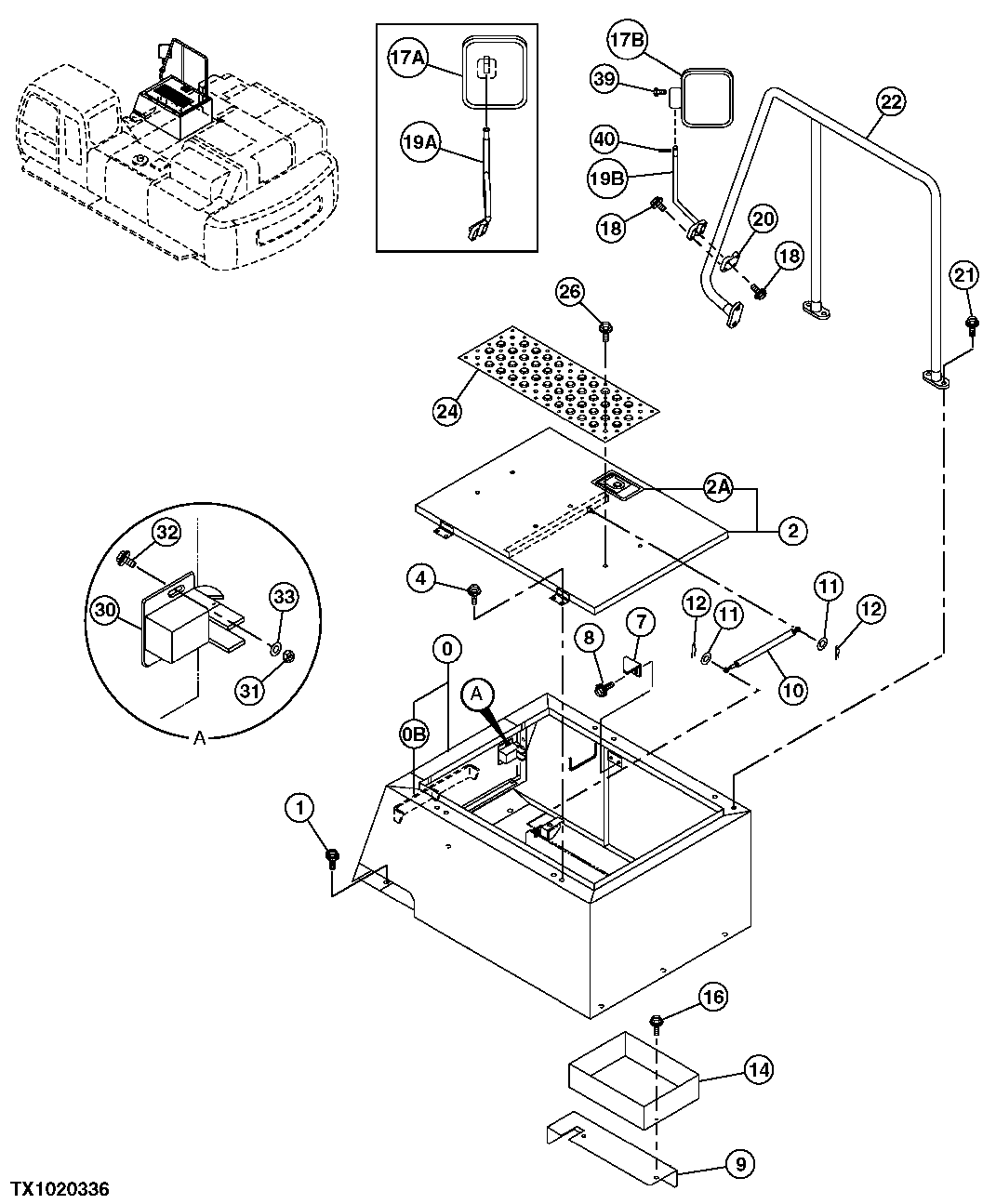

Запчасти John Deere 00C LC 135 - BATTERY COVER, TOOLBOX AND RIGHT REARVIEW MIRROR 1910 HOOD OR ENGINE ENCLOSURE

0

5008571

Cover

1шт.

0B

Step

(8079985 NLA)

1шт.

1

19M7403

Cap Screw

M12 X 35

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

6шт.

2

7041595

Cover

1шт.

2A

4361763

Lock

(SUB FOR TH110898)

1шт.

4

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.

7

4224237

Stop

(SUB FOR AT131921)

1шт.

8

19M7268

Cap Screw

M12 X 25

2шт.

9

Cover

1шт.

10

4188366

Absorber

(SUB FOR TH109684)

1шт.

11

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12

H132922

Cotter Pin

2шт.

14

8053492

Toolbox

(SUB FOR TH8053492)

1шт.

16

Bolt

(AT157059 NLA) (SUB 19M7 662, 12M7066 AND 24M7028)

2шт.

17A

Rear View Mirror

(4426821 NLA) (SUB 44189 12 ) (ALSO ORDER 8093819)

1шт.

17B

4418912

Rear View Mirror

1шт.

18

19M8122

Cap Screw

M12 X 85

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

19A

8067349

Arm

(USE WITH 4426821)

1шт.

19B

8093819

Arm

(USE WITH 4418912)

1шт.

20

4376895

Clamp

(SUB FOR TH4376895)

1шт.

21

19M7403

Cap Screw

M12 X 35

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

6шт.

22

7040580

Handrail

1шт.

24

3091338

Cover

(SUB FOR TH3091338)

1шт.

26

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

30

4372725

Stop

(SUB FOR TH4372725)

1шт.

31

14M7139

Nut

M4 (SUB FOR 14M7100)

2шт.

32

Bolt

2шт.

33

24M7117

Washer

4.300 X 9 X 0.800 mm

2шт.

39

19M8280

Screw

M5 X 45 (USE WITH 4418912)

4шт.

40

4144018

Spring Pin

(USE WITH 4418912)

1шт.
