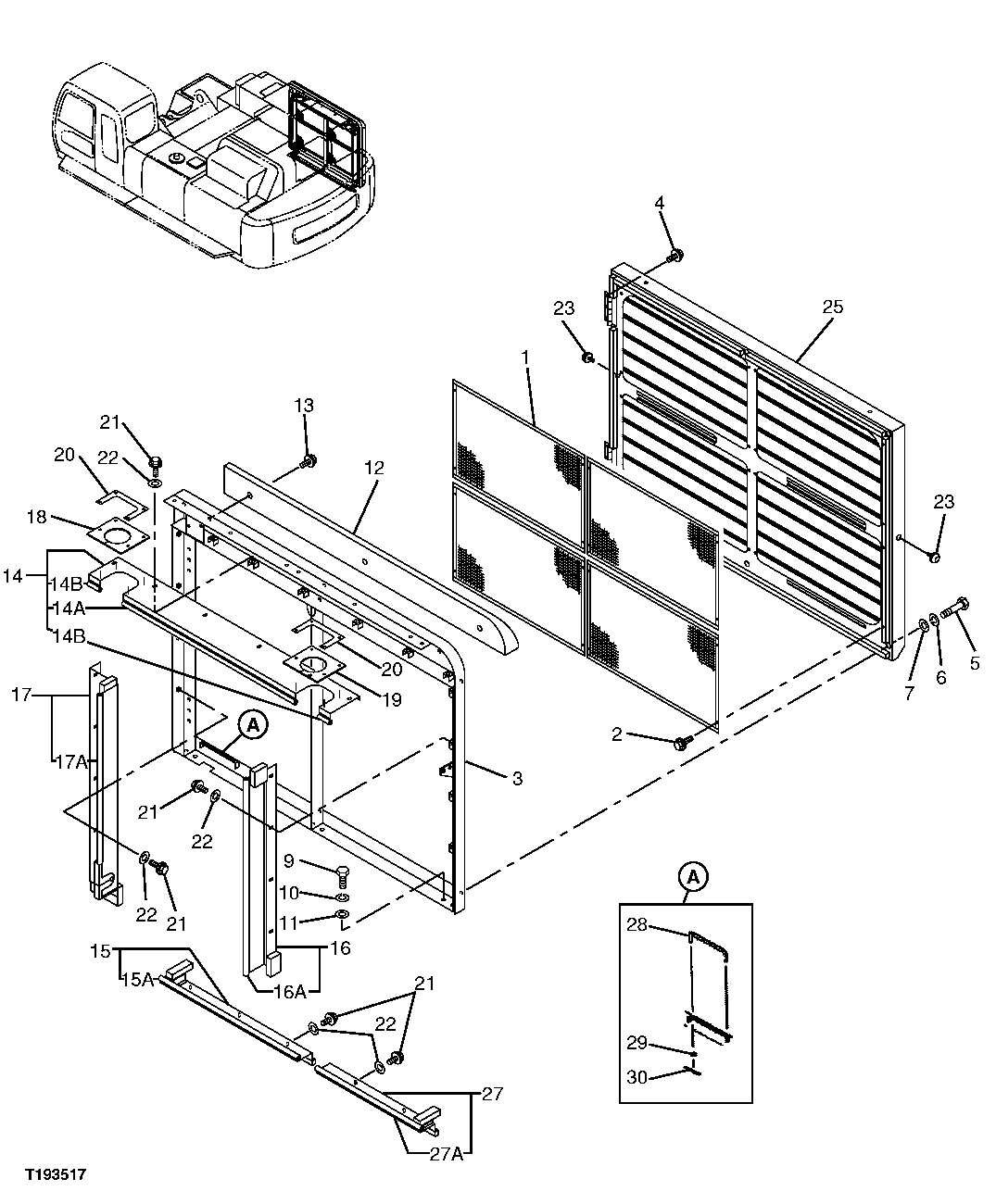

Запчасти John Deere 00C LC 133 - DUCT 1910 HOOD OR ENGINE ENCLOSURE

1

Cover

(8084462 NLA) (SUB 80928 05 ) (ALSO ORDER 5009001)

4шт.

8092805

Screen

(USE WITH 5009001)

2шт.

2

19M7923

Cap Screw

M6 X 12

20шт.

12M7006

Lock Washer

6 mm

20шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

20шт.

3

5007813

Frame

1шт.

4

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

5

19M8727

Cap Screw

M14 X 100 (SUB FOR J901400)

6шт.

6

12H317

Lock Washer

9/16"

6шт.

7

J222014

Washer

(SUB FOR AT200011)

6шт.

9

19M6332

Cap Screw

M14 X 35 (SUB FOR J921435)

6шт.

10

12H317

Lock Washer

9/16"

6шт.

11

J222014

Washer

(SUB FOR AT200011)

6шт.

12

7040648

Cover

1шт.

13

19M7943

Cap Screw

M12 X 90 (AT215469 NLA) (US E WITH 12M7067 AND 24M7043)

3шт.

12M7067

Lock Washer

12 mm

3шт.

24M7043

Washer

12 X 25 X 3 mm

3шт.

14

8084599

Cover

1шт.

14A

4456780

Isolator

1шт.

14B

4452717

Isolator

2шт.

15

8084600

Cover

1шт.

15A

4462699

Isolator

1шт.

16

8084601

Cover

1шт.

16A

4456781

Isolator

1шт.

17

8084602

Cover

1шт.

17A

4456782

Isolator

1шт.

18

4456745

Isolator

1шт.

4456746

Isolator

1шт.

19

4456746

Isolator

1шт.

20

4456747

Plate

2шт.

21

19M7402

Cap Screw

M10 X 25 (SUB FOR 19M7 402, THIS APPLICATION)

19шт.

12M7066

Lock Washer

10 mm

19шт.

19M7938

Cap Screw

M10 X 20 (SUB FOR J271020)

19шт.

24M7346

Washer

11 X 20 X 2 mm

19шт.

22

24M7346

Washer

11 X 20 X 2 mm

19шт.

23

4204586

Bumper

(SUB FOR TH108668)

2шт.

25

Air Duct

(5008033 NLA) (SUB 50090 01 ) (ALSO ORDER 8092805)

1шт.

5009001

Air Duct

(USE WITH 8092805)

1шт.

19M7872

Cap Screw

M12 X 25 Not Illustrated

2шт.

27

8085751

Cover

1шт.

27A

4462700

Isolator

1шт.

28

9759219

Bracket

1шт.

29

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

30

H132922

Cotter Pin

1шт.
