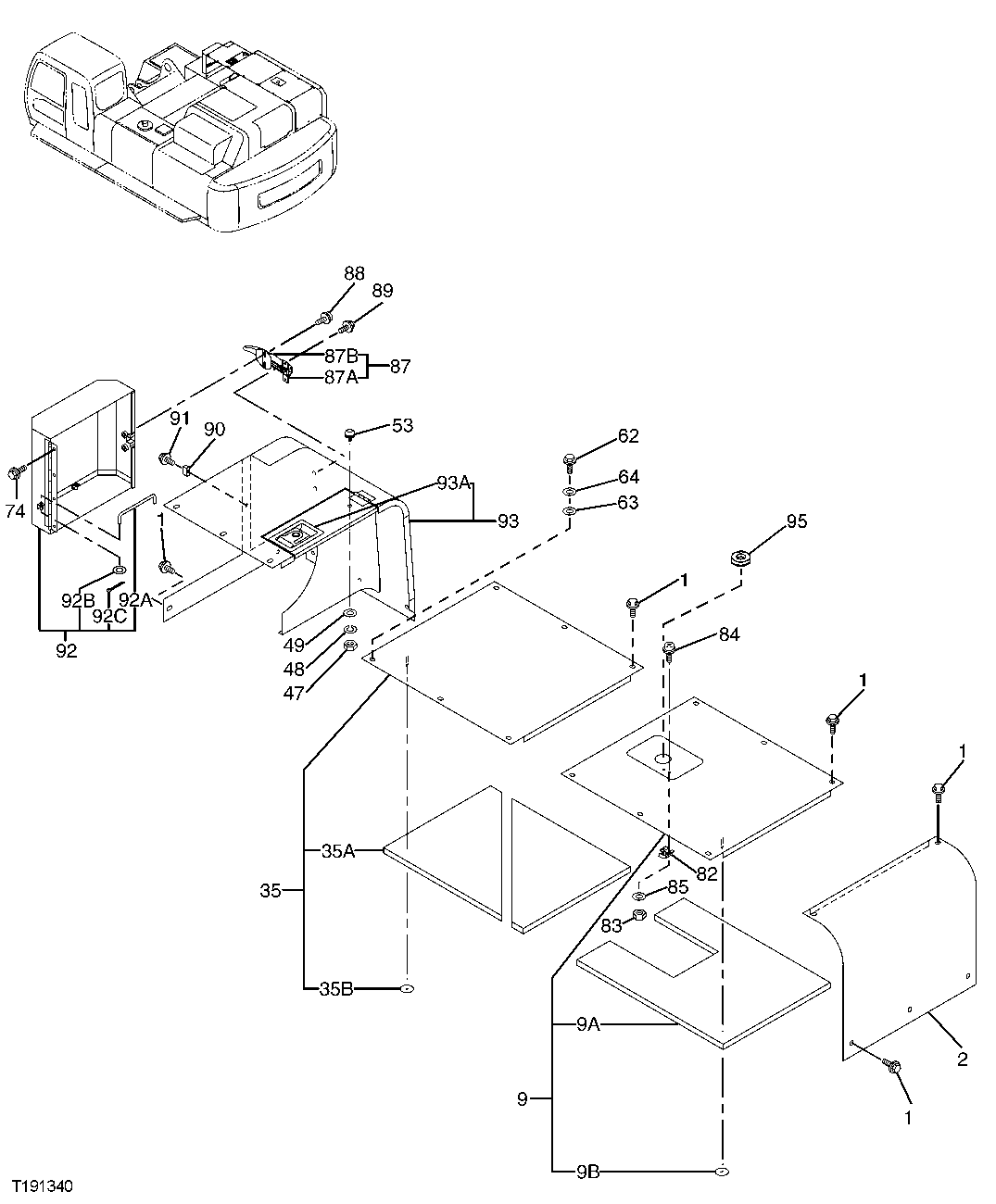

Запчасти John Deere 00C LC 131 - COVER 1910 HOOD OR ENGINE ENCLOSURE

1

19M8011

Cap Screw

M12 X 30

24шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

24шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

24шт.

2

7040630

Cover

1шт.

9

8086769

Cover

1шт.

9A

3094957

Isolator

1шт.

9B

4156886

Spring Washer

SUB FOR AT121962

8шт.

35

7041975

Cover

1шт.

35A

4471868

Isolator

2шт.

35B

4156886

Spring Washer

SUB FOR AT121962

8шт.

47

14M7274

Nut

M10

1шт.

48

12M7066

Lock Washer

10 mm

1шт.

49

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

53

4294508

Bumper

SUB FOR AT201032

1шт.

62

12M7067

Lock Washer

12 mm

1шт.

19M7403

Cap Screw

M12 X 35

1шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

1шт.

63

4456191

Isolator

1шт.

64

4435575

Spacer

1шт.

74

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

82

4372725

Stop

SUB FOR TH4372725

1шт.

83

14M7139

Nut

M4 SUB FOR 14M7100

2шт.

84

Screw

AT156973 NLA

2шт.

85

24M7117

Washer

4.300 X 9 X 0.800 mm

2шт.

87

Catch

AT131937 NLA

1шт.

87A

3074568

Catch

SUB FOR AT131654

1шт.

87B

3021131

Anchor

SUB FOR TH102247

1шт.

88

Screw With Washer

J460825 NLA

2шт.

21M7125

Screw

M8 X 25

2шт.

Washer

12M7065 NLA

2шт.

24M7036

Washer

9 X 16 X 1.600 mm

2шт.

89

19M7881

Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

90

4609950

Stop

SUB FOR TH4424157, 4424157

1шт.

91

19M7177

Cap Screw

M6 X 35

1шт.

12M7012

Lock Washer

6 mm

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

92

8086662

Cover

1шт.

92A

4464982

Stop

1шт.

92B

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

92C

11M7058

Cotter Pin

2 X 25 mm SUB FOR 11M7009

1шт.

93

6020331

Cover

1шт.

93A

4361763

Lock

SUB FOR AT214010

1шт.

95

4109823

Bushing

1шт.
