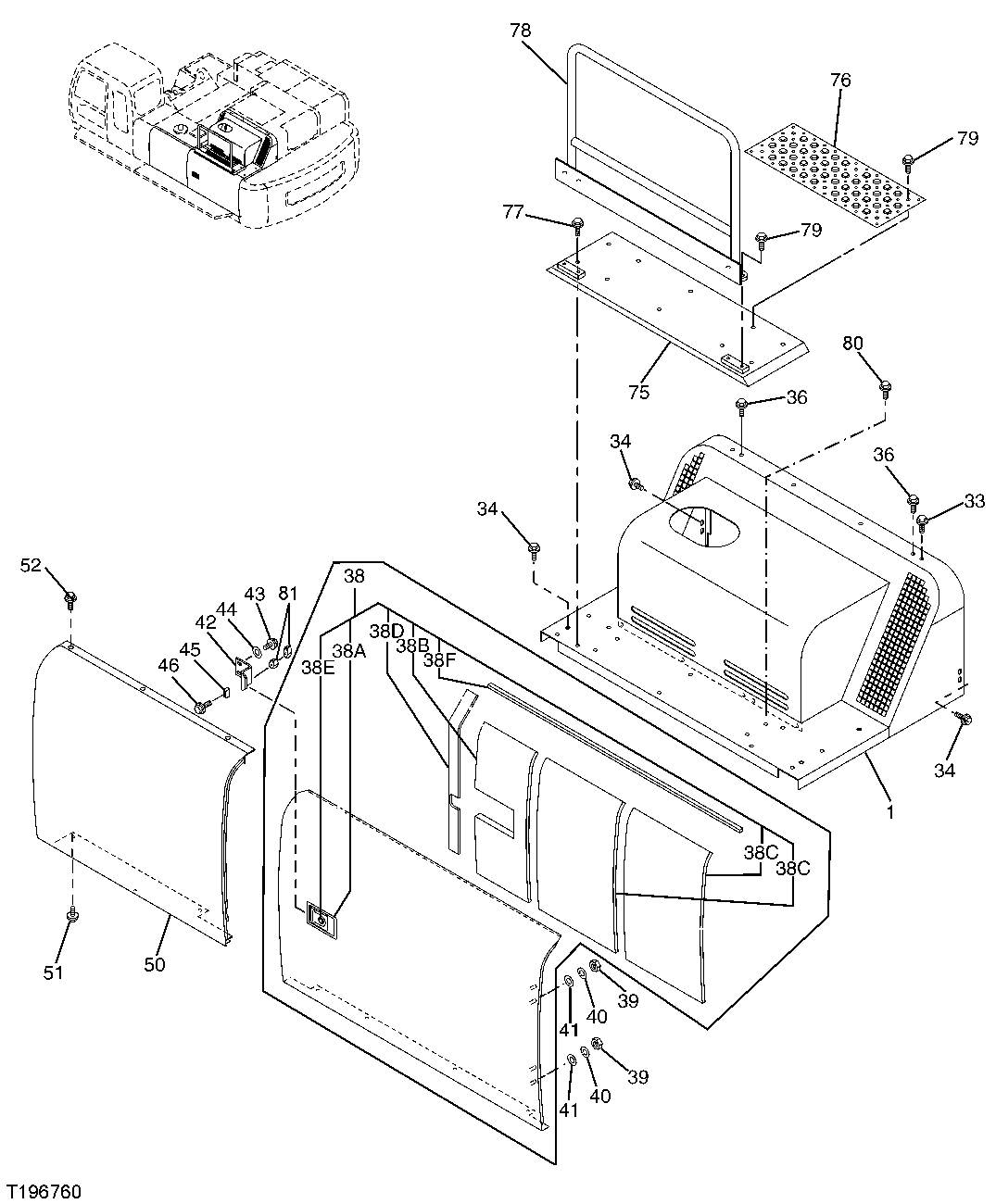

Запчасти John Deere 00C LC 129 - Cover (2-Bolt Pattern Hydraulic Pump Door) 1910 HOOD OR ENGINE ENCLOSURE

1

Cover

(5008647 NLA)

1шт.

5008709

Cover

1шт.

1A

4486001

Isolator

1шт.

4486001

Isolator

Not Illustrated

1шт.

33

19M7330

Cap Screw

M12 X 55 (SUB FOR J021255 ) (A LSO ORDER 24M7047 AND 12M7067)

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

12M7067

Lock Washer

12 mm

4шт.

34

19M8011

Cap Screw

M12 X 30

8шт.

12H301

Lock Washer

1/2"

8шт.

24M7047

Washer

13 X 24 X 2.500 mm

8шт.

36

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

38

Door

(5007773 NLA) (SUB 5008709 AND 5008706)

1шт.

5008706

Door

1шт.

38A

4409447

Lock

1шт.

38B

4446551

Isolator

(SUB FOR TH4446551)

1шт.

38C

4456252

Isolator

2шт.

38D

4425575

Isolator

1шт.

38E

4409396

Lock

(SUB FOR TH4409396)

1шт.

38F

4462413

Isolator

1шт.

39

14M7275

Nut

M12

4шт.

40

12H301

Lock Washer

1/2"

4шт.

41

24M7345

Washer

13.500 X 24 X 2.500 mm

4шт.

42

4446694

Stop

(SUB FOR TH4446694)

1шт.

43

19M7403

Cap Screw

M12 X 35

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

12H301

Lock Washer

1/2"

2шт.

44

4249324

Washer

(SUB FOR TH4249324)

2шт.

45

4609950

Stop

(SUB FOR TH4424157, 4424157)

1шт.

46

19M8477

Cap Screw

M6 X 40

1шт.

12M7006

Lock Washer

6 mm

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

50

5007772

Cover

1шт.

51

19M8011

Cap Screw

M12 X 30

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

52

19M8011

Cap Screw

M12 X 30

3шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

3шт.

75

8086390

Step

1шт.

76

3091338

Cover

(SUB FOR TH3091338)

1шт.

77

19M8088

Cap Screw

M12 X 75

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

78

7043130

Handrail

1шт.

79

19M7403

Cap Screw

M12 X 35

8шт.

12H301

Lock Washer

1/2"

8шт.

24M7047

Washer

13 X 24 X 2.500 mm

8шт.

80

12M7067

Lock Washer

12 mm

8шт.

19M7403

Cap Screw

M12 X 35

8шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

8шт.

81

14M7272

Nut

M6

2шт.
