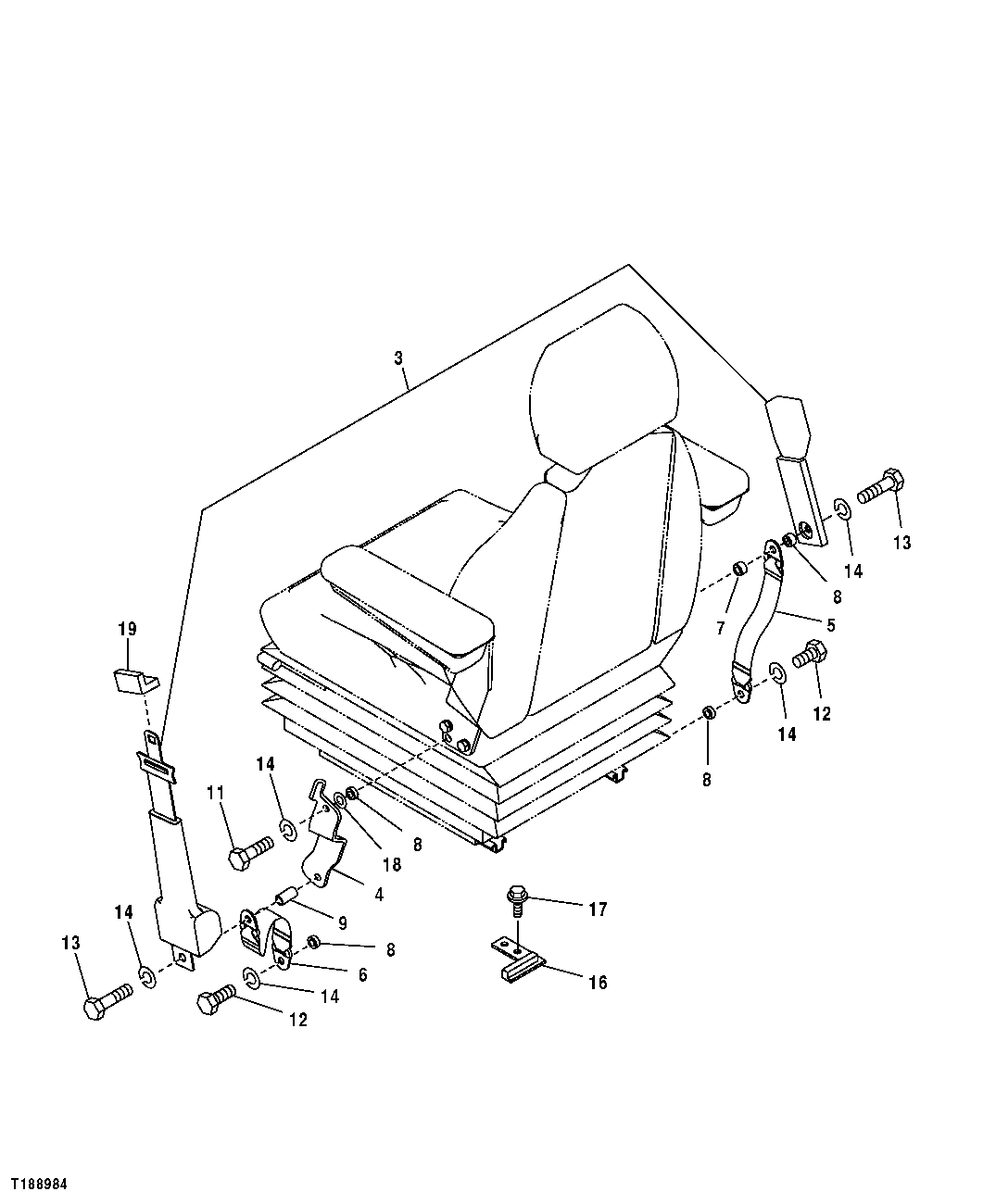

Запчасти John Deere 00C LC 118 - RETRACTABLE SEAT BELT 1821 SEAT AND SEAT BELTS

3

4384239

Seat Belt

(SUB FOR AT215572)

1шт.

4

7040505

Bracket

(SUB FOR TH7040505)

1шт.

5

4382410

Strap

(SUB FOR 4455565, THIS APPLI CATION ) (SUB FOR TH4455565)

1шт.

6

4453869

Seat Belt

(SUB FOR 4455566, THIS APPLI CATION ) (SUB FOR TH4455566)

1шт.

7

4453874

Spacer

(SUB FOR TH4453874)

1шт.

8

4372200

Spacer

(SUB FOR P60915)

3шт.

9

4382432

Sleeve

(SUB FOR AT215564)

1шт.

11

4333835

Bolt

1шт.

12

19H3187

Cap Screw

7/16" X 1-1/2" (SUB FOR AT215492, 4235232)

2шт.

13

4380534

Cap Screw

(SUB FOR AT215561)

2шт.

14

12H293

Lock Washer

7/16" (SUB FOR AT215470 OR J219167)

5шт.

16

9756736

Bracket

(SUB FOR TH9756736)

1шт.

17

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

18

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

19

3097862

Bushing

1шт.
