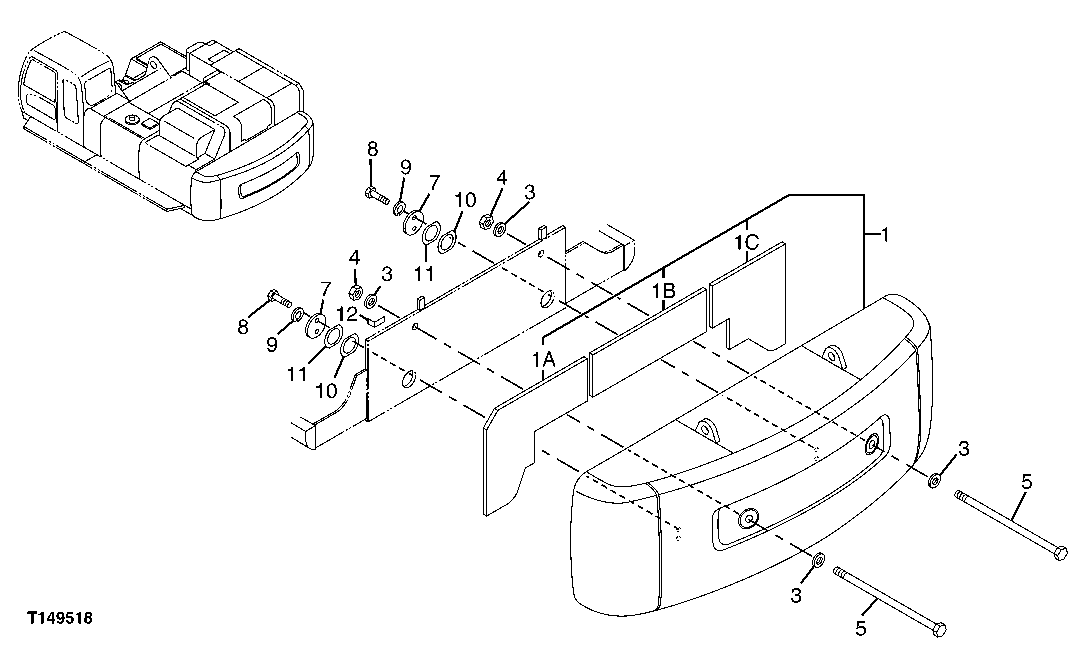

Запчасти John Deere 00C LC 80 - COUNTERWEIGHT 1740 FRAME INSTALLATION

1

5007705

Counterweight

1шт.

1A

4457845

Isolator

1шт.

1B

4457846

Isolator

1шт.

1C

4457847

Isolator

1шт.

3

4103743

Bushing

(SUB FOR AT131690)

4шт.

4

M660045

Nut

(SUB FOR AT131560)

2шт.

5

4334933

Bolt

(SUB FOR TH4334933)

2шт.

7

4270269

Spacer

(SUB FOR AT201731)

2шт.

8

J912455

Bolt

(SUB FOR AT131548)

4шт.

9

4070952

Strap

(SUB FOR AT131678)

2шт.

10

4207762

Washer

(SUB FOR AT131842)

4шт.

11

4207763

Shim

(SUB FOR AT131843)

2шт.

12

4345741

Shim

(SUB FOR AT202397)

1шт.
