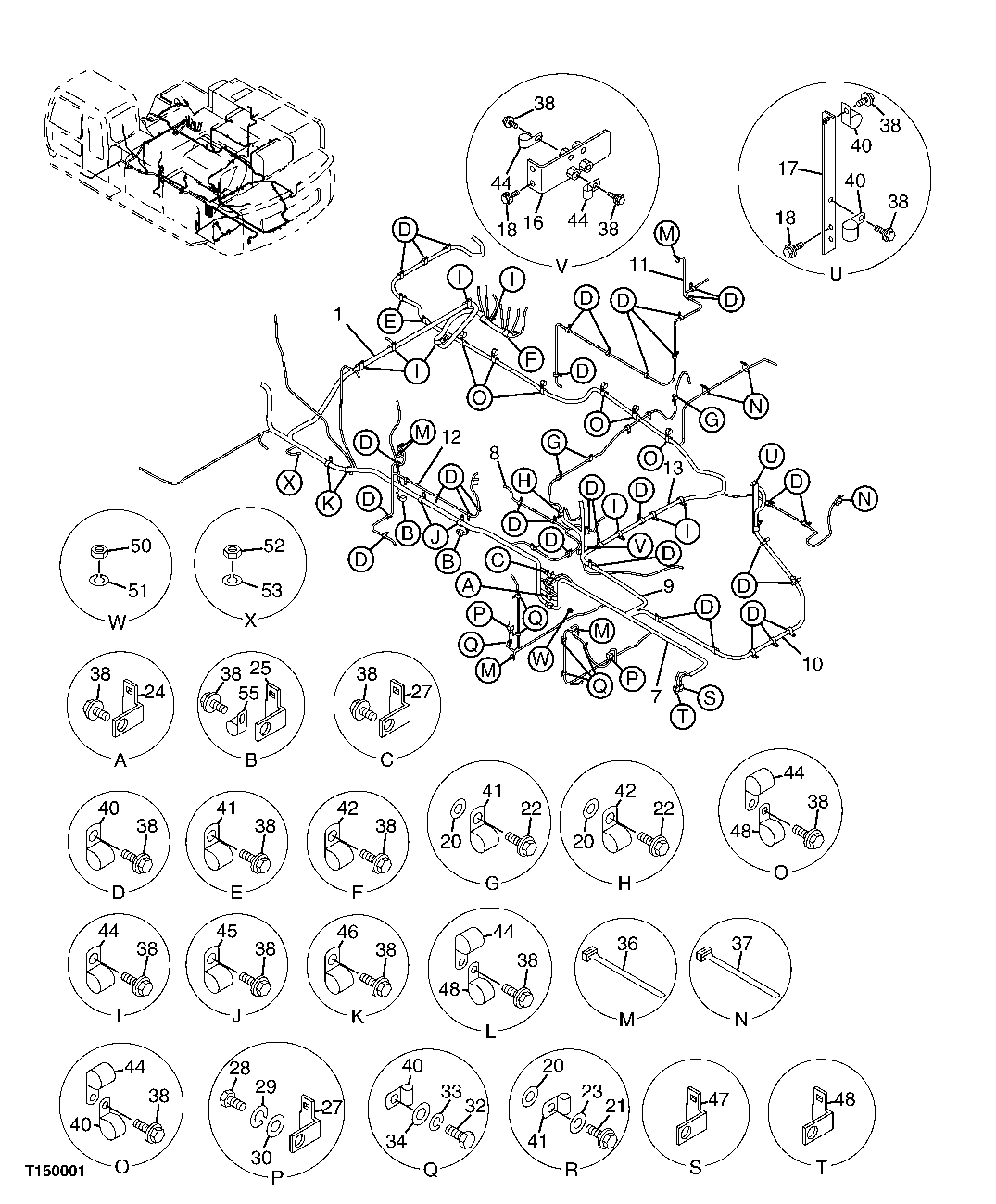

Запчасти John Deere 00C LC 71 - WIRING HARNESS 1674 WIRING HARNESS AND SWITCHES

1

1030243

Wiring Harness

(SEE DTAC SOLUTION FOR R EPAIR KIT AND CONNECTORS)

1шт.

7

2047517

Wiring Harness

1шт.

8

3093046

Wiring Harness

1шт.

9

2049711

Wiring Harness

SUB FOR 2047508

1шт.

2049711

Wiring Harness

1шт.

10

3094363

Wiring Harness

1шт.

11

3092898

Wiring Harness

1шт.

12

3092437

Wiring Harness

1шт.

13

4469404

Wiring Harness

1шт.

16

9756816

Bracket

1шт.

17

9756826

Bracket

1шт.

18

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.

20

4322539

Spacer

7шт.

21

19M8093

Cap Screw

M10 X 100

2шт.

12M7066

Lock Washer

10 mm

2шт.

22

19M7550

Cap Screw

M10 X 35

5шт.

12M7066

Lock Washer

10 mm

5шт.

23

24M7346

Washer

11 X 20 X 2 mm

2шт.

24

4418301

Bracket

SUB FOR TH4418301

1шт.

25

4448037

Bracket

5шт.

27

4336874

Bracket

SUB FOR AT202391

4шт.

28

19M7923

Cap Screw

M6 X 12 SUB FOR 19M6614

4шт.

29

12M7006

Lock Washer

6 mm

4шт.

30

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

32

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

7шт.

33

Washer

12M7065 NLA

7шт.

34

24M7055

Washer

8.400 X 16 X 1.600 mm

7шт.

36

H77698

Tie Band

13шт.

37

H77698

Tie Band

7шт.

38

19M7938

Cap Screw

M10 X 20

80шт.

12M7006

Lock Washer

6 mm

80шт.

40

4190261

Clip

SUB FOR TH109649

54шт.

41

4190275

Clamp

SUB FOR TH108598

11шт.

42

T28949

Clamp

SUB FOR TH108460 OR 4190273

7шт.

44-

R72659

Clamp

SUB FOR AT122384 OR 4235654

20шт.

45

XCL-19

Hose Clamp

SUB FOR TH108459 OR 4192035

2шт.

46

AT121321

Hose Clamp

3шт.

47

4257159

Bracket

SUB FOR AT154243

1шт.

48

4257159

Bracket

SUB FOR 4336875

1шт.

50

14M7141

Nut

M14

1шт.

51

12H317

Lock Washer

9/16"

1шт.

52

14M7274

Nut

M10

1шт.

53

12M7066

Lock Washer

10 mm

1шт.

55

T32854

Clamp

1шт.
