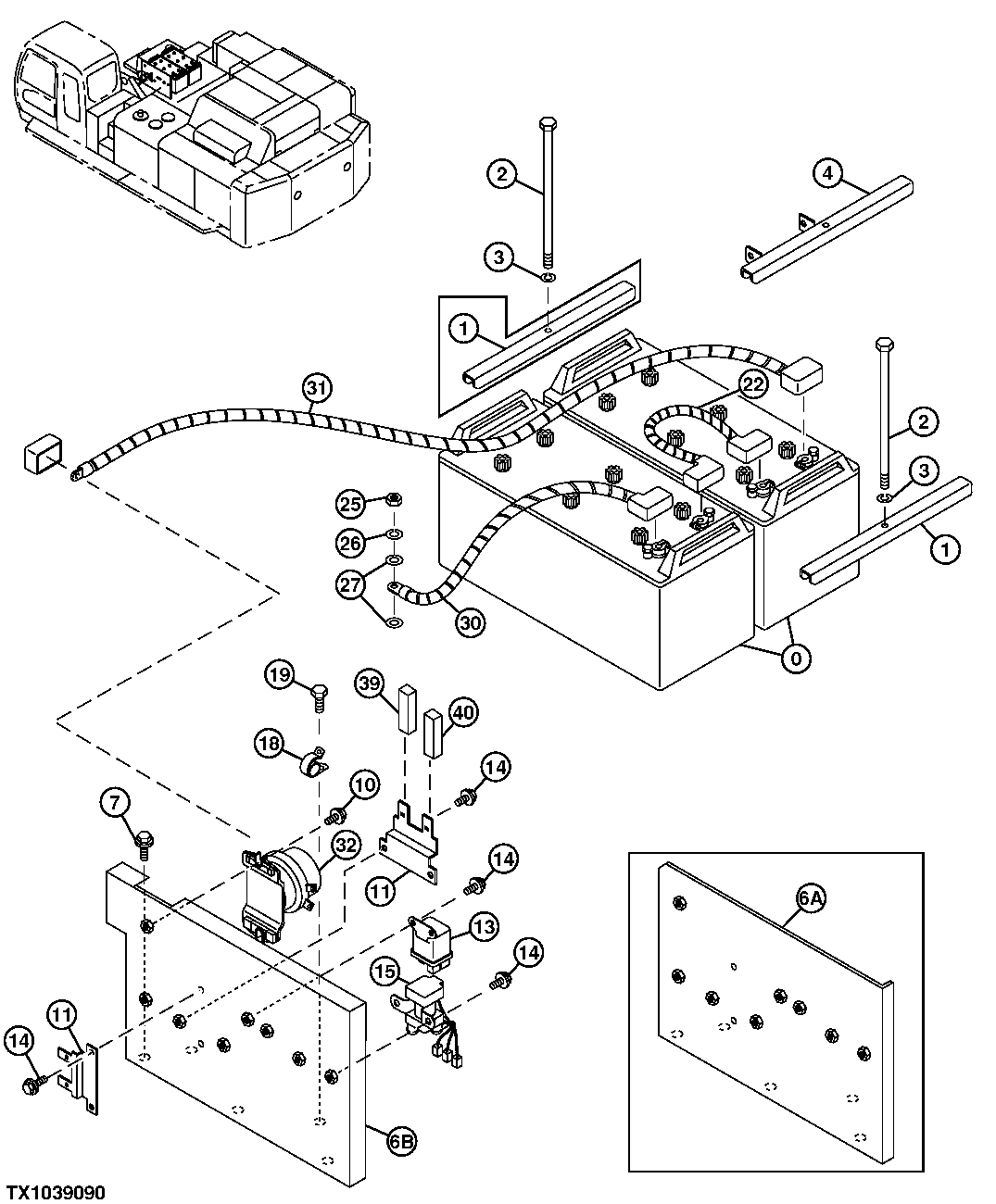

Запчасти John Deere 00C LC 66 - BATTERIES AND HARNESSES 1671 BATTERIES, SUPPORT AND CABLES

0

TY25882

Dry Charged Battery

4D Cold Cranking Amps at 0°F (- 18°C), 1400-Minute Reserve Capac ity at 25 Amps (SUB FOR TY21709)

2шт.

1

4145156

Holder

(SUB FOR TH102147)

2шт.

4145156

Holder

(SUB FOR TH102147)

1шт.

2

4206101

Bolt

(SUB FOR AT131796)

2шт.

3

12H301

Lock Washer

1/2"

2шт.

4

8089565

Support

1шт.

6A

Bracket

( 7039668 NLA)

1шт.

6B

7051238

Bracket

1шт.

7

19M8011

Cap Screw

M12 X 30

3шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.

10

19M7513

Cap Screw

M8 X 30

2шт.

11

4297280

Bracket

(SUB FOR AT201752)

2шт.

13

4251587

Relay

(SUB FOR AT213807)

1шт.

14

19M7923

Cap Screw

M6 X 12

8шт.

12M7006

Lock Washer

6 mm

8шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

8шт.

15

1825530391

Relay

(SUB FOR AT213815, 4279835)

1шт.

18

R72659

Clamp

(SUB FOR 4235654)

3шт.

19

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

22

4294694

Wiring Harness

(SUB FOR TH4294694)

1шт.

25

14M7274

Nut

M10

1шт.

26

12M7066

Lock Washer

10 mm

1шт.

27

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

30

4469395

Wiring Harness

1шт.

31

4470168

Wiring Harness

1шт.

32

4031771

Relay

(SUB FOR TH104069)

1шт.

39

4315323

Fuse

(FUSIBLE LINK - 45 AMP)

1шт.

40

4315324

Link

(FUSIBLE LINK - 75 AMP)

1шт.
