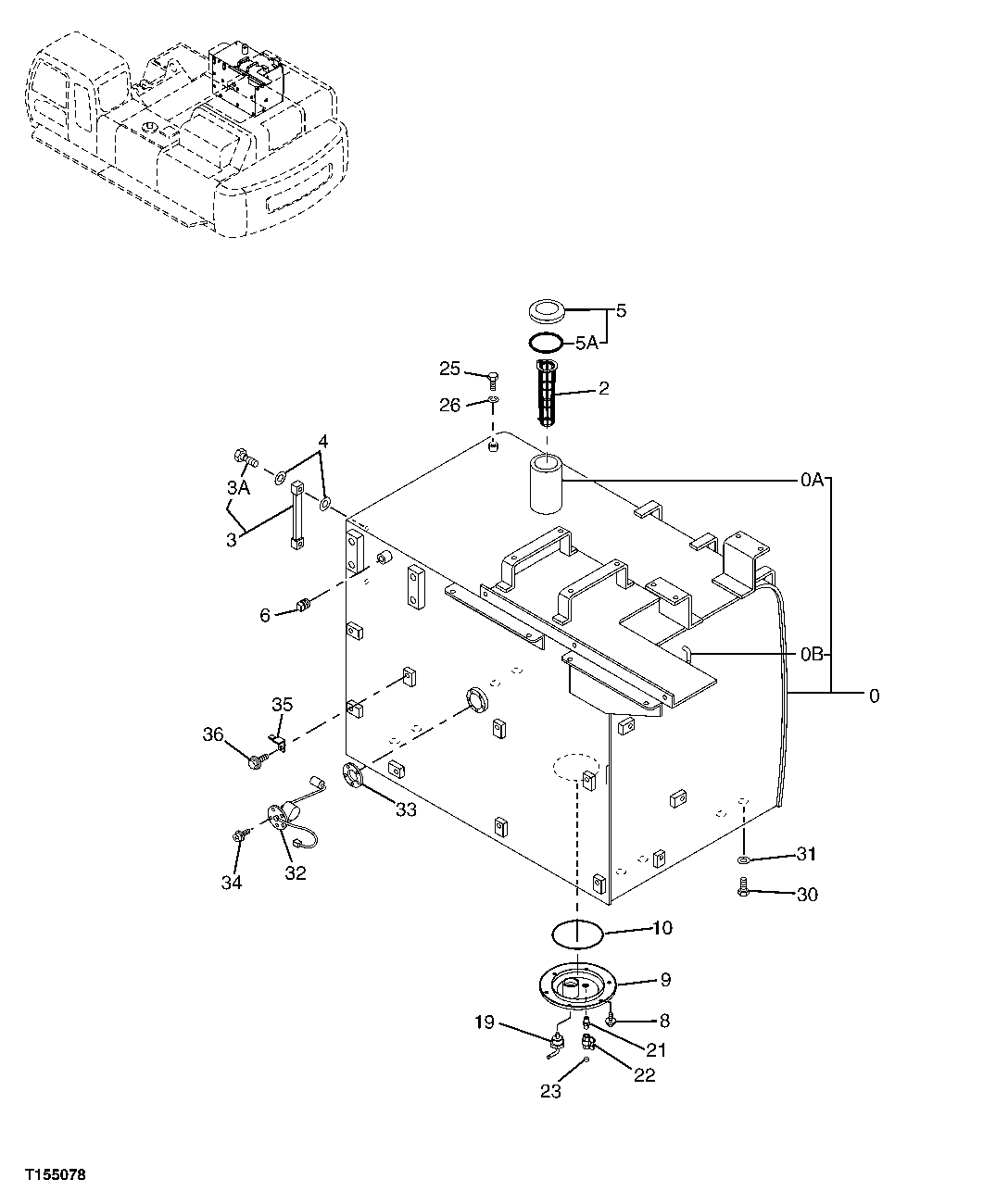

Запчасти John Deere 00C LC 62 - FUEL TANK 0560 EXTERNAL FUEL SUPPLY SYSTEM

0

5007620

Fuel Tank

1шт.

0A

P61733

Structural Tube

1шт.

0B

P61614

Pipe

1шт.

2

4121496

Fuel Filter

(SUB FOR TH100509)

1шт.

3

8033923

Level Gauge

(SUB FOR TH108250)

1шт.

3A

4100967

Bolt

(SUB FOR TH101894)

2шт.

4

449558

Washer

(SUB FOR TH100675)

4шт.

5

AT321249

Filler Cap

(SUB FOR AT175989 OR 4361638)(KEY LOCKABLE) (ORDER KEY SEPARATELY)

1шт.

AT323462

Filler Cap

(SUB FOR AT175989 OR 4361638)(CAN BE LOC KED WITH PADLOCK) (PADLOCK NOT INCLUDED)

1шт.

5A

4168820

Packing

(SUB FOR TH103384)

1шт.

6

4187322

Plug

(SUB FOR TH4187322)

1шт.

8

19M7938

Cap Screw

M10 X 20

6шт.

12M7066

Lock Washer

10 mm

6шт.

9

8067496

Cover

(SUB FOR AT177828)

1шт.

10

TH100679

O-Ring

1шт.

19

9726772

Fitting

(SUB FOR TH108251)

1шт.

21

94-1901

Adapter Fitting

(SUB FOR TH102106)

1шт.

22

4374265

Drain Valve

(SUB FOR AT177419)

1шт.

23

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

25

19M8017

Cap Screw

M12 X 20

1шт.

26

12H301

Lock Washer

1/2"

1шт.

30

19M7488

Cap Screw

M16 X 40

8шт.

31

4114405

Washer

(SUB FOR TH101105)

8шт.

32

4660782

Float

(SUB FOR AT154239 OR 4257128)

1шт.

33

T211051

Gasket

(SUB FOR U42323)

1шт.

34

21M7278

Screw

M5 X 10

5шт.

35

4257159

Bracket

(SUB FOR AT154243)

1шт.

36

19M7938

Cap Screw

M10 X 20

1шт.
