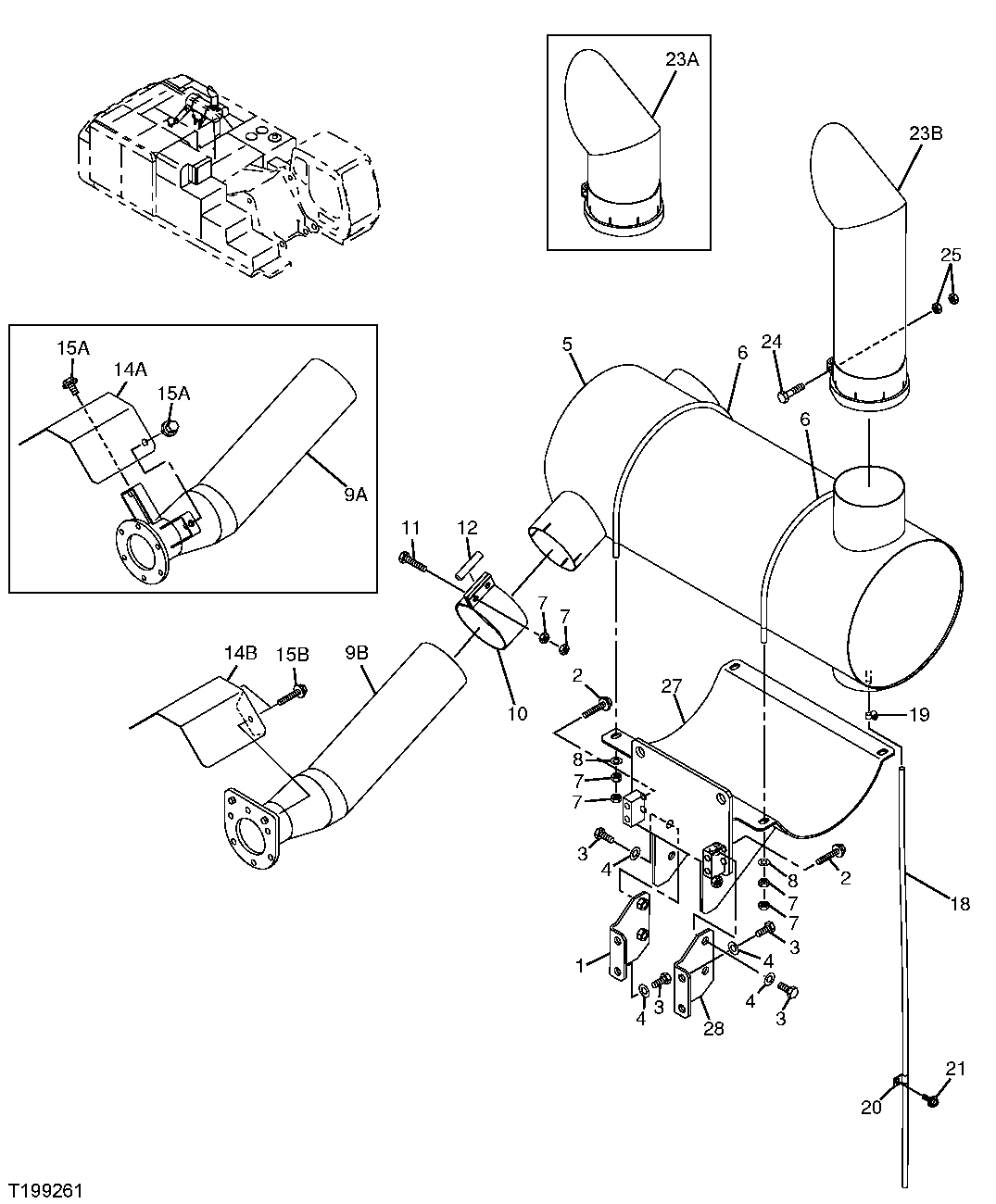

Запчасти John Deere 00C LC 60 - MUFFLER 0530 EXTERNAL EXHAUST SYSTEM

1

9757398

Bracket

1шт.

2

19M7753

Cap Screw

M12 X 70 (SUB FOR AT200007 OR J021270)

4шт.

12M7067

Lock Washer

12 mm

4шт.

24M7043

Washer

12 X 25 X 3 mm

4шт.

3

19M7877

Cap Screw

M14 X 30

8шт.

19M7877

Cap Screw

M14 X 30

4шт.

4

J222014

Washer

(SUB FOR AT200011)

8шт.

J222014

Washer

4шт.

5

4653851

Muffler

SUB FOR 4472814, ALSO ORDER 8088326

1шт.

4620385

Muffler

NLA, SUB FOR 4450955 T HIS APP, ORDER 4653911

1шт.

4653911

Muffler

1шт.

6

4434206

U-Bolt

(SUB FOR TH4434206)

2шт.

7

14M7275

Nut

M12

12шт.

8

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

9A

Exhaust Pipe

( 8083758 NLA) (ORDER 8096020 AND 4621319)

1шт.

9B

8096020

Exhaust Pipe

1шт.

10

8077064

Band

(SUB FOR TH8077064)

1шт.

11

19M7363

Cap Screw

M12 X 60

2шт.

12

T130341

Gasket

1шт.

14A

Cover

( 4457084 NLA) (ORDER 4621319 AND 8096020)

1шт.

14B

4621319

Cover

1шт.

15A

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15B

J271030

Bolt

2шт.

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

18

4448792

Tube

(SUB FOR 4375436)

1шт.

19

TY22462

Clamp

(SUB FOR AR48236)

1шт.

20

457793

Clip

1шт.

21

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

23A

8088326

Exhaust Pipe

1шт.

23B

7040954

Exhaust Pipe

1шт.

24

19M8600

Cap Screw

M10 X 50 (SUB FOR J921050)

1шт.

25

14M7274

Nut

M10

2шт.

27

7041956

Bracket

1шт.

7042893

Bracket

1шт.

28

4467387

Bracket

1шт.
