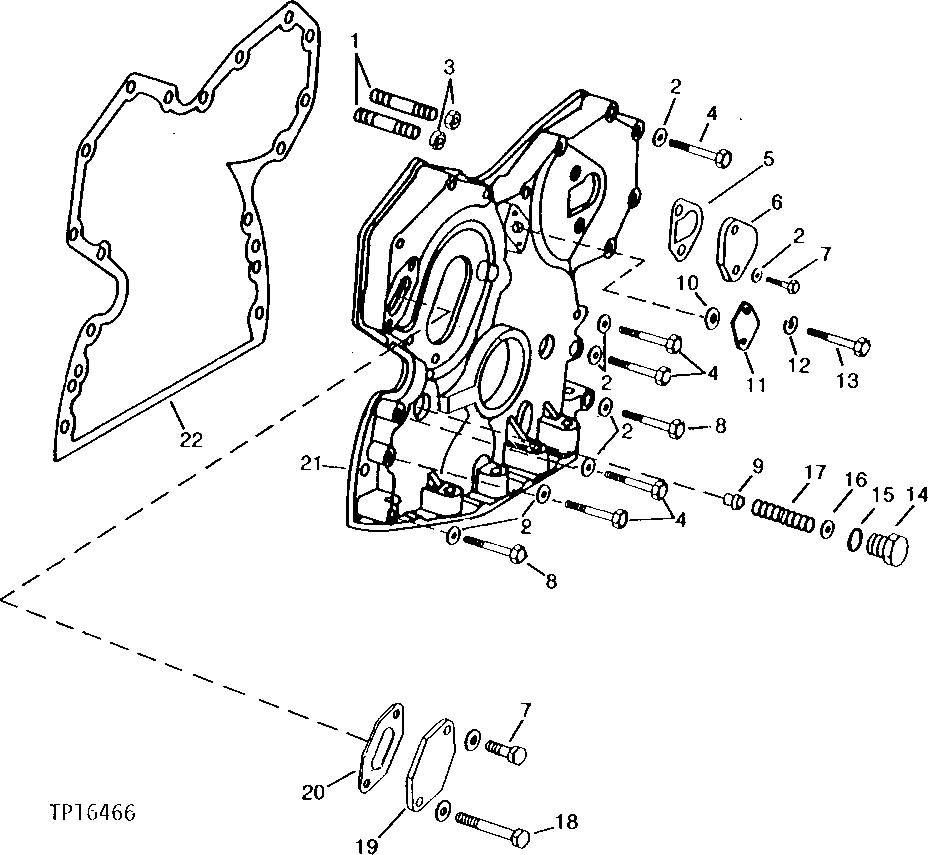

Запчасти John Deere 95 6 - TIMING GEAR COVER 402 - ENGINE 4

1

R122226

STUD

(SUB FOR R122226)

2шт.

2

24H1304

WASHER

13/32" X 23/32" X 0.120"

ARшт.

3

14H812

NUT

3/8"

2шт.

4

19H2549

CAP SCREW

3/8" X 1-7/8", (USE WITH AR91662)

10шт.

19H2549

CAP SCREW

(USE WITH RE30685)

4шт.

5

R78366

GASKET

1шт.

6

R126041

COVER

(SUB FOR T20362)

1шт.

7

19H2284

CAP SCREW

3/8" X 7/8", (USE WITH AR91662)

1шт.

19H3385

CAP SCREW

1/2" X 1-1/8", (USE WITH RE30685)

5шт.

19H1648

CAP SCREW

1шт.

R124277

CAP SCREW

(SUB FOR R122618, THIS APPLICATION) (USE WITH T23260 OR R126041)

3шт.

8

19H3031

CAP SCREW

3/8" X 2-1/2", (USE WITH AR91662)

2шт.

19H1733

CAP SCREW

3/8" X 2-1/2", (USE WITH AR91662)

1шт.

19H3181

CAP SCREW

3/8" X 2", (USE WITH RE30685)

1шт.

9

R51516

VALVE

OIL PRESSURE RELIEF

1шт.

10

R47154

O-RING

1шт.

11

R67769

COVER

1шт.

12

12H302

LOCK WASHER

1/4"

2шт.

13

19H1948

CAP SCREW

1/4" X 3/4"

2шт.

14

T27657

FITTING PLUG

1шт.

15

A4827R

WASHER

1шт.

16

24H1290

WASHER

21/64" X 3/4" X 0.035"

1шт.

17

T27658

SPRING

1шт.

18

19H1726

CAP SCREW

3/8" X 2-1/4"

1шт.

19

T23260

COVER

1шт.

20

T20336

GASKET

1шт.

21

RE30685

COVER

(SUB FOR AR91662) (ALSO ORDER (5) 19H2545, (4) 19H2549 AND 19H3181)

1шт.

22

T20155

GASKET

1шт.
