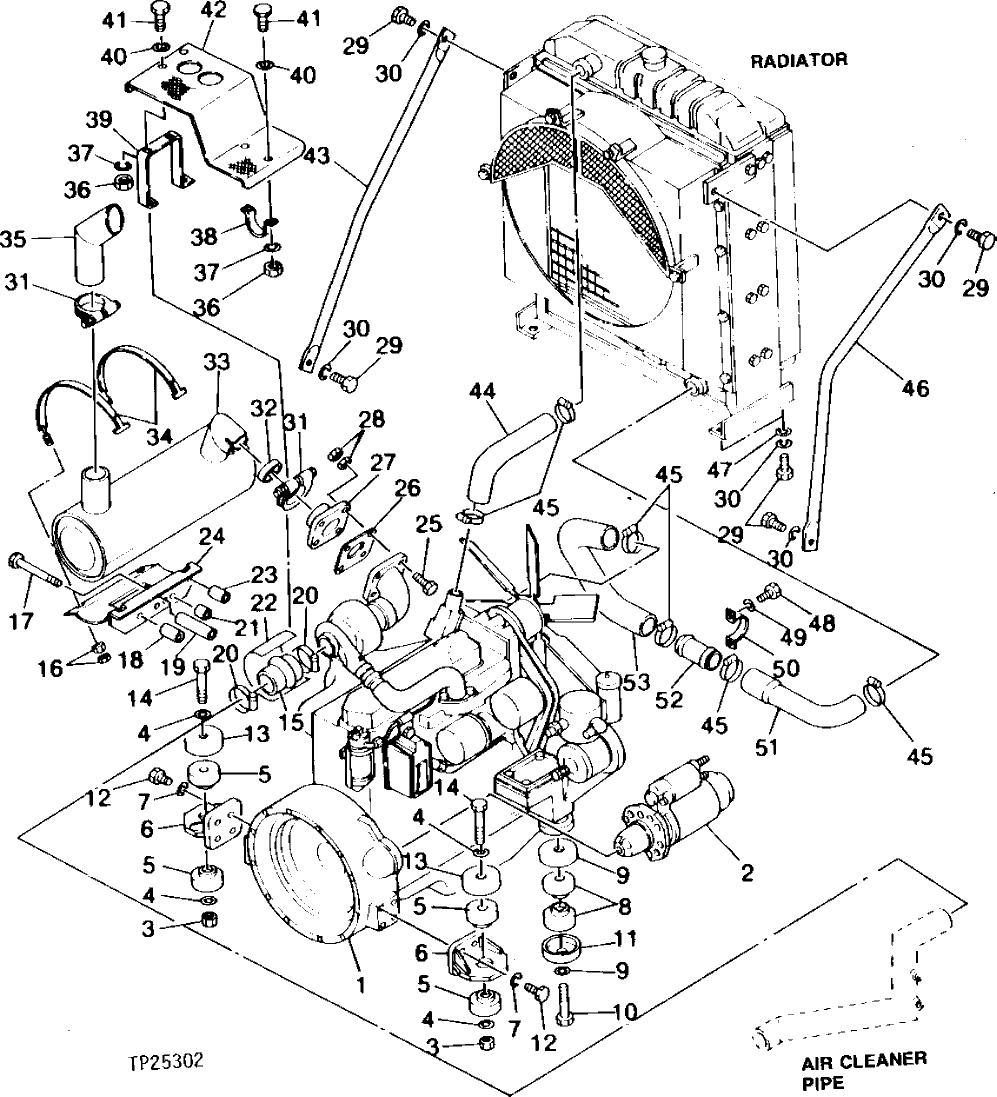

Запчасти John Deere 95 2 - ENGINE 401 - ENGINE 4

1

MOUNTING PARTS

(NOT A SERVICE PART)

1шт.

2

RE70961

STARTER MOTOR KIT

(SUB FOR TH103638, RE43422 AND RE15718, RE65173)

1шт.

3

J951018

NUT

(SUB FOR TH100890)

2шт.

4

4114406

WASHER

(SUB FOR TH100891)

4шт.

5

4155170

ISOLATOR

(SUB FOR TH100894)

4шт.

6

8028462

BRACKET

(SUB FOR TH100892)

2шт.

7

12H301

LOCK WASHER

1/2", (SUB FOR TH100893)

8шт.

8

4155171

ISOLATOR

(SUB FOR TH100887)

4шт.

9

4164248

STOP

(SUB FOR TH100888)

4шт.

10

19M8333

CAP SCREW

M18 X 110, (SUB FOR TH103639)

2шт.

11

4114406

WASHER

(SUB FOR TH100891)

2шт.

12

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

13

4164248

STOP

(SUB FOR TH100888)

2шт.

14

J931804

BOLT

(SUB FOR TH100889)

2шт.

15

4014035

SUCTION HOSE

(SUB FOR TH100927)

1шт.

16

14M7274

NUT

M10

4шт.

17

4182657

BOLT

(SUB FOR TH103657)

4шт.

18

4182748

SPACER

(SUB FOR TH103653)

1шт.

19

4182749

SPACER

(SUB FOR TH103654)

1шт.

20

AT37476

HOSE CLAMP

2шт.

21

4182751

SPACER

(SUB FOR TH103656)

1шт.

22

4162337

INSULATOR

(SUB FOR TH101607)

1шт.

23

4182750

SPACER

(SUB FOR TH103655)

1шт.

24

7016385

BRACKET

(SUB FOR TH103652)

1шт.

25

19M7358

CAP SCREW

M10 X 40

4шт.

26

R98841

GASKET

(SUB FOR R79813)

1шт.

27

9719771

EXHAUST PIPE

(SUB FOR TH100880)

1шт.

28

14M7274

NUT

M10

8шт.

29

19M8035

CAP SCREW

M16 X 35

8шт.

30

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

8шт.

31

AN122180

CLAMP

2шт.

32

4170227

RING

(SUB FOR TH103415)

1шт.

33

4155623

MUFFLER

(SUB FOR TH100872)

1шт.

34

9722613

BAND

(SUB FOR TH103368)

2шт.

35

9724388

EXHAUST PIPE

(SUB FOR TH103651)

1шт.

36

14M7274

NUT

M10

4шт.

37

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

38

4053865

CLAMP

(SUB FOR TH103646)

1шт.

39

4191729

BRACKET

(SUB FOR TH105595)

1шт.

40

24M7101

WASHER

11 X 34 X 3 MM, (SUB FOR TH101289)

4шт.

41

19M7402

CAP SCREW

M10 X 25

4шт.

42

3035975

STEP

(SUB FOR TH105596)

1шт.

43

3034317

SUPPORT

(SUB FOR TH103640)

1шт.

44

3034186

RADIATOR HOSE

(SUB FOR TH103642)

1шт.

45

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999)

6шт.

46

3036254

SUPPORT

(SUB FOR TH103641) (SUB FOR TH105594)

1шт.

47

24M7053

WASHER

17 X 30 X 3 MM, (SUB FOR TH100520)

4шт.

48

19M7938

CAP SCREW

M10 X 20

2шт.

49

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

50

4053865

CLAMP

(SUB FOR TH103646)

1шт.

51

3034188

HOSE

(SUB FOR TH103644)

1шт.

52

4183087

LINE

(SUB FOR TH103645)

1шт.

53

3034187

RADIATOR HOSE

(SUB FOR TH103643)

1шт.
