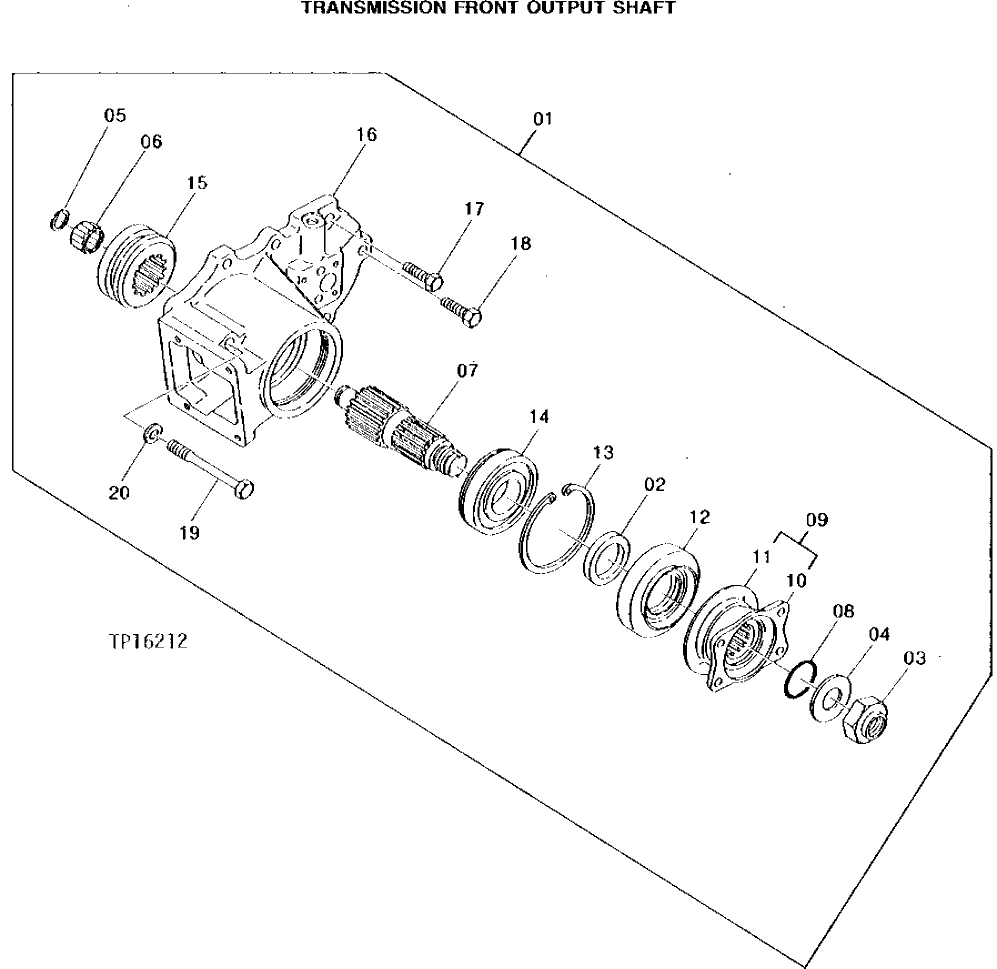

Запчасти John Deere 95 10 - TRANSMISSION FRONT OUTPUT SHAFT 350 - TRANSMISSION 3

1

SHAFT

(FRONT OUTPUT) ( TH105329 NO LONGER AVAILABLE)

1шт.

2

0268303

WASHER

(SUB FOR TH105287)

2шт.

3

0266503

LOCK NUT

(SUB FOR TH105086)

2шт.

4

0268401

WASHER

(SUB FOR TH105312)

2шт.

5

0268601

SNAP RING

(SUB FOR TH105330)

1шт.

6

0268602

NEEDLE BEARING

(SUB FOR TH105331)

1шт.

7

0268603

SHAFT

(SUB FOR TH105332)

1шт.

8

0268604

O-RING

(SUB FOR TH105333)

1шт.

9

0268605

FLANGE

(SUB FOR TH105334)

1шт.

10

FLANGE

(SUB TH105334)

1шт.

11

DUST SHIELD

(SUB TH105334)

1шт.

12

0266638

SEAL

(SUB FOR TH105151)

1шт.

13

40M7118

SNAP RING

(SUB FOR TH105335)

1шт.

14

TH105336

BALL BEARING

1шт.

15

0268608

SLEEVE

(SUB FOR TH105337)

1шт.

16

0268609

COVER

(SUB FOR TH105338)

1шт.

17

19M7303

CAP SCREW

M12 X 45, (SUB FOR TH105282 ALONG WITH 12M7067)

1шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

1шт.

18

19M7744

CAP SCREW

M12 X 35, (SUB FOR TH105339 ALONG WITH 12M7067)

6шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

6шт.

19

19M7289

CAP SCREW

M12 X 110, (SUB FOR TH105340)

2шт.

20

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.
