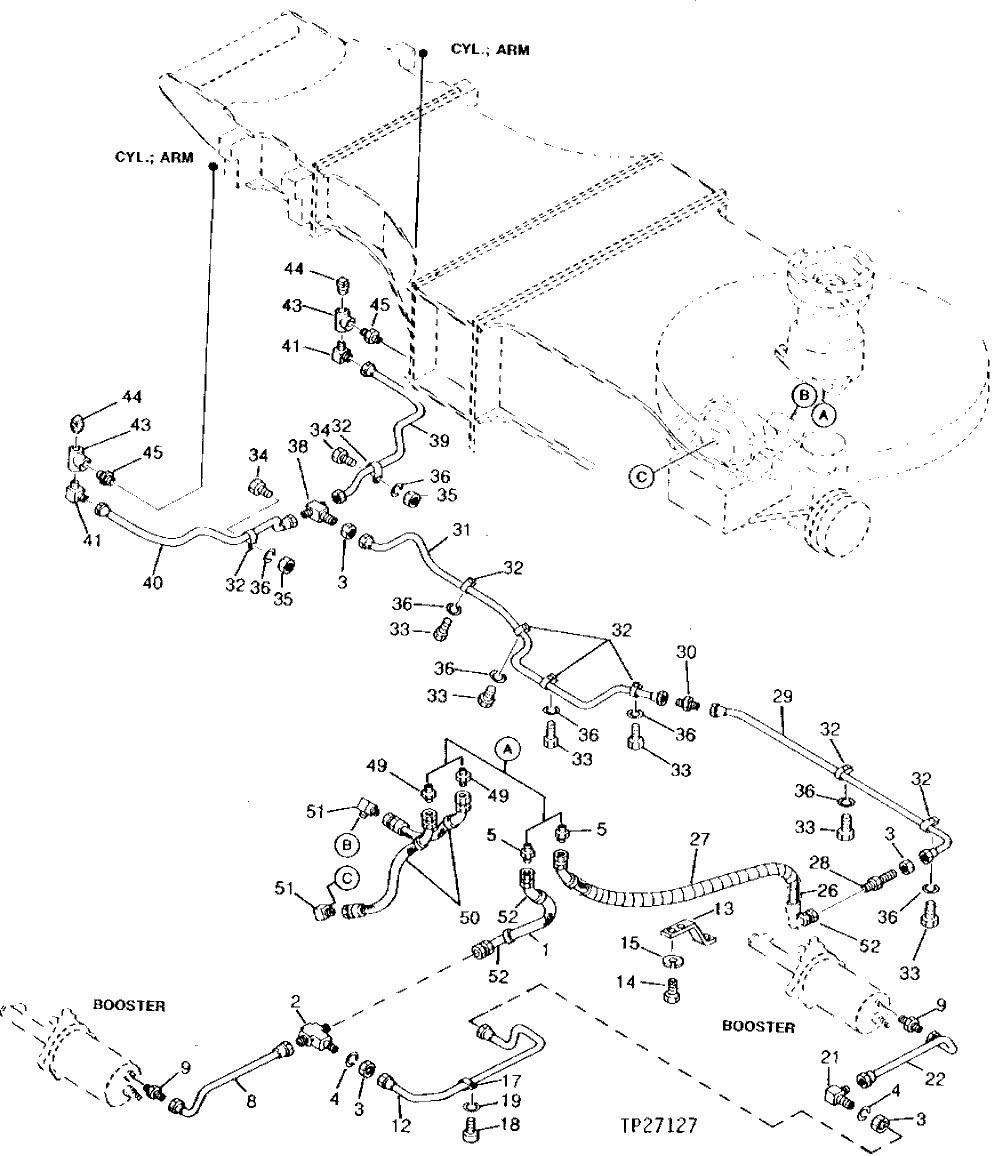

Запчасти John Deere 95 22 - AXLE LOCK AND BRAKE LINES AND HOSES 260 - AXLES AND SUSPENSION SYSTEMS 2

1

AR98204

HYDRAULIC HOSE

9/16" X 407 MM (16") X 9/16", (SUB FOR TH104380, ALONG WITH (2) AU43156)

1шт.

2

4186301

TEE FITTING

(SUB FOR TH104381)

1шт.

3

14M7289

NUT

M16

4шт.

4

12H294

LOCK WASHER

5/8", (SUB FOR TH100466)

2шт.

5

4186629

ADAPTER FITTING

(SUB FOR TH104379)

2шт.

8

8034956

OIL LINE

(SUB FOR TH104382)

1шт.

9

4178056

ADAPTER FITTING

(SUB FOR TH104383)

2шт.

12

8036000

OIL LINE

(SUB FOR TH105633)

1шт.

13

BRACKET

( TH104385 NOT AVAILABLE)

1шт.

14

19M7938

CAP SCREW

M10 X 20

2шт.

15

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

17

TH104034

CLAMP

1шт.

18

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

1шт.

19

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

1шт.

21

4179078

ELBOW FITTING

(SUB FOR TH104386)

1шт.

22

8034955

OIL LINE

(SUB FOR TH104387)

1шт.

26

AR86055

HYDRAULIC HOSE

9/16" X 622 MM (24-1/2") X 9/16", (SUB FOR TH104388, ALONG WITH AU43156)

1шт.

27

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

1шт.

28

4183224

ADAPTER FITTING

(SUB FOR TH104007)

1шт.

29

8028159

OIL LINE

(SUB FOR TH104389)

1шт.

30

4043941

ADAPTER FITTING

(SUB FOR TH104006)

1шт.

31

7015481

OIL LINE

(SUB FOR TH104390)

1шт.

32

TH104034

CLAMP

8шт.

33

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

6шт.

34

19M7077

CAP SCREW

M6 X 20

2шт.

35

14M7272

NUT

M6

2шт.

36

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

8шт.

38

4165921

TEE FITTING

(SUB FOR TH104391)

1шт.

39

8032267

OIL LINE

(SUB FOR TH104392)

1шт.

40

8032266

OIL LINE

(SUB FOR TH104393)

1шт.

41

4086584

ELBOW FITTING

(SUB FOR TH104012)

2шт.

43

94-0660

TEE FITTING

(SUB FOR TH104394)

2шт.

44

M800462

PLUG

(SUB FOR TH101049)

2шт.

45

T116057

FITTING

(SUB FOR TH101997)

2шт.

49

4186629

ADAPTER FITTING

(SUB FOR TH104379)

2шт.

50

AE25986

HYDRAULIC HOSE

9/16" X 497 MM (19-1/2") X 9/16", (SUB FOR TH104395)

2шт.

51

T115889

ELBOW FITTING

(SUB FOR TH101035)

2шт.

52

AU43156

ELBOW FITTING

3шт.
