Запчасти John Deere 95 1 - SINGLE TIRE AND RIM 111 - WHEELS 1

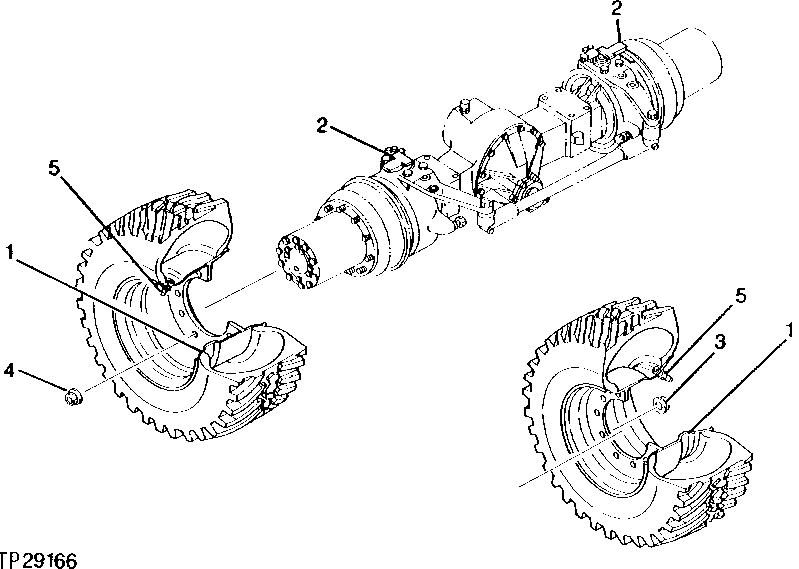

Схема запчастей John Deere 95 - 1 - SINGLE TIRE AND RIM 111 - WHEELS 1

Артикул

Название

Примечание

Количество

1

4181131

RIM

(SUB FOR TH104282) (USE WITH SINGLE 18.00 - 19.5 TIRE)

4шт.

2

4172079

COVER

(SUB FOR TH104284)

2шт.

3

4216723

FLANGE NUT

(RIGHT) (SUB FOR TH105199) (SUB FOR AT126669)

10шт.

4

4216724

FLANGE NUT

(LEFT) (SUB FOR TH105200) (SUB FOR AT126670)

10шт.

5

AT25226

TIRE VALVE STEM

4шт.

Выбрано товаров: 5
