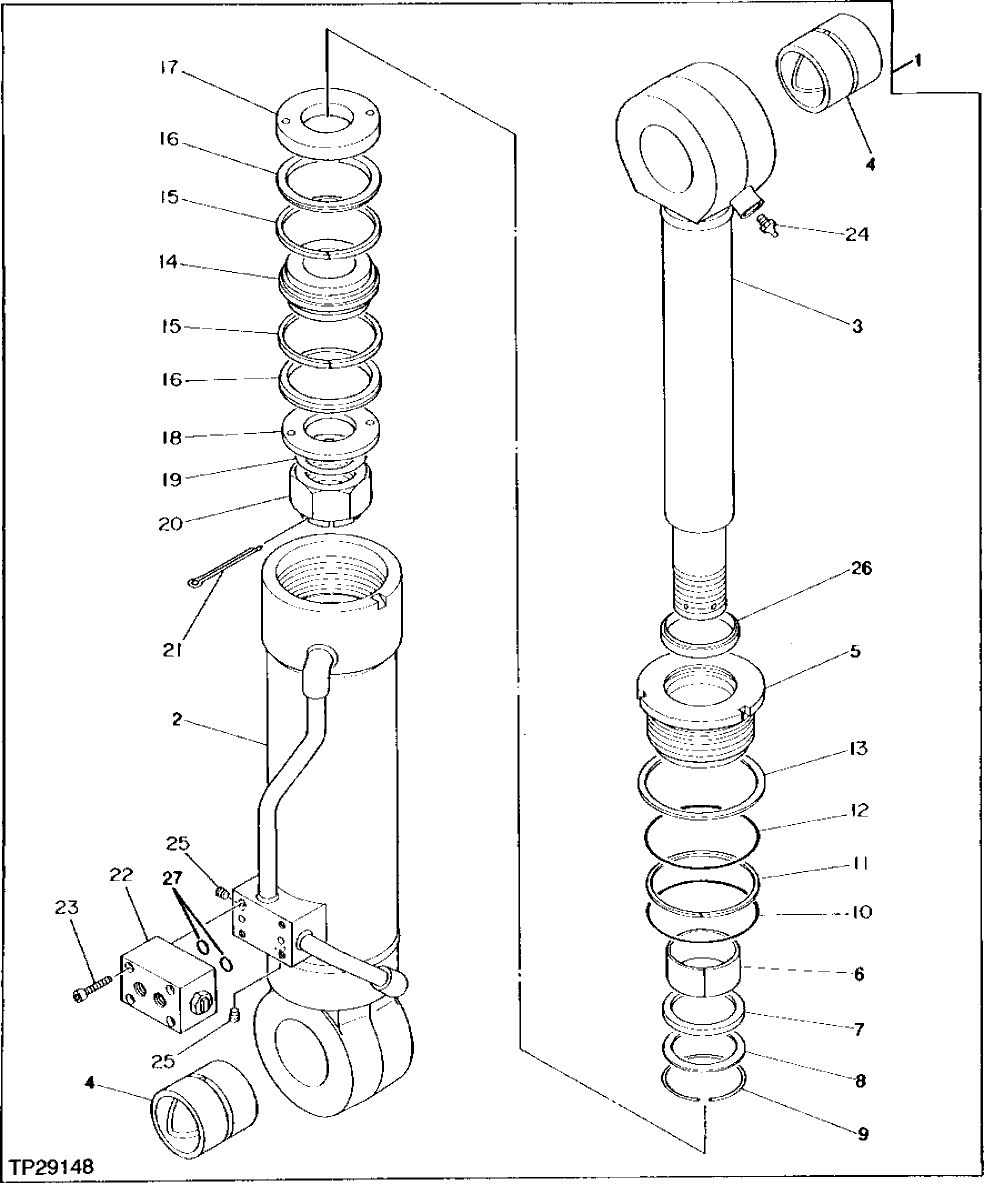

Запчасти John Deere 95 46 - STABILIZER CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

4149002

HYDRAULIC CYLINDER

(SUB FOR TH104290)

1шт.

2

0264901

HYDRAULIC CYLINDER

(SUB FOR TH105005) (BARREL WITH TUBES)

1шт.

3

0264902

ROD

(SUB FOR TH105006)

1шт.

4

3037285

BUSHING

(SUB FOR TH105007) (SUB FOR AT126134)

2шт.

5

0264904

HYDRAULIC CYLINDER CAP

(SUB FOR TH105008)

1шт.

6

AT264370

WEAR RING

(SUB FOR TH105009, 992614)

1шт.

7

AT264371

SEAL

(K) (SUB FOR TH105010, 0128606)

1шт.

8

0264905

SEAL

(SUB FOR TH105011)

1шт.

9

0264906

SNAP RING

(SUB FOR TH105012)

1шт.

10

TH102793

O-RING

(K)

1шт.

11

4510854

BACK-UP RING

(K) (SUB FOR TH105014)

1шт.

12

4049565

O-RING

(K) (SUB FOR TH105015)

1шт.

13

4508160

WASHER

(K) (SUB FOR TH105041) (SUB FOR AT130884)

1шт.

14

0239805

PISTON

(SUB FOR TH105017)

1шт.

15

4000032

PISTON RING

(SUB FOR TH105018)

2шт.

16

AT264372

SEAL

(K) (SUB FOR TH105019, 4085439)

2шт.

17

0141011

RETAINER

(SUB FOR TH105020)

1шт.

18

0146211

RETAINER

(SUB FOR TH105021)

1шт.

19

0239809

SOLID SHIM

(SUB FOR TH105022)

1шт.

20

4511919

NUT

(SUB FOR TH105023)

1шт.

21

11H260

COTTER PIN

3/8" X 4", (SUB FOR TH105024)

1шт.

22

0264908

CHECK VALVE

(SUB FOR TH105025)

1шт.

23

19M8131

SCREW

M10 X 70, (SUB FOR TH105026)

4шт.

24

TH100074

LUBRICATION FITTING

1шт.

25

94-2011

FITTING PLUG

(SUB FOR TH100434)

2шт.

26

0264907

SEAL

(K) (SUB FOR TH105013)

1шт.

27

CH10568

PACKING

(SUB FOR TH102668) (BETWEEN CHECK VALVE AND CYLINDER JUNCTION BLOCK)

2шт.
