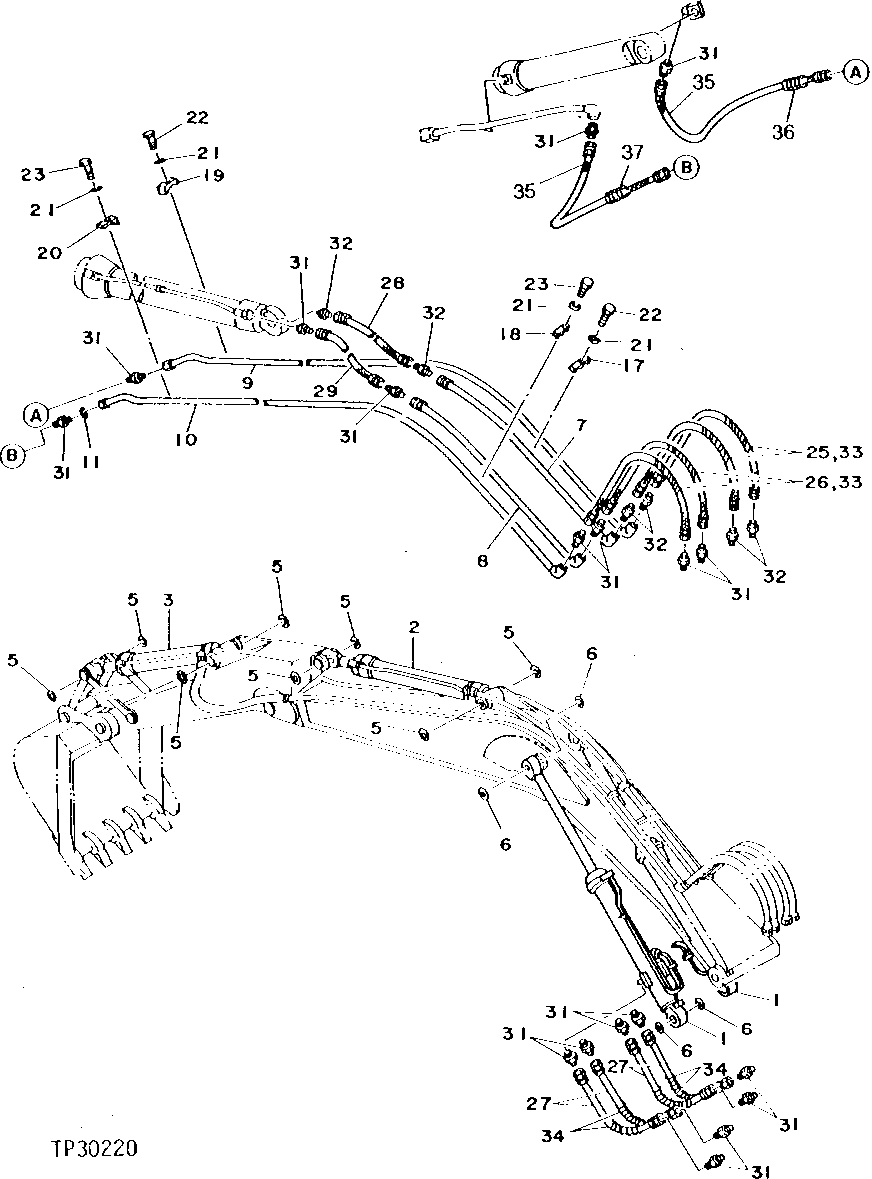

Запчасти John Deere 95 34 - BOOM AND ARM HYDRAULIC LINES AND HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

4193203

HYDRAULIC CYLINDER

(SUB FOR TH105582, AT264209)

2шт.

2

4193204

HYDRAULIC CYLINDER

(SUB FOR TH105583, AT264188)

1шт.

3

TH105584

HYDRAULIC CYLINDER

(USE IF AVAILABLE) (IF TH105584 NO LONGER AVAILABLE, SUB 4193205)

1шт.

4193205

HYDRAULIC CYLINDER

(REMANUFACTURED) (SUB FOR AT182464)

1шт.

5

TH100374

SEAL

8шт.

6

TH104472

SEAL

8шт.

7

9724384

OIL LINE

(SUB FOR TH104483)

1шт.

8

9724385

OIL LINE

(SUB FOR TH104484)

1шт.

9

8034361

OIL LINE

(SUB FOR TH104485)

1шт.

10

8034362

OIL LINE

(SUB FOR TH104486)

1шт.

11

4061743

WASHER

(SUB FOR TH101572)

1шт.

17

4053599

CLAMP

(SUB FOR TH101980)

2шт.

18

4053596

CLAMP

(SUB FOR TH100948)

2шт.

19

4053598

CLAMP

(SUB FOR TH101032)

2шт.

20

4053595

CLAMP

(SUB FOR TH100947)

2шт.

21

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

8шт.

22

19M8348

CAP SCREW

M12 X 65

4шт.

23

19M7362

CAP SCREW

M12 X 55

4шт.

25

4182718

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104487)

2шт.

26

4182716

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104488)

2шт.

27

4156474

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104489)

4шт.

28

4182717

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104490)

1шт.

29

4182714

HYDRAULIC HOSE

(SUB FOR TH104491)

1шт.

31

4154654

ADAPTER FITTING

(SUB FOR TH100942)

18шт.

32

4156432

ADAPTER FITTING

(SUB FOR TH101939)

6шт.

33

3052919

TUBE

(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)

4шт.

34

4053613

GUARD

(SUB FOR TH104492)

4шт.

35

4182611

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104494)

2шт.

36

4055189

GUARD

(SUB FOR TH104496) (LONG ARM)

2шт.

37

4053610

HOSE GUARD

(SUB FOR TH104495) (STANDARD ARM)

2шт.
