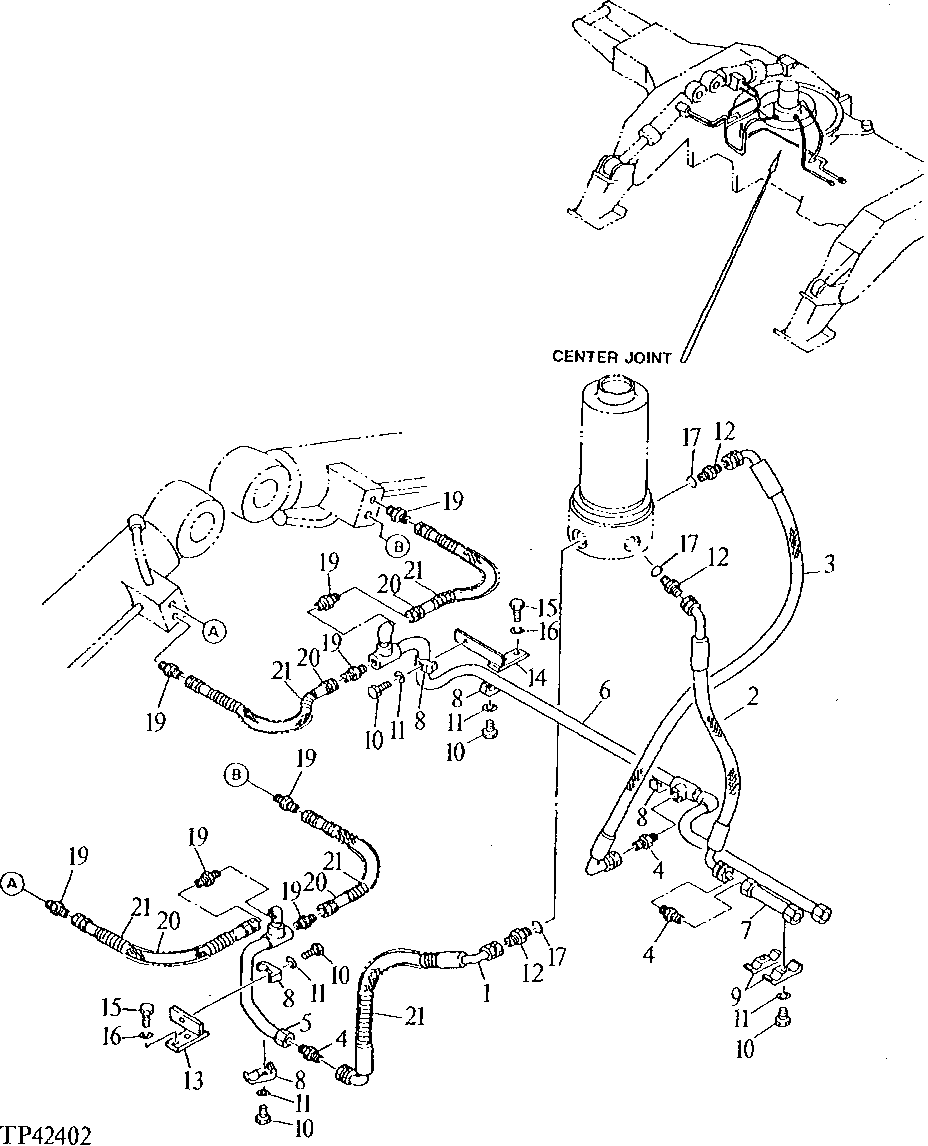

Запчасти John Deere 95 28 - STABILIZER HYDRAULIC LINES AND HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

4182729

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104300)

1шт.

2

4182728

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104301)

1шт.

3

4182727

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104302)

1шт.

4

4154654

ADAPTER FITTING

(SUB FOR TH100942)

3шт.

5

9724379

OIL LINE

(SUB FOR TH104303)

1шт.

6

7016403

OIL LINE

(SUB FOR TH104304)

1шт.

7

9724380

OIL LINE

(SUB FOR TH104305)

1шт.

8

4053595

CLAMP

(SUB FOR TH100947)

5шт.

9

4053596

CLAMP

(SUB FOR TH100948)

2шт.

10

19M7362

CAP SCREW

M12 X 55

7шт.

11

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

7шт.

12

T115822

ADAPTER FITTING

(SUB FOR TH103751, ALONG WITH TH100055)

3шт.

13

9719291

BRACKET

(SUB FOR TH104306)

1шт.

14

8028160

BRACKET

(SUB FOR TH104307)

1шт.

15

19M7402

CAP SCREW

M10 X 25

4шт.

16

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

17

4506424

O-RING

(SUB FOR TH100055)

3шт.

19

4154653

ADAPTER FITTING

(SUB FOR TH100989)

8шт.

20

TH101005

HYDRAULIC HOSE - FABRICATE

4шт.

21

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

5шт.
