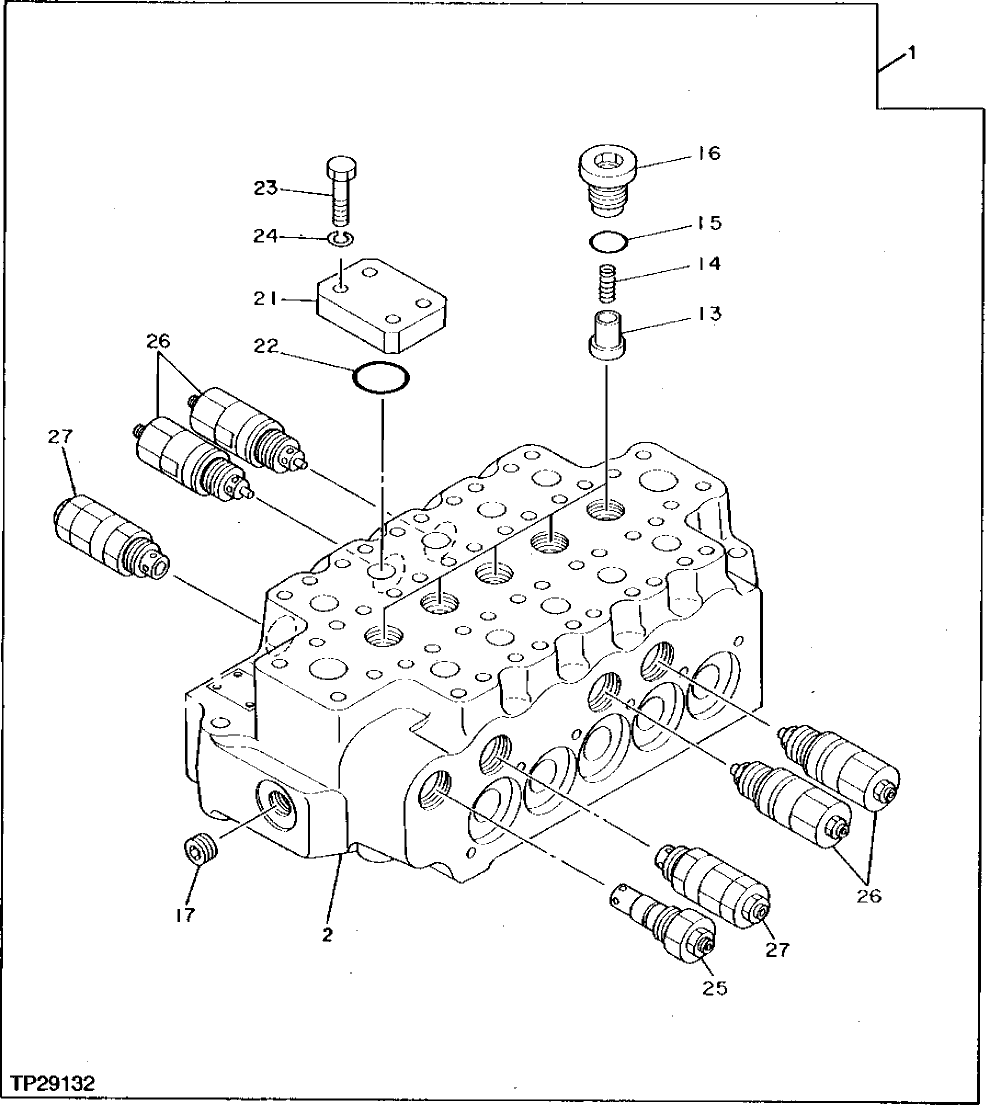

Запчасти John Deere 95 20 - LEFT FUNCTION CONTROL VALVE 3360 - BACKHOE AND EXCAVATOR 33

1

4149014

VALVE

(COMPLETE ASSEMBLY NOT SHOWN ON THIS PAGE, FOR ADDITIONAL COMPONENTS SEE FOLLOWING PAGE) (SUB FOR TH103743 AND AT186135)

1шт.

2

HOUSING

(SUB 4149014)

1шт.

13

0111711

POPPET

(SUB FOR TH102728)

5шт.

14

0224410

SPRING

(SUB FOR TH102729)

5шт.

15

U17409

O-RING

(SUB FOR TH102730)

5шт.

16

0224411

FITTING PLUG

(SUB FOR TH102731)

5шт.

17

0113504

PLUG

(SUB FOR TH102732)

1шт.

21

0224421

PLATE

(SUB FOR TH102735)

1шт.

22

A4730R

O-RING

1шт.

23

J901032

SCREW

(SUB FOR TH102737) (SUB FOR TH102040)

4шт.

24

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

25

4246520

RELIEF VALVE

(SUB FOR TH104758) (SUB FOR TH111999)

1шт.

26

4246521

RELIEF VALVE

(SUB FOR TH104759, THIS APPLICATION) (SUB FOR TH112003)

4шт.

27

4246523

RELIEF VALVE

(SUB FOR TH104760, THIS APPLICATION) (SUB FOR TH112001)

2шт.
