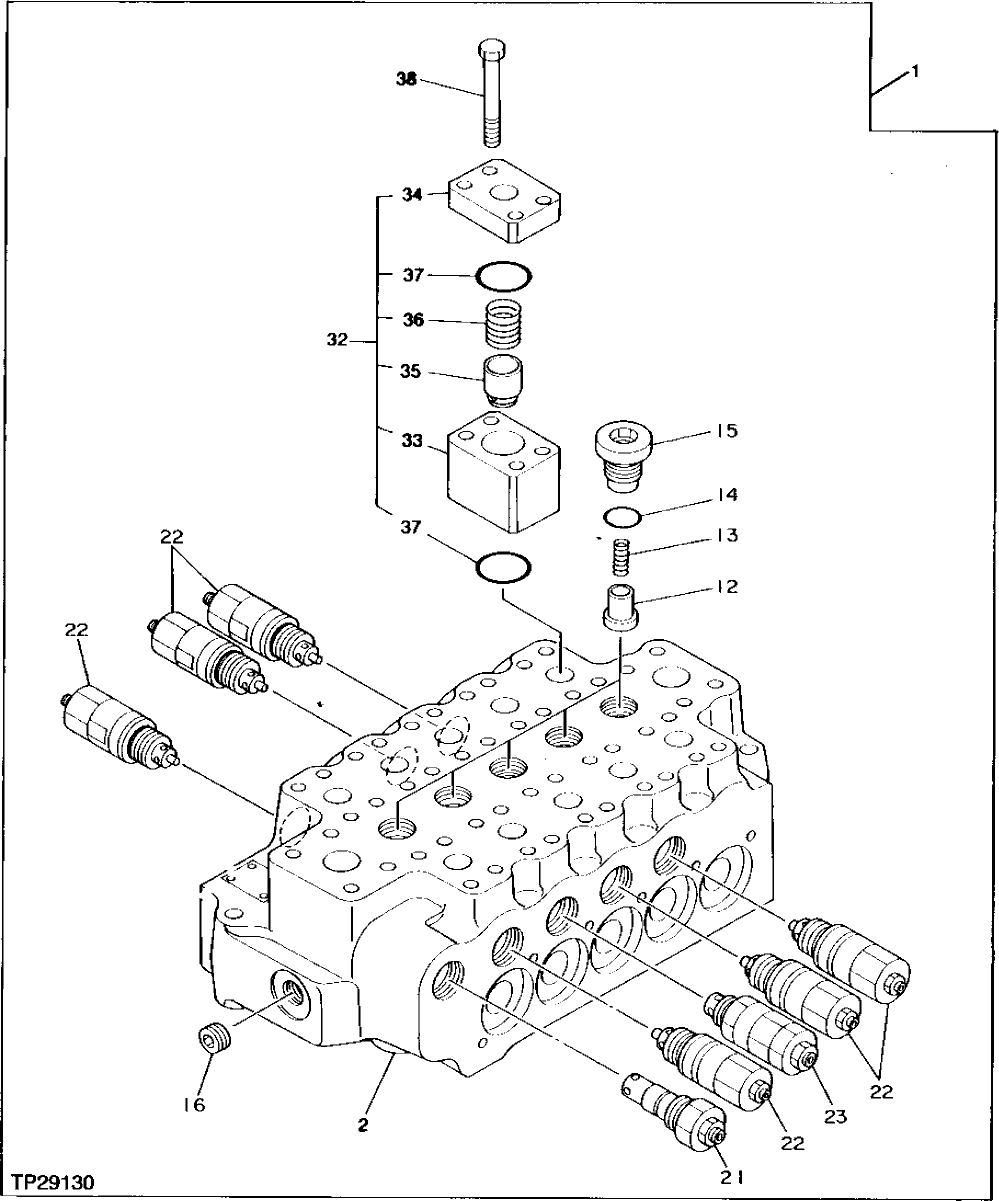

Запчасти John Deere 95 16 - RIGHT FUNCTION CONTROL VALVE 3360 - BACKHOE AND EXCAVATOR 33

1

4149013

VALVE

(COMPLETE ASSEMBLY NOT SHOWN ON THIS PAGE, FOR ADDITIONAL COMPONENTS SEE FOLLOWING PAGE) (SUB FOR TH103742 AND AT186096)

1шт.

2

HOUSING

(SUB 4149013)

1шт.

12

0111711

POPPET

(SUB FOR TH102728)

5шт.

13

0224410

SPRING

(SUB FOR TH102729)

5шт.

14

U17409

O-RING

(SUB FOR TH102730)

5шт.

15

0224411

FITTING PLUG

(SUB FOR TH102731)

5шт.

16

0113504

PLUG

(SUB FOR TH102732)

1шт.

21

4246520

RELIEF VALVE

(SUB FOR TH104758) (SUB FOR TH111999)

1шт.

22

4246521

RELIEF VALVE

(SUB FOR TH104759, THIS APPLICATION) (SUB FOR TH112003)

6шт.

23

4246522

RELIEF VALVE

(SUB FOR TH104760, THIS APPLICATION) (SUB FOR TH112000)

1шт.

32

0267801

CHECK VALVE

(SUB FOR TH104762)

1шт.

33

HOUSING

( TH104763 NO LONGER AVAILABLE)

1шт.

34

0267803

SPACER

(SUB FOR TH104764)

1шт.

35

0267804

FLOW CONTROL HYD. VALVE

(SUB FOR TH104765)

1шт.

36

0267805

SPRING

(SUB FOR TH104766)

1шт.

37

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

2шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

2шт.

38

19M8081

CAP SCREW

M10 X 80, (SUB FOR 19M7479)

2шт.
