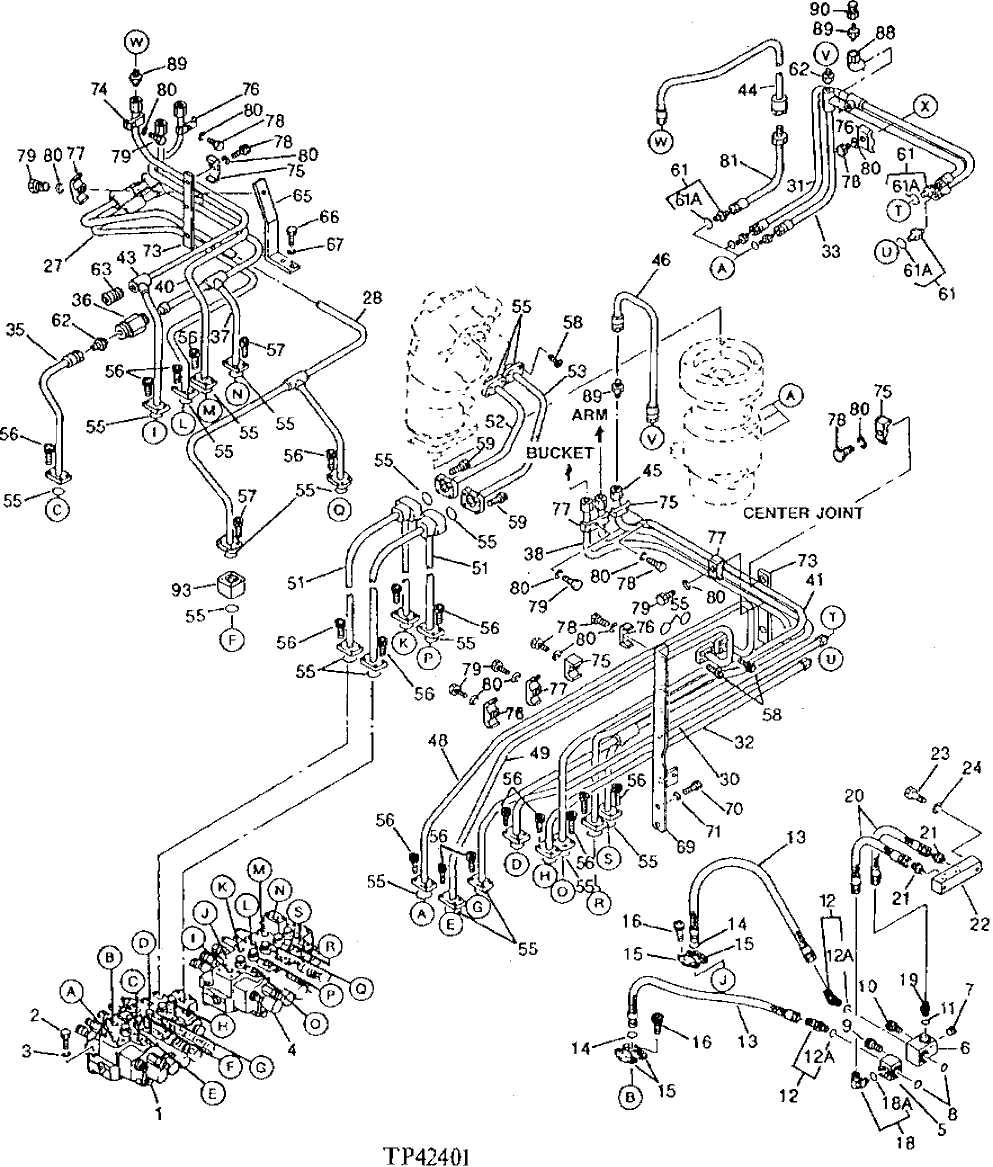

Запчасти John Deere 95 12 - HIGH PRESSURE HYDRAULIC LINES AND HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

4149014

VALVE

(SUB FOR TH103743 AND AT186135) (LEFT)

1шт.

2

J901201

BOLT

(SUB FOR TH101986)

6шт.

3

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

6шт.

4

4149013

VALVE

(RIGHT) (SUB FOR TH103742 AND AT186096)

1шт.

5

3022231

FLANGE FITTING

(SUB FOR TH103744)

1шт.

6

3039214

JUNCTION BLOCK

(SUB FOR TH103745) (SUB FOR TH110095)

1шт.

7

4036435

PIPE PLUG

(SUB FOR TH100487) (ALSO ORDER TH100055) (SUB FOR TH110096)

1шт.

4506424

O-RING

(USE WITH TH110096) (SUB FOR TH100055)

1шт.

8

A811030

O-RING

(SUB FOR TH101300)

2шт.

9

19M8339

SCREW

M10 X 55

4шт.

10

19M8340

SCREW

M10 X 65

4шт.

11

4506424

O-RING

(SUB FOR TH100055)

1шт.

12

4182739

ELBOW FITTING

(SUB FOR TH103749)

2шт.

12A

4506424

O-RING

(SUB FOR TH100055)

1шт.

13

4182730

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH103750)

2шт.

14

T78313

O-RING

(SUB FOR TH101988 OR H61355)

2шт.

15

4085560

FLANGE FITTING

(SUB FOR TH101960)

4шт.

16

19M8395

SCREW

M12 X 40

8шт.

18

4156435

ELBOW FITTING

(SUB FOR TH101989)

1шт.

18A

4506424

O-RING

(SUB FOR TH100055)

1шт.

19

T115822

ADAPTER FITTING

(SUB FOR TH103751, ALONG WITH TH100055)

1шт.

20

TH103752

HYDRAULIC HOSE - FABRICATE

2шт.

21

4154654

ADAPTER FITTING

(SUB FOR TH100942)

2шт.

22

4183086

JUNCTION BLOCK

(SUB FOR TH103753)

1шт.

23

19M8348

CAP SCREW

M12 X 65

2шт.

24

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

2шт.

27

7013453

OIL LINE

(SUB FOR TH103754)

1шт.

28

7016411

OIL LINE

(SUB FOR TH105598)

1шт.

30

8032307

OIL LINE

(SUB FOR TH103756)

1шт.

31

8034380

OIL LINE

(SUB FOR TH105599)

1шт.

32

8032309

OIL LINE

(SUB FOR TH103758)

1шт.

33

8032310

OIL LINE

(SUB FOR TH103759)

1шт.

35

8031824

OIL LINE

(SUB FOR TH103760)

1шт.

36

9023408

FLOW CONTROL HYD. VALVE

(SUB FOR TH100852)

1шт.

37

7016396

OIL LINE

(SUB FOR TH103761)

1шт.

38

7016397

OIL LINE

(SUB FOR TH103762)

1шт.

40

8034355

OIL LINE

(SUB FOR TH103763)

1шт.

41

7016398

OIL LINE

(SUB FOR TH103764)

1шт.

43

7017275

OIL LINE

(SUB FOR TH105600)

1шт.

44

8036412

OIL LINE

(SUB FOR TH105601)

1шт.

45

7017276

OIL LINE

(SUB FOR TH105602)

1шт.

46

9726018

OIL LINE

(SUB FOR TH105603)

1шт.

48

7013462

OIL LINE

(SUB FOR TH103769)

1шт.

49

7013463

OIL LINE

(SUB FOR TH103770)

1шт.

51

8032303

OIL LINE

(SUB FOR TH103771)

2шт.

52

8032304

OIL LINE

(SUB FOR TH103772)

1шт.

53

8032305

OIL LINE

(SUB FOR TH103773)

1шт.

55

AT264324

O-RING

(SUB FOR TH100044) (USE IF AVAILABLE)

26шт.

AT264324

O-RING

(SUB FOR T32587, TH100044)

26шт.

56

M341032

SCREW

(SUB FOR TH101301)

68шт.
