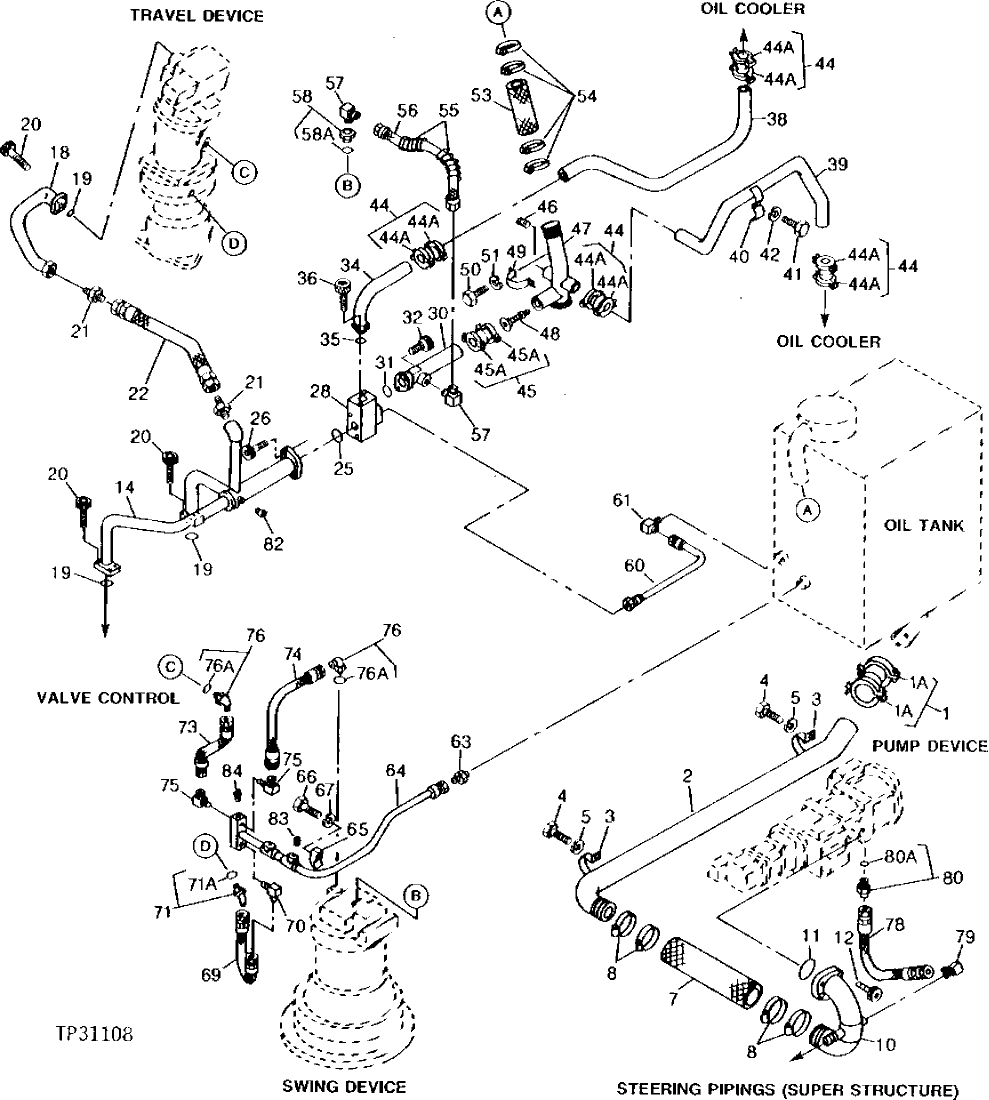

Запчасти John Deere 95 6 - LOW PRESSURE HYDRAULIC LINES AND HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

4071215

COUPLING

(SUB FOR TH101898)

1шт.

1A

4196267

SEAL

(SUB FOR TH106969)

2шт.

2

8034351

LINE

(SUB FOR TH103707)

1шт.

3

4000909

CLAMP

(SUB FOR TH101935)

2шт.

4

19M7938

CAP SCREW

M10 X 20

4шт.

5

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

7

4085066

HYDRAULIC HOSE

(SUB FOR TH103708)

1шт.

8

TY22488

HOSE CLAMP

(SUB FOR AR21842, THIS APPLICATION) (SUB FOR AH104837)

4шт.

10

8034352

LINE

(SUB FOR TH103709)

1шт.

11

CH11572

PACKING

(SUB FOR TH103710)

1шт.

12

19M8341

SCREW

M12 X 45

4шт.

14

8036411

OIL LINE

(SUB FOR TH105597)

1шт.

18

8034353

OIL LINE

(SUB FOR TH103715)

1шт.

19

CH14701

O-RING

(SUB FOR TH101914)

3шт.

20

19M8447

SCREW

(SUB FOR TH100941)

12шт.

21

4182733

ADAPTER FITTING

(SUB FOR TH103716)

2шт.

22

4182706

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH103717)

1шт.

25

CH11571

PACKING

(SUB FOR TH102358)

1шт.

26

19M8448

SCREW

(SUB FOR TH101907)

4шт.

28

4172205

VALVE

(SUB FOR TH103719)

1шт.

30

9721785

OIL TUBE

(SUB FOR TH103720)

1шт.

31

CH11436

O-RING

(SUB FOR TH100004)

1шт.

32

19M8448

SCREW

(SUB FOR TH101907)

2шт.

34

9721786

OIL TUBE

(SUB FOR TH103721)

1шт.

35

CH14701

O-RING

(SUB FOR TH101914)

1шт.

36

19M8168

SCREW

M12 X 25

2шт.

38

4183056

TUBE

(SUB FOR TH103723)

1шт.

39

3034176

TUBE

(SUB FOR TH103724)

1шт.

40

4053696

CLAMP

(SUB FOR TH102946)

1шт.

41

19M8348

CAP SCREW

M12 X 65

1шт.

42

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

1шт.

44

4069801

COUPLING

(SUB FOR TH101915)

4шт.

44A

4196259

SEAL

(SUB FOR TH106966)

2шт.

45

4067834

COUPLING

(SUB FOR TH102945)

1шт.

45A

4196260

SEAL

(SUB FOR TH106967)

2шт.

46

94-2026

PLUG

(SUB FOR TH101903)

1шт.

47

8031337

TUBE

(SUB FOR TH103726)

1шт.

48

4150829

VALVE

(SUB FOR TH103727)

1шт.

49

4053865

CLAMP

(SUB FOR TH103646)

1шт.

50

19M7938

CAP SCREW

M10 X 20

2шт.

51

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

53

4094001

HOSE

(SUB FOR TH103728)

1шт.

54

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999 OR TH101728)

4шт.

55

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

2шт.

56

TH112256

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH103729)

1шт.

57

94-1404

ELBOW FITTING

(SUB FOR TH103730)

2шт.
