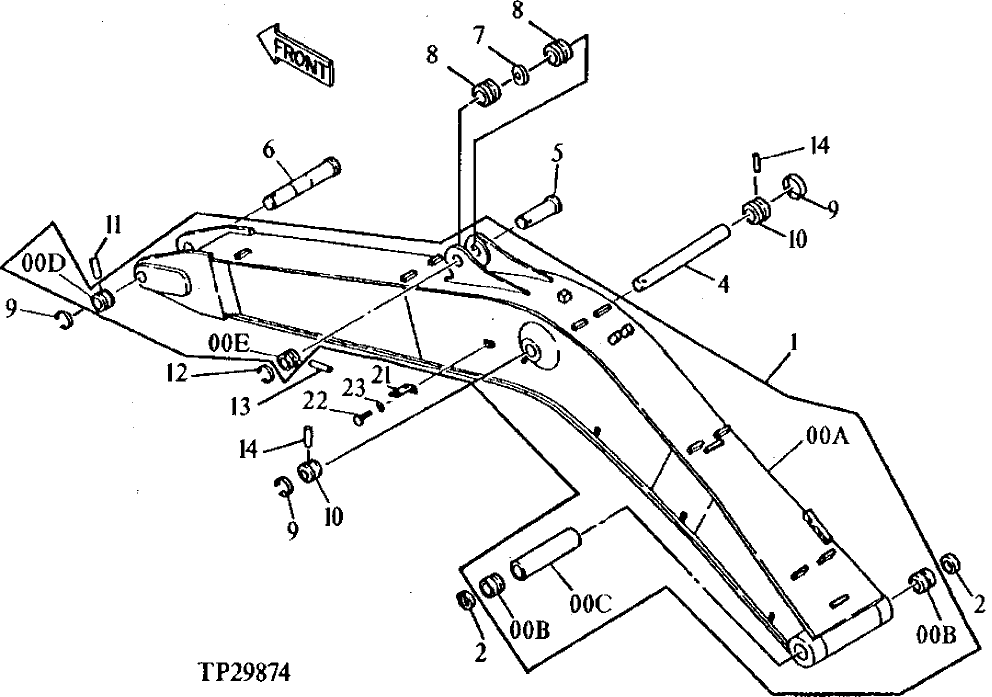

Запчасти John Deere 95 4 - REPLACEMENT BOOM 3340 - BACKHOE AND EXCAVATOR 33

0A

EXCAVATOR BOOM

(SUB AP34274)

1шт.

0B

3037285

BUSHING

(SUB FOR AT126134)

2шт.

0C

4107836

SPACER

(SUB FOR TH104451)

1шт.

0D

TH104406

STOP

1шт.

0E

T104251

BUSHING

1шт.

1

AP34274

EXCAVATOR BOOM

(CONVENIENCE ASSEMBLY) (SUB FOR AT126951)

1шт.

2

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

2шт.

4

AT128316

PIN FASTENER

(SUB FOR TH104453)

1шт.

5

AT126131

PIN

(SUB FOR TH104454)

1шт.

6

AT185312

PIN

(SUB FOR TH104455 OR AT126128)

1шт.

7

4075359

WASHER

(1.0 X 066 X 140) (SUB FOR TH101314)

1шт.

4075360

WASHER

(2.0 X 066 X .40) (SUB FOR TH101315)

1шт.

8

T85349

BUSHING

2шт.

9

4098716

RING

(SUB FOR TH103631)

3шт.

10

TH104406

STOP

2шт.

11

4106307

PIN

(SUB FOR TH104411)

1шт.

12

4065688

RETAINER

(SUB FOR TH100624)

1шт.

13

4065689

PIN FASTENER

(SUB FOR TH100625)

1шт.

14

4185497

PIN

(SUB FOR TH105634)

2шт.

21

4224631

BRACKET

(SUB FOR TH111685)

1шт.

22

J901425

CAP SCREW

(SUB FOR TH104071)

1шт.

23

12H317

LOCK WASHER

9/16"

1шт.
