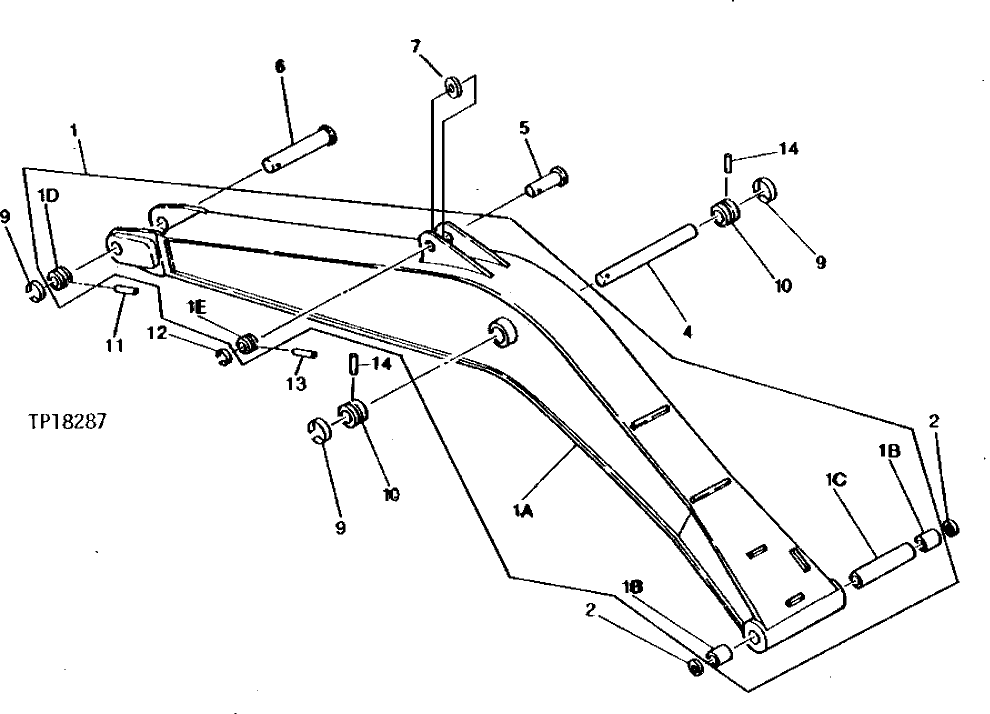

Запчасти John Deere 95 2 - BOOM 3340 - BACKHOE AND EXCAVATOR 33

1

EXCAVATOR BOOM

( TH104448 NO LONGER AVAILABLE) ( AT126951 NO LONGER AVAILABLE) (SUB AP34274, ALONG WITH (2) T85349, AND T107626)

1шт.

1A

EXCAVATOR BOOM

1шт.

1B

3037285

BUSHING

(SUB FOR TH105635) (SUB FOR AT126134)

2шт.

1C

4107836

SPACER

(SUB FOR TH104451)

1шт.

1D

TH104406

STOP

1шт.

1E

4124573

BUSHING

(SUB FOR TH104452) (SUB FOR TH100368) (LOCKING COLLAR)

1шт.

2

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

2шт.

4

AT128316

PIN FASTENER

(SUB FOR TH104453)

1шт.

5

AT126131

PIN

(SUB FOR TH104454)

1шт.

6

AT185312

PIN

(SUB FOR TH104455 OR AT126128)

1шт.

7

4075359

WASHER

(1.0 X 066 X 140) (SUB FOR TH101314)

1шт.

4075360

WASHER

(2.0 X 066 X .40) (SUB FOR TH101315)

1шт.

9

4098716

RING

(SUB FOR TH103631)

3шт.

10

TH104406

STOP

2шт.

11

4106307

PIN

(SUB FOR TH104411)

1шт.

12

4065688

RETAINER

(SUB FOR TH100624)

1шт.

13

4065689

PIN FASTENER

(SUB FOR TH100625)

1шт.

14

4185497

PIN

(SUB FOR TH105634)

2шт.
