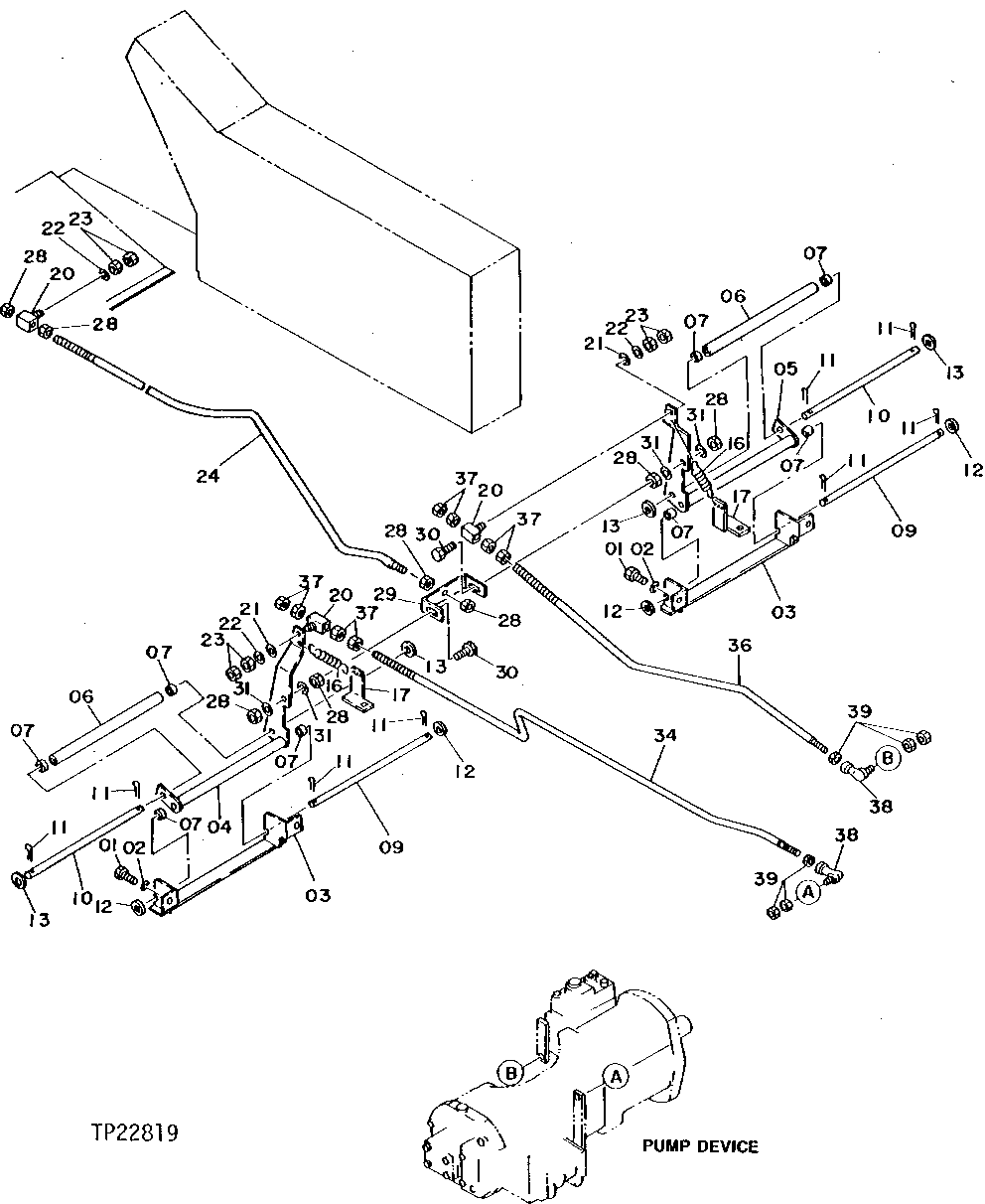

Запчасти John Deere 95 22 - PUMP CONTROL LEVER 3315 - BACKHOE AND EXCAVATOR 33

1

19M7402

CAP SCREW

M10 X 25

4шт.

2

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

3

8027797

SUPPORT

(SUB FOR TH102051)

2шт.

4

8027178

LEVER

(SUB FOR TH103882)

1шт.

5

8027179

LEVER

(SUB FOR TH103883)

1шт.

6

4129001

BUSHING

(SUB FOR TH102057)

2шт.

7

984597

BALL BEARING

(SUB FOR TH102068)

8шт.

9

4128997

PIN FASTENER

(SUB FOR TH102061)

2шт.

10

4128998

PIN FASTENER

(SUB FOR TH102062)

2шт.

11

11M7099

COTTER PIN

2 X 12 MM, (SUB FOR TH102069)

8шт.

12

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

4шт.

13

24M7047

WASHER

13 X 24 X 2.500 MM

4шт.

16

4501982

EXTENSION SPRING

(SUB FOR TH102074)

2шт.

17

4172168

BRACKET

(SUB FOR TH103884)

2шт.

20

487345

JUNCTION BLOCK

(SUB FOR TH102070)

3шт.

21

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

2шт.

22

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

3шт.

23

14M7272

NUT

M6

6шт.

24

3031906

ROD

(SUB FOR TH103885)

1шт.

28

14M7273

NUT

M8

8шт.

29

4148006

BRACKET

(SUB FOR TH103886)

1шт.

30

19M7513

CAP SCREW

M8 X 30, (SUB FOR 19M7288)

2шт.

31

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

4шт.

34

3034190

ROD

(SUB FOR TH103888)

1шт.

36

3034191

ROD

(SUB FOR TH103889)

1шт.

37

14M7273

NUT

M8

8шт.

38

4056017

BALL JOINT

(SUB FOR TH102073)

2шт.

39

14M7272

NUT

M6

6шт.
