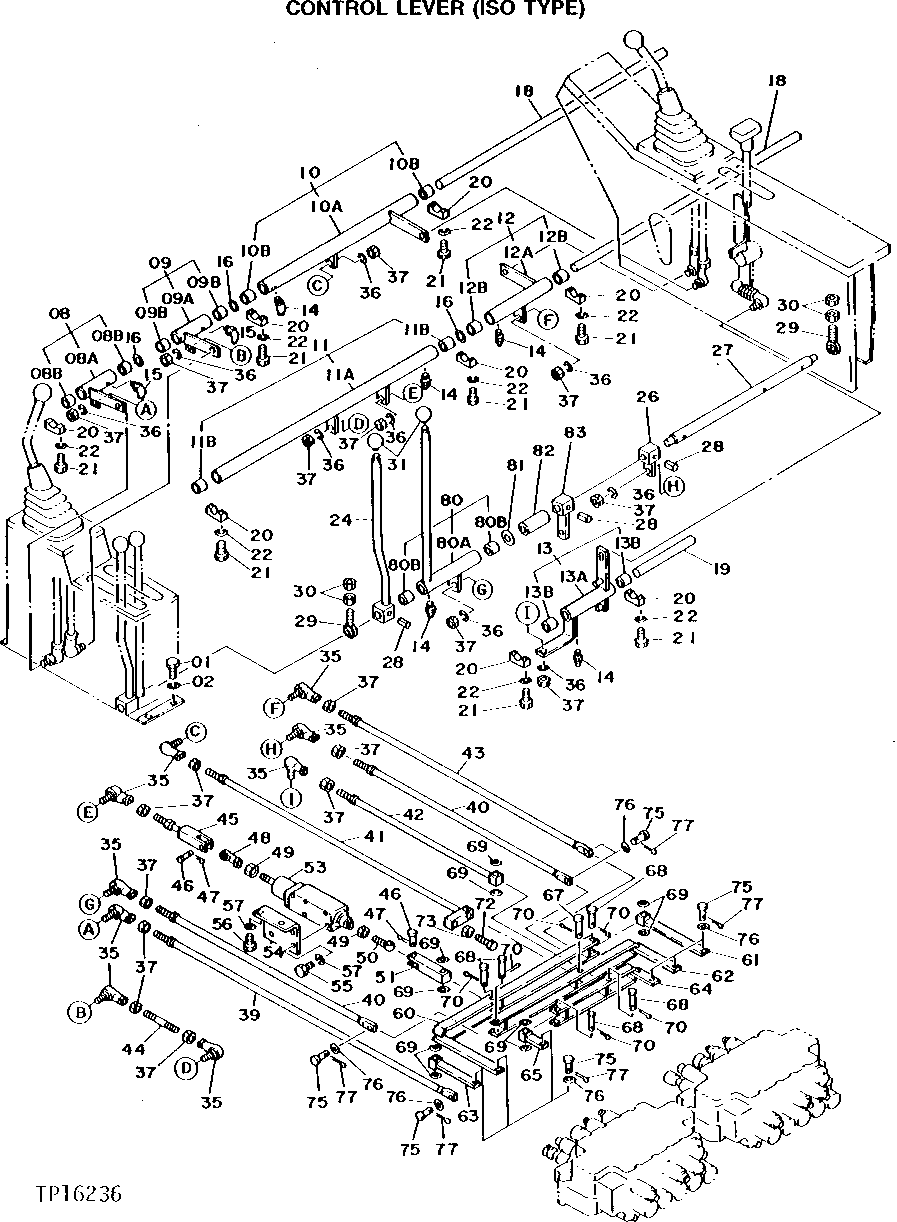

Запчасти John Deere 95 14 - CONTROL LEVER 3315 - BACKHOE AND EXCAVATOR 33

44

4156125

STUD

(SUB FOR TH102045)

1шт.

45

9722630

YOKE

(SUB FOR TH103842)

1шт.

46

45M7084

PIN FASTENER

12 X 35 MM, (SUB FOR TH100309)

2шт.

47

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR TH100310) (SUB FOR 11M7021)

2шт.

48

4064578

LINK END

(SUB FOR TH102028)

1шт.

49

14M7275

NUT

M12

2шт.

50

4505510

LINK END

(SUB FOR TH102024)

1шт.

51

4131407

YOKE

(SUB FOR TH102023)

1шт.

53

VALVE

( TH102025 NO LONGER AVAILABLE - SUB COMPONENTS)

1шт.

54

4148002

BRACKET

(SUB FOR TH103843)

1шт.

55

19M7938

CAP SCREW

M10 X 20

4шт.

56

19M7402

CAP SCREW

M10 X 25

2шт.

57

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

6шт.

60

8027175

LINK

(SUB FOR TH103844)

1шт.

61

9718468

LINK

(SUB FOR TH103845)

1шт.

62

8029736

LINK

(SUB FOR TH103846)

1шт.

63

9718469

LINK

(SUB FOR TH103847)

1шт.

64

8028127

LINK

(SUB FOR TH103848)

1шт.

65

9719259

LINK

(SUB FOR TH103849)

1шт.

67

4153699

PIN FASTENER

(SUB FOR TH103850)

1шт.

68

4071791

PIN FASTENER

(SUB FOR TH102016)

5шт.

69

24M7053

WASHER

17 X 30 X 3 MM, (SUB FOR TH100520)

10шт.

70

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR TH102017) (SUB FOR 11M7021)

6шт.

72

19M7073

CAP SCREW

M12 X 50, (SUB FOR TH103851 ALONG WITH 12M7067)

1шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

1шт.

73

14M7275

NUT

M12

1шт.

75

4131437

PIN FASTENER

(SUB FOR TH102011) (SUB FOR P54311)

10шт.

76

WASHER

(TH103852 NO LONGER AVAILABLE)

ARшт.

77

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH100264) (SUB FOR 11M7081)

10шт.

80

9064820

LEVER

(SUB FOR TH105561)

1шт.

80A

LEVER

(SUB TH105561)

1шт.

80B

4063692

NEEDLE BEARING

(SUB FOR TH103818)

2шт.

81

24M7051

WASHER

21 X 37 X 3 MM

1шт.

82

4183283

SPACER

(SUB FOR TH105562)

1шт.

83

9724234

LEVER

(SUB FOR TH105563)

1шт.
