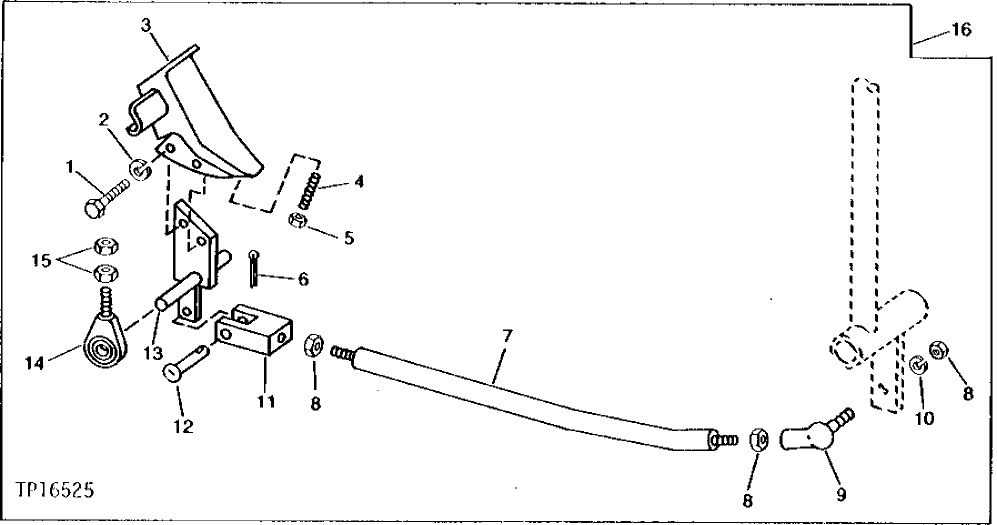

Запчасти John Deere 95 11 - AUXILIARY VALVE FOOT CONTROL KIT 3315 - BACKHOE AND EXCAVATOR 33

1

19M7662

CAP SCREW

M10 X 30

2шт.

2

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

3

2019420

PEDAL

(SUB FOR TH101226)

1шт.

4

4172075

STUD

(SUB FOR TH103786)

1шт.

5

14M7274

NUT

M10

1шт.

6

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR TH100310) (SUB FOR 11M7021)

1шт.

7

ROD

(CONTROL ROD) (SUB TH105675)

1шт.

8

M501210

NUT

(SUB FOR TH100312)

3шт.

9

4056020

BALL JOINT

(SUB FOR TH100311)

1шт.

10

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

1шт.

11

END

(SUB TH105675) (YOKE)

1шт.

12

45M7084

PIN FASTENER

12 X 35 MM, (SUB FOR TH100309)

1шт.

13

PIVOT

(BRACKET) (SUB TH105675)

1шт.

14

4086698

TIE ROD END

(SUB FOR TH103837)

2шт.

15

14M7276

NUT

M16, (SUB FOR TH101725)

4шт.

16

TH105675

KIT

1шт.
