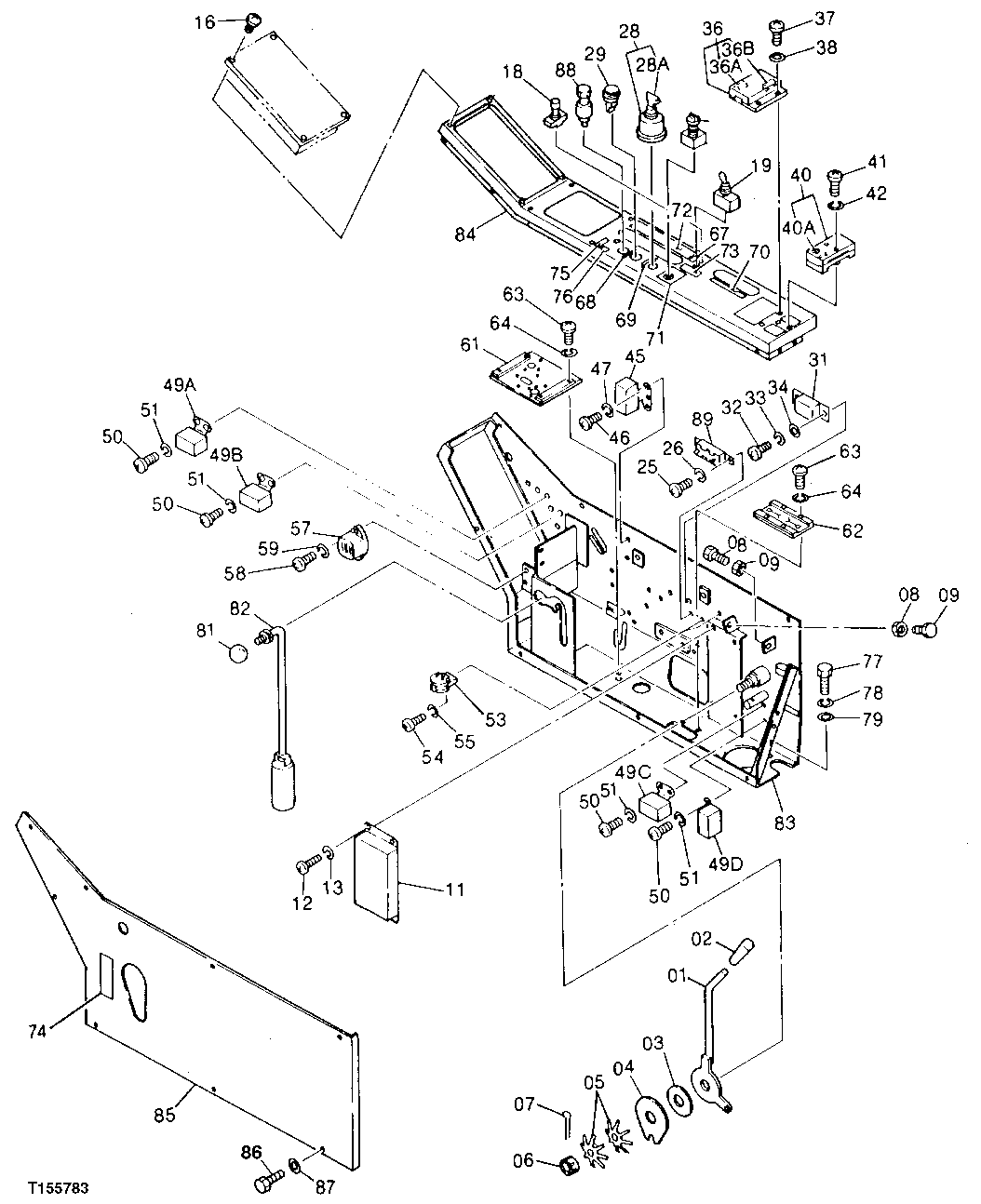

Запчасти John Deere 95 8 - CONTROL BOX AND SWITCHES 3315 - BACKHOE AND EXCAVATOR 33

71

4121153

LABEL

(SUB FOR TH100577) (HEATER SWITCH)

1шт.

72

4191688

LABEL

(SUB FOR TH105637) (FORWARD-REVERSE LEVER)

1шт.

73

4172384

LABEL

(SUB FOR TH104058) (HIGH-LOW SWITCH)

1шт.

74

4147525

LABEL

(SUB FOR TH100597) (SWING LOCK)

1шт.

75

4210039

LABEL

(SUB FOR TH102136) (SUB FOR TH111033) (ENGINE STOP)

1шт.

76

4171727

LABEL

(SUB FOR TH104059) (SUB FOR TH103461) (FUEL CUTOFF)

1шт.

77

19M7402

CAP SCREW

M10 X 25

6шт.

78

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

6шт.

79

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

6шт.

80

4110100

SWITCH

(SUB FOR TH101087) (ROTARY - HEATER)

1шт.

80A

4184463

KNOB

(SUB FOR TH103612)

1шт.

81

8032332

LEVER

(SUB FOR TH104060) (SWING LOCK)

1шт.

82

4143169

KNOB

(SUB FOR TH100268)

1шт.

83

6007126

STAND

(K) (SUB FOR TH104038)

1шт.

84

6007590

PANEL

(K) (SUB FOR TH104039)

1шт.

85

2020834

COVER

(K) (SUB FOR TH104040)

1шт.

86

19M7300

CAP SCREW

(K) M6 X 10

14шт.

87

24M7250

WASHER

(K) 6.400 X 17 X 3 MM, (SUB FOR TH100560)

14шт.

88

AR60937

ELECTRICAL LIGHTER

(SUB FOR TH104044) (LIGHTER) (12 VOLT) (ALSO REQUIRES AU42809, AT78634, AND AT78633)

1шт.

AT78633

HOUSING

(SUB FOR 4115360) (ALSO ORDER AR60937 AND AT78634 AND AU42809) (12 VOLT)

1шт.

4357862

ELECTRICAL LIGHTER

(SUB FOR AT190190) (24 VOLT) (NOT ILLUSTRATED)

1шт.

89

AU42809

RESISTOR

(SUB FOR TH104045) (12 VOLT)

1шт.

AT78634

WIRING LEAD

(PANEL) (12 VOLT)

1шт.
