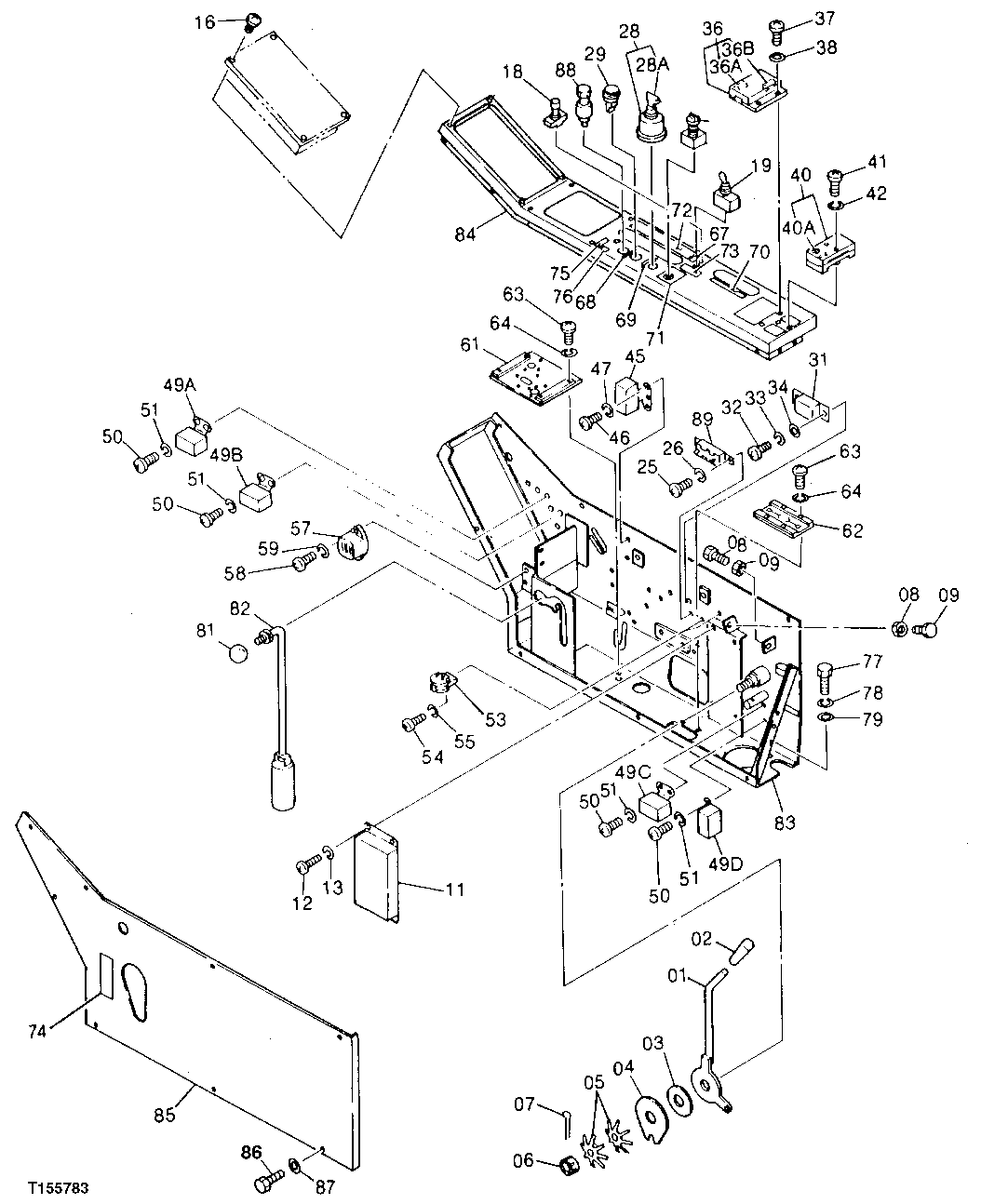

Запчасти John Deere 95 6 - CONTROL BOX AND SWITCHES 3315 - BACKHOE AND EXCAVATOR 33

1

8032331

LEVER

(SUB FOR TH104041)

1шт.

2

4162336

GRIP

(SUB FOR TH100561)

1шт.

3

428770

WASHER

(SUB FOR TH100562)

1шт.

4

4053155

PLATE

(SUB FOR TH100563)

1шт.

5

4502974

WASHER

(SUB FOR TH100564)

2шт.

6

M631619

NUT

(SUB FOR TH100565)

1шт.

7

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR TH100566) (SUB FOR 11M7023)

1шт.

8

19M7382

CAP SCREW

M10 X 40, (SUB FOR 19M7183)

2шт.

9

14M7274

NUT

M10

2шт.

11

4151433

MICROPROCESSOR

(SUB FOR TH104043)

1шт.

12

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

4шт.

13

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

4шт.

16

21M7326

SCREW

M6 X 20, (SUB FOR TH100573)

4шт.

18

4266984

SWITCH

(SUB FOR TH100574) (PUSH BUTTON - BUZZER STOP)

1шт.

19

AT83721

TOGGLE/ROCKER SWITCH

(HIGH-LOW)

1шт.

25

21M7394

SCREW

(SUB FOR TH100579)

2шт.

26

12H233

LOCK WASHER

3.175 MM, (SUB FOR TH100580) (SUB FOR 12M7048)

2шт.

28

4237505

SWITCH

(SUB FOR TH102139, TH108551 OR 4186744) (IGNITION)

1шт.

28A

4112457

KEY

(USE WITH TH102139) (SUB FOR TH103383)

1шт.

AT194969

KEY

(SUB FOR TH108552 AND AT147803) (USE WITH TH108551, 4186744 OR 4237505)

1шт.

29

4155755

SWITCH

(SUB FOR TH101582) (PUSH BUTTON - STARTING AID)

1шт.

31

4155754

RESISTOR

(SUB FOR TH101583)

1шт.

32

M340310

SCREW

(SUB FOR TH104046)

2шт.

33

12H233

LOCK WASHER

3.175 MM, (SUB FOR TH100580) (SUB FOR 12M7048)

2шт.

34

24M7029

SHIM

0.500 MM, (SUB FOR TH100611)

2шт.

36

4123095

FUSE BOX

(SUB FOR TH100582)

1шт.

LABEL

( TH106941 NO LONGER AVAILABLE)

1шт.

36A

AT39227

FUSE

(SUB FOR TH104047) (15 AMP)

7шт.

36B

AH84167

FUSE

(SUB FOR TH104048) (30 AMP)

1шт.

36C

4202492

COVER

(SUB FOR TH110107)

1шт.

37

21M7246

SCREW

M6 X 16, (SUB FOR TH100583)

2шт.

38

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100584)

2шт.

40

4155319

FUSE BOX

(SUB FOR TH104049)

1шт.

4193216

LABEL

(SUB FOR TH106940)

1шт.

40A

AT39227

FUSE

(SUB FOR TH104047) (40 AMP)

6шт.

41

21M7278

SCREW

M5 X 10

2шт.

42

12M7064

LOCK WASHER

5 MM, (SUB FOR TH100519)

2шт.

45

4505392

RELAY

(SUB FOR TH100585) (HORN)

1шт.

46

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

2шт.

47

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

49A

4149142

RELAY

(SUB FOR TH104050) PARK BRAKE RELAY NO. 1

1шт.

49B

4149142

RELAY

(SUB FOR TH104050) PARK BRAKE RELAY NO. 2

1шт.

49C

4149142

RELAY

(SUB FOR TH104050) NEUTRAL START

1шт.

49D

4149142

RELAY

(SUB FOR TH104050) PARK LAMP

1шт.

50

21M7278

SCREW

M5 X 10

8шт.

51

12M7064

LOCK WASHER

5 MM, (SUB FOR TH100519)

8шт.

53

4215003

FLASHER

(SUB FOR TH104051) TURN SIGNAL AND EMERGENCY (FOUR-WAY) FLASHER

2шт.

4215003

FLASHER

(SUB FOR TH111887)

2шт.

54

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

2шт.

55

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

57

970879

AUDIBLE WARNING ALARM

(SUB FOR TH104052)

1шт.

58

21M7250

SCREW

M4 X 12

2шт.

59

12H315

LOCK WASHER

4.166 MM, (SUB FOR TH101147) (SUB FOR 12M7063)

2шт.

61

9722631

PLATE

(SUB FOR TH104054)

1шт.

62

9722632

PLATE

(SUB FOR TH104055)

1шт.

63

J900614

BOLT

(SUB FOR TH104056)

8шт.

64

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

8шт.

67

4192738

LABEL

(SUB FOR TH100593) (BUZZER STOP)

1шт.

68

4158722

SAFETY SIGN

(SUB FOR TH101585) (STARTING AID)

1шт.

69

4156660

LABEL

(SUB FOR TH101586) (STARTER SWITCH)

1шт.

70

4146722

LABEL

(SUB FOR TH100596) (ENGINE LEVER)

1шт.
