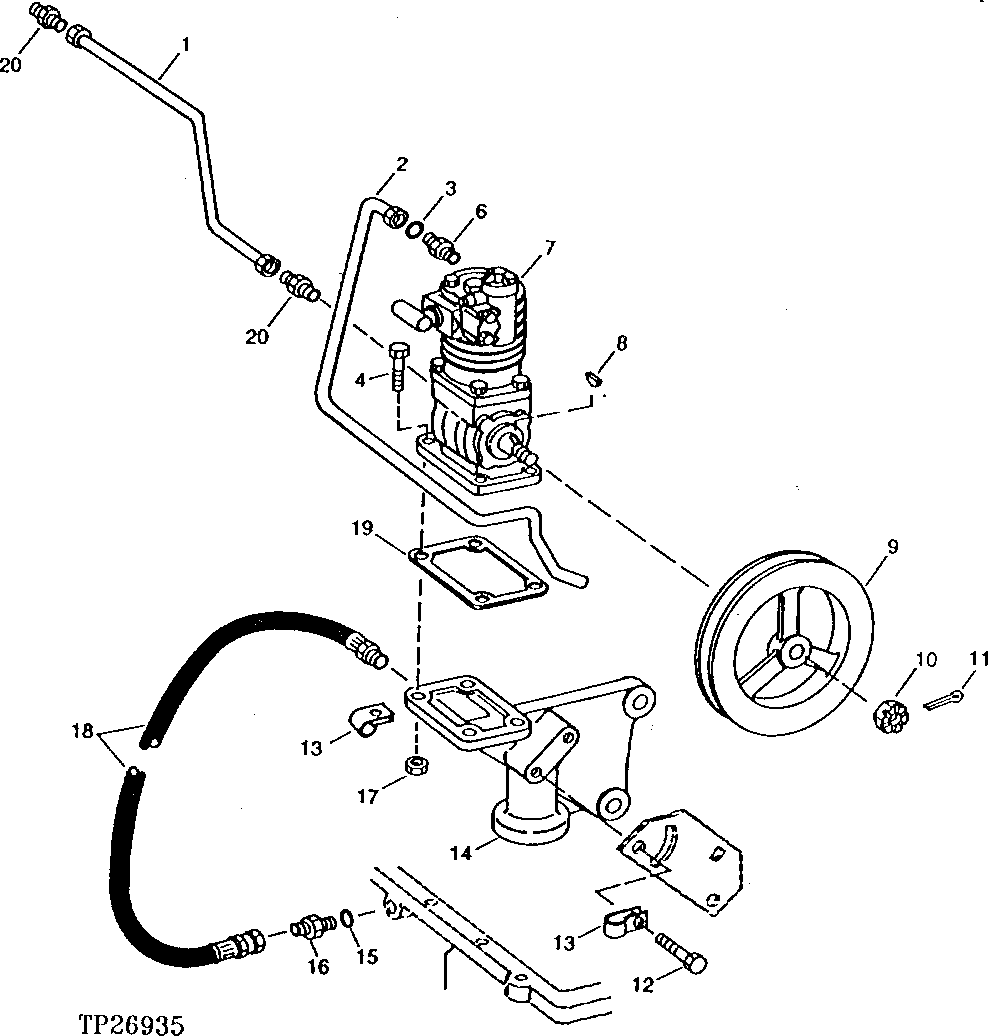

Запчасти John Deere 95 2 - AIR COMPRESSOR, LINES, HOSE AND MOUNTING BRACKET 2261 - VEHICLE PNEUMATIC SYSTEMS 22

1

RE22471

OIL LINE

1шт.

2

AT105718

OIL TUBE

1шт.

3

T40308

O-RING

1шт.

4

19M8162

SCREW

M10 X 40

4шт.

6

M87683

ADAPTER FITTING

1шт.

7

RE28820

COMPRESSOR

(SUB FOR RE18628)

1шт.

8

SHAFT KEY

1шт.

9

R79853

PULLEY

1шт.

10

NUT

SLOTTED

1шт.

11

COTTER PIN

1шт.

12

19M7786

SCREW

M10 X 30

2шт.

13

T24958

CLIP

2шт.

14

R82429

BRACKET

1шт.

19H2706

CAP SCREW

5/8" X 2", (SUB FOR 19H1734) (NOT ILLUSTRATED)

2шт.

15

R47151

O-RING

1шт.

16

R27270

FITTING

1шт.

17

14M7296

FLANGE NUT

M10

4шт.

18

AE27735

HYDRAULIC HOSE

7/8" X 457 MM (18") X 7/8"

1шт.

19

R82255

GASKET

1шт.

20

R63604

FITTING

2шт.
