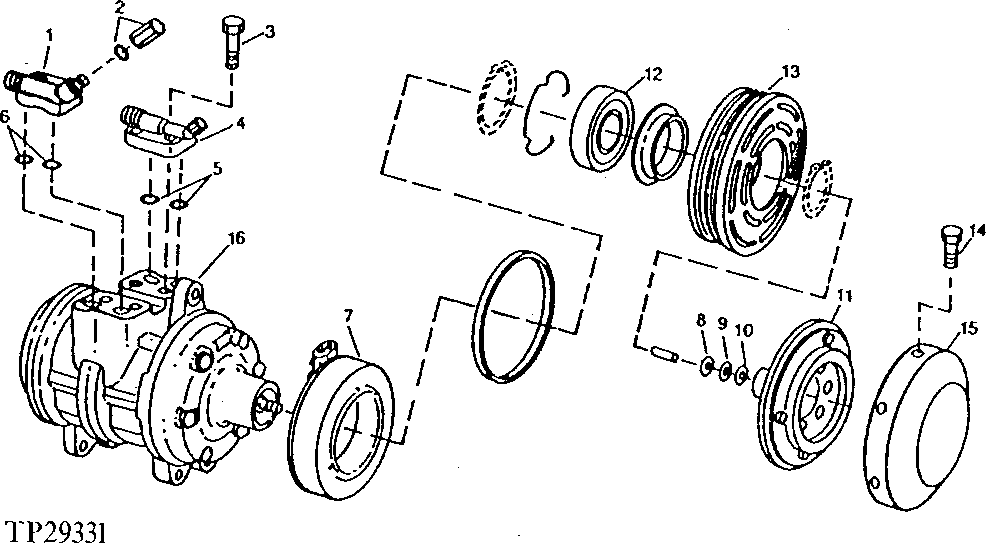

Запчасти John Deere 95 14 - COMPRESSOR CLUTCH AND SERVICE VALVES 1830 - OPERATORS STATION 18

1

RE10981

MANIFOLD

1шт.

2

RE10982

VALVE

1шт.

3

19M8446

SCREW

M8 X 20, (SUB FOR R77398, THIS APPLICATION)

4шт.

4

RE10980

MANIFOLD

1шт.

5

R77401

O-RING

19.800 X 2.400 MM (0.780" X 0.094")

2шт.

6

R77400

PACKING

2шт.

7

AT81299

ELECTRICAL COIL

1шт.

8

R77391

WASHER

8.500 X 12.500 X 0.800 MM (0.335" X 0.492" X 0.031")

ARшт.

9

R77392

SHIM

0.200 MM (0.008")

ARшт.

10

R77393

SHIM

0.100 MM (0.004")

ARшт.

11

RE10974

KIT

1шт.

12

R77394

BALL BEARING

1шт.

13

RE10975

KIT

1шт.

14

R77390

SCREW

6шт.

15

R77389

COVER

1шт.

16

COMPRESSOR

( AT81298 NO LONGER AVAILABLE)

1шт.
