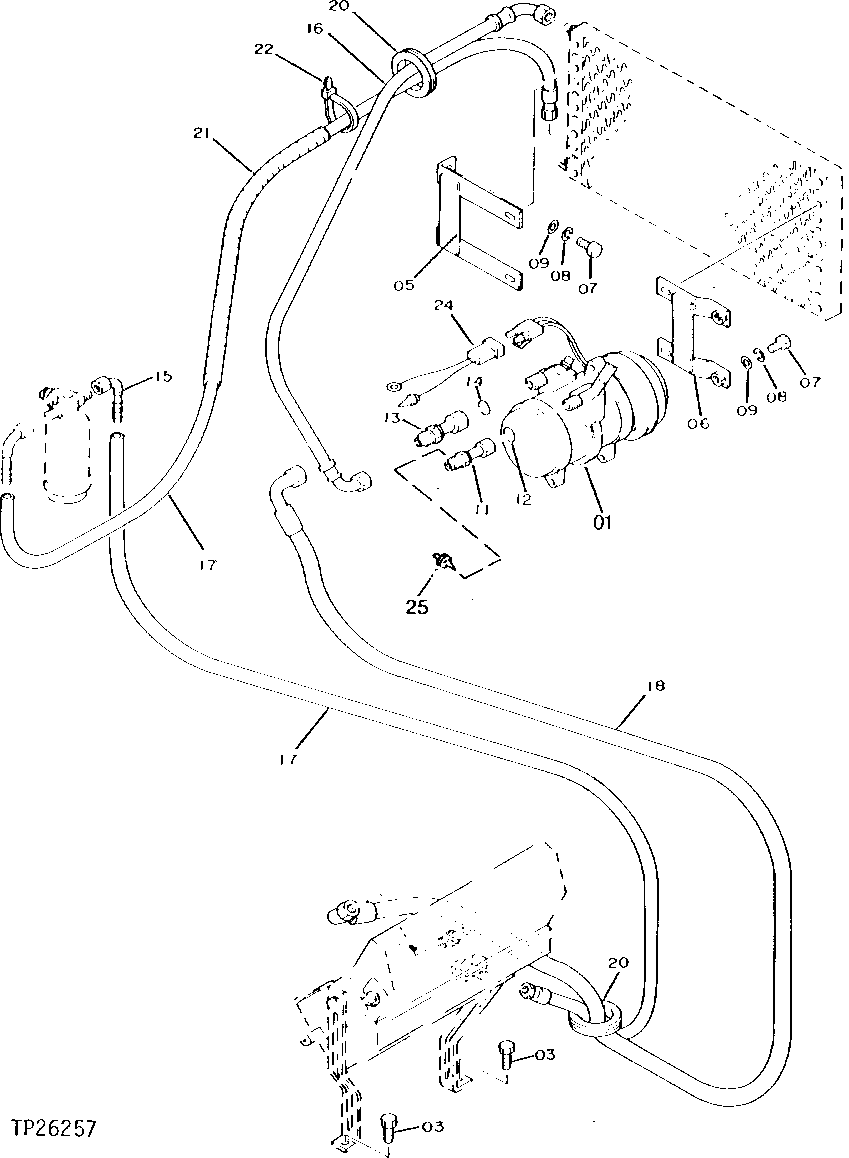

Запчасти John Deere 95 8 - AIR CONDITIONING 1830 - OPERATORS STATION 18

1

TY6744

COMPRESSOR

(REMANUFACTURED) (SUB FOR AT77894)

1шт.

SE501461

COMPRESSOR

(REMANUFACTURED FOR TY6744)

1шт.

3

19M7402

CAP SCREW

M10 X 25

2шт.

5

BRACKET

( 8034733 NO LONGER AVAILABLE) (SUB FOR TH106799)

1шт.

6

9724657

BRACKET

(SUB FOR TH106800)

1шт.

7

19M3142

CAP SCREW

M10 X 18, (SUB FOR TH102164)

4шт.

8

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

9

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

4шт.

11

9732797

ADAPTER FITTING

(SUB FOR TH112012) (SUB FOR TH101360, ALONG WITH TH112013)

1шт.

12

P51212

O-RING

(SUB FOR TH101361)

1шт.

13

9719777

HOSE FITTING

(SUB FOR TH101362)

1шт.

14

R33259

O-RING

(SUB FOR TH101363)

1шт.

15

4121984

ADAPTER FITTING

(SUB FOR TH106901)

1шт.

16

4151294

REFRIGERANT HOSE

(SUB FOR TH106923)

1шт.

17

TH106902

HOSE

2шт.

18

4185155

HOSE

(SUB FOR TH106903)

1шт.

20

4509404

GROMMET

(SUB FOR TH100553)

1шт.

21

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

4шт.

22

H77698

TIE BAND

(SUB FOR T44946)

10шт.

24

4176305

WIRING HARNESS

(SUB FOR TH106904)

1шт.

25

4244612

CHECK VALVE

(SUB FOR TH112013)

1шт.
