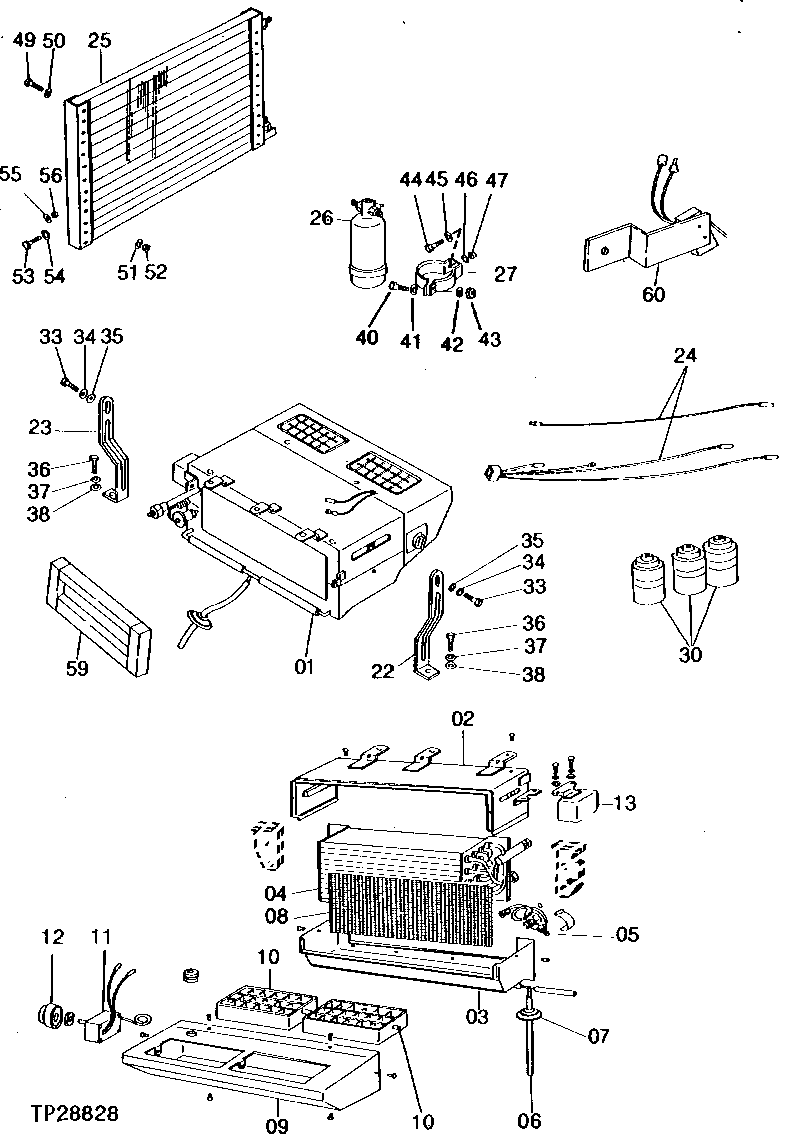

Запчасти John Deere 95 6 - AIR CONDITIONING 1830 - OPERATORS STATION 18

1

AIR CONDITIONER

1шт.

2

0228201

HOUSING

(SUB FOR TH102848)

1шт.

3

0228202

HOUSING

(SUB FOR TH102849)

1шт.

4

0228203

EVAPORATOR

(SUB FOR TH102850)

1шт.

5

0228204

FLOW CONTROL HYD. VALVE

(SUB FOR TH102851)

1шт.

6

0228205

HOSE

(SUB FOR TH102852)

1шт.

7

0228206

ISOLATOR

(SUB FOR TH102853)

1шт.

8

0228207

FILTER

(SUB FOR TH102854)

1шт.

9

0228208

PANEL

(SUB FOR TH102855)

1шт.

10

0228209

GRILLE

(SUB FOR TH102856)

2шт.

11

0228210

THERMOSTAT

(SUB FOR TH102857)

1шт.

12

0228211

KNOB

(SUB FOR TH102858)

1шт.

13

0228212

RELAY

(SUB FOR TH102859)

1шт.

22

0228213

BRACKET

(SUB FOR TH102860)

1шт.

23

0228214

BRACKET

(SUB FOR TH102861)

1шт.

24

0228215

WIRING HARNESS

(SUB FOR TH102862)

1шт.

25

4045674

VAPOR CONDENSER

(SUB FOR TH101342)

1шт.

26

4080644

RECEIVER-DRYER

(SUB FOR TH101344)

1шт.

27

4045673

BRACKET

(SUB FOR TH101345)

2шт.

30

FREON

3шт.

33

19M7923

CAP SCREW

M6 X 12

2шт.

34

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

35

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

2шт.

36

M111025

BOLT

(SUB FOR TH101167)

2шт.

37

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

38

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

2шт.

40

19M7077

CAP SCREW

M6 X 20

2шт.

41

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

2шт.

42

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

43

14M7272

NUT

M6

2шт.

44

19M7932

CAP SCREW

M8 X 16

2шт.

45

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

2шт.

46

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

2шт.

47

14M7273

NUT

M8

2шт.

49

19M7374

CAP SCREW

M6 X 40

8шт.

50

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

8шт.

51

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

8шт.

52

14M7272

NUT

M6

8шт.

53

19M7407

CAP SCREW

M8 X 25

4шт.

54

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

4шт.

55

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

4шт.

56

14M7273

NUT

M8

4шт.

59

4110899

CUSHION

(SUB FOR TH101352)

1шт.

60

4158681

SWITCH

(SUB FOR TH102866)

1шт.
