1 - SEAT BELT

Запчасти John Deere 95 1 - SEAT BELT 1821 - OPERATORS STATION 18

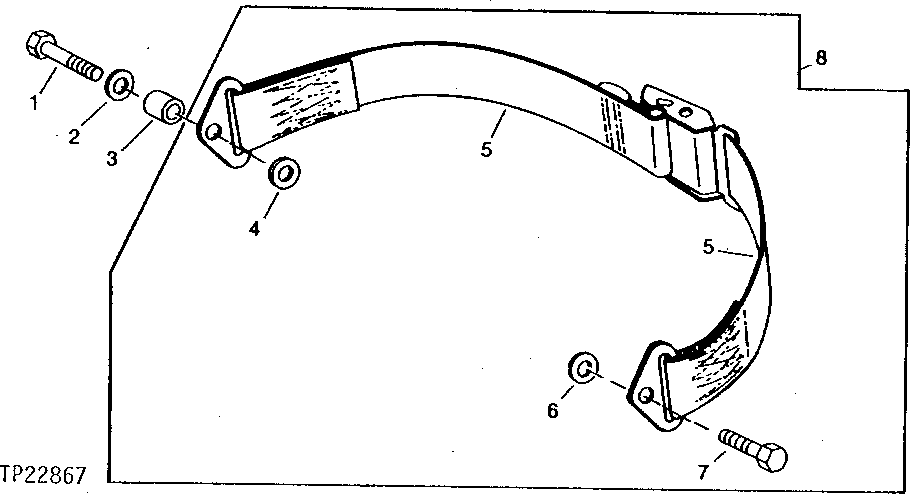

Схема запчастей John Deere 95 - 1 - SEAT BELT 1821 - OPERATORS STATION 18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

19H2633

CAP SCREW

3/8" X 1-1/2"

1шт.

2

24H1305

WASHER

13/32" X 13/16" X 0.065"

1шт.

3

W26301

BUSHING

1шт.

4

24H1304

WASHER

13/32" X 23/32" X 0.120"

2шт.

5

SEAT BELT

(SUB AT37833) (ALSO ORDER W26301, 24H1305, 19H2633 AND (2) 24H1304)

1шт.

6

24H1325

WASHER

15/32" X 59/64" X 0.065"

1шт.

7

R41778

BOLT

1шт.

8

AT37833

SEAT BELT

1шт.
