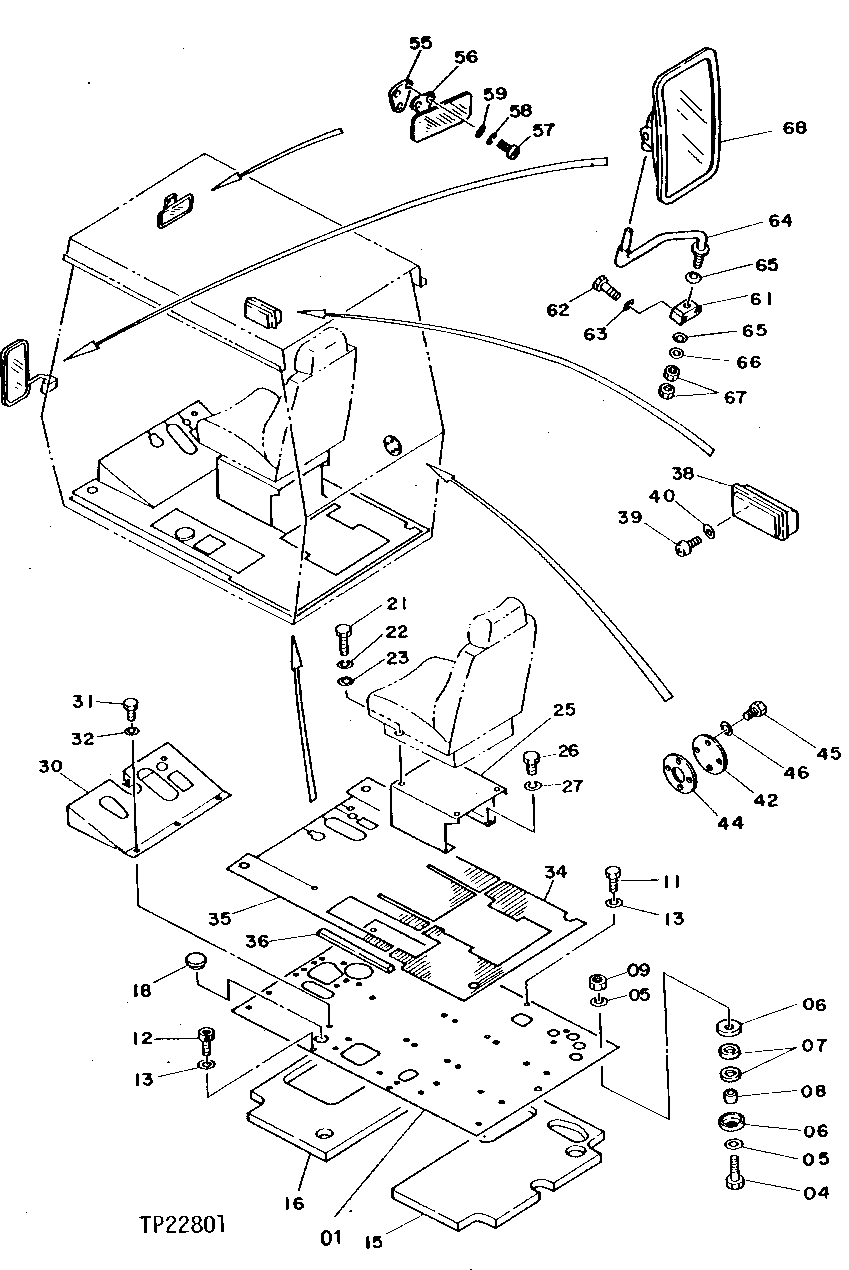

Запчасти John Deere 95 12 - CAB GROUP 1810 - OPERATORS STATION 18

1

7013133

PLATE

(SUB FOR TH104103)

1шт.

4

4136792

BOLT

(SUB FOR TH101104)

4шт.

5

4114405

WASHER

(SUB FOR TH101105)

8шт.

6

4086007

STOP

(SUB FOR TH101101)

8шт.

7

4155132

ISOLATOR

(SUB FOR TH101102)

8шт.

8

4122246

BUSHING

(SUB FOR TH102185)

4шт.

9

14M7328

LOCK NUT

M16

4шт.

11

19M7402

CAP SCREW

M10 X 25

2шт.

12

19M8440

SCREW

M10 X 25, (SUB FOR TH101108)

2шт.

13

4114402

WASHER

(SUB FOR TH102181)

4шт.

15

3027184

INSULATOR

(SUB FOR TH104104)

1шт.

16

3027185

INSULATOR

(SUB FOR TH104105)

1шт.

18

4159003

BUSHING

(SUB FOR TH103421)

1шт.

21

19M7881

SCREW

M8 X 20

4шт.

22

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

4шт.

23

24M7055

WASHER

8.400 X 16 X 1.600 MM, (SUB FOR TH100280)

4шт.

25

8032399

SUPPORT

(SUB FOR TH104107)

1шт.

26

19M7402

CAP SCREW

M10 X 25

4шт.

27

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

30

7015534

FOOTREST

(SUB FOR TH104108)

1шт.

31

19M7938

CAP SCREW

M10 X 20

7шт.

32

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

7шт.

34

3031974

MAT

(SUB FOR TH104109)

1шт.

35

3031975

MAT

(SUB FOR TH104110)

1шт.

36

4149703

ISOLATOR

(SUB FOR TH100329)

1шт.

38

4298985

ASHTRAY

(SUB FOR TH101096)

1шт.

39

21M7278

SCREW

M5 X 10

2шт.

40

24M7027

WASHER

5.300 X 10 X 1 MM, (SUB FOR TH100540)

2шт.

42

4175327

COVER

(SUB FOR TH104111)

1шт.

44

4170938

PACKING

(SUB FOR TH104112)

1шт.

45

19M7938

CAP SCREW

M10 X 20

4шт.

46

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

55

4172367

PLATE

(SUB FOR TH104113)

1шт.

56

965452

REAR VIEW MIRROR

(SUB FOR TH104114)

1шт.

57

21M7267

SCREW

M6 X 20

2шт.

58

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

59

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

2шт.

61

4172171

SUPPORT

(SUB FOR TH104116)

1шт.

62

19M8008

CAP SCREW

M8 X 35

2шт.

63

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

2шт.

64

8032333

ARM

(SUB FOR TH104117)

1шт.

65

4172172

WASHER

(SUB FOR TH104118)

2шт.

66

24M7047

WASHER

13 X 24 X 2.500 MM

1шт.

67

14M7275

NUT

M12

2шт.

68

4317906

REAR VIEW MIRROR

(SUB FOR 4335342 AND 4165676 AND TH104119) ( TH104119 NO LONGER AVAILABLE)

1шт.

4420724

REAR VIEW MIRROR

(SUB FOR AT185207)

1шт.
